2. Press the NO.1 key of the

Input channel for 2 seconds.

3. Press the ALL key on the

front panel, and then press the

OFF key to cancel all the

settings.

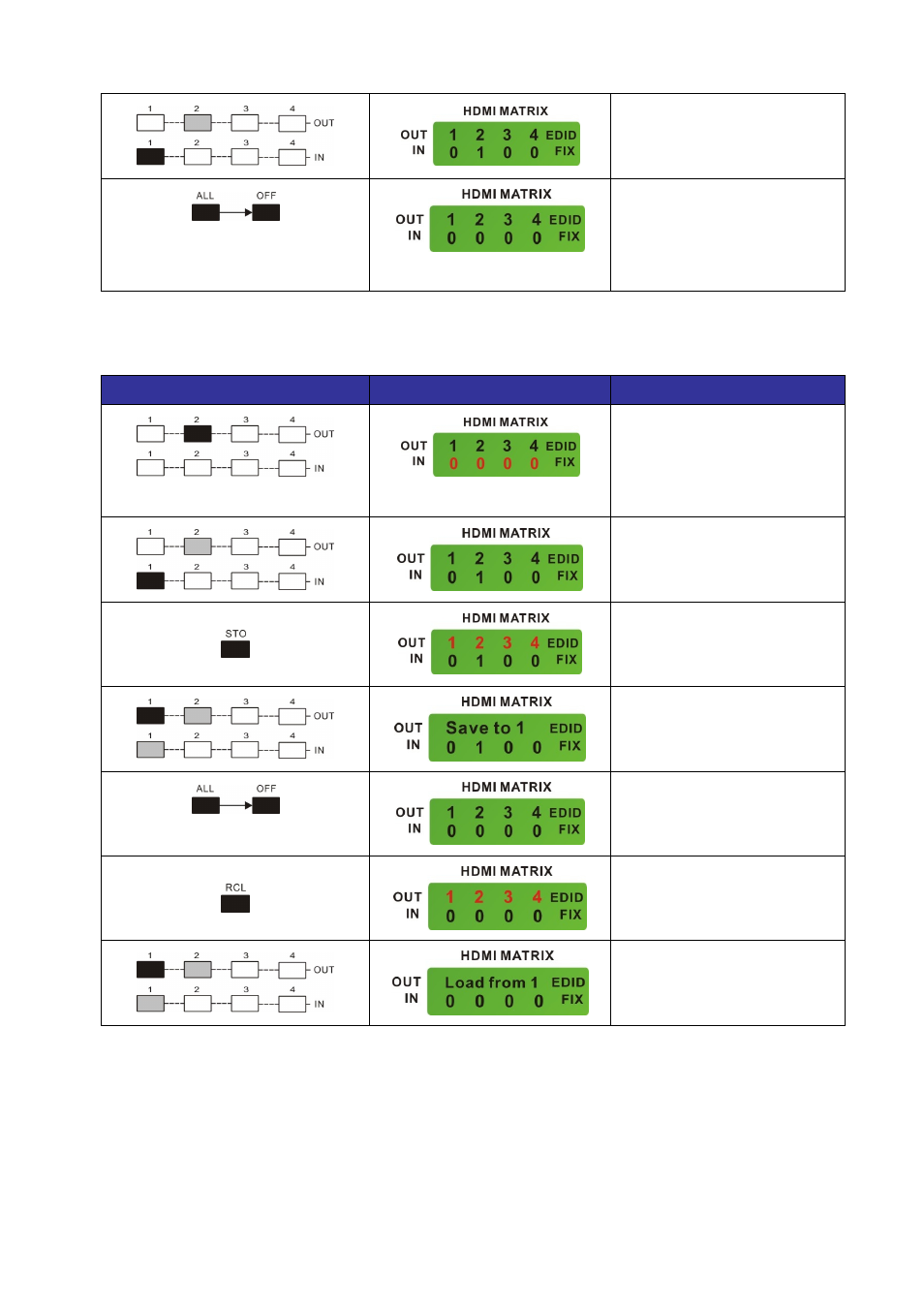

Example 4: “STO” and “RCL” functions.

Key

LCD Display

Operation

1. Press the NO.2 key of the

output channel for 2 seconds,

then the input channels will

begin to flicker.

2. Press the NO.1 key of the

Input channel for 2 seconds.

3. Press the STO key on the

front panel, then the OUT

channels will begin to flicker.

4. Press the NO.1 key of the

output channel to save the

setting in the memory #1.

5. Press the ALL key on the

front panel, and then press the

OFF key to cancel the setting.

6. Press the RCL key on the

front panel, then the OUT

channels will begin to flicker.

7. Press the NO.1 key of the

output channel to Load the

previously saving.
