Speaker B connections
The Speaker B connections on the back of the amplifier allow for a
second set of speakers to be used (ie speakers located in another
room). The Speaker B button on the front panel allows this second set
of speakers to be switched on and off.
Note: When using two pairs of speakers, use speakers with a nominal
impedance of between 6-8 ohms each.
Pre-O Out connections
The Pre-Out sockets are for connecting to the input sockets of a power

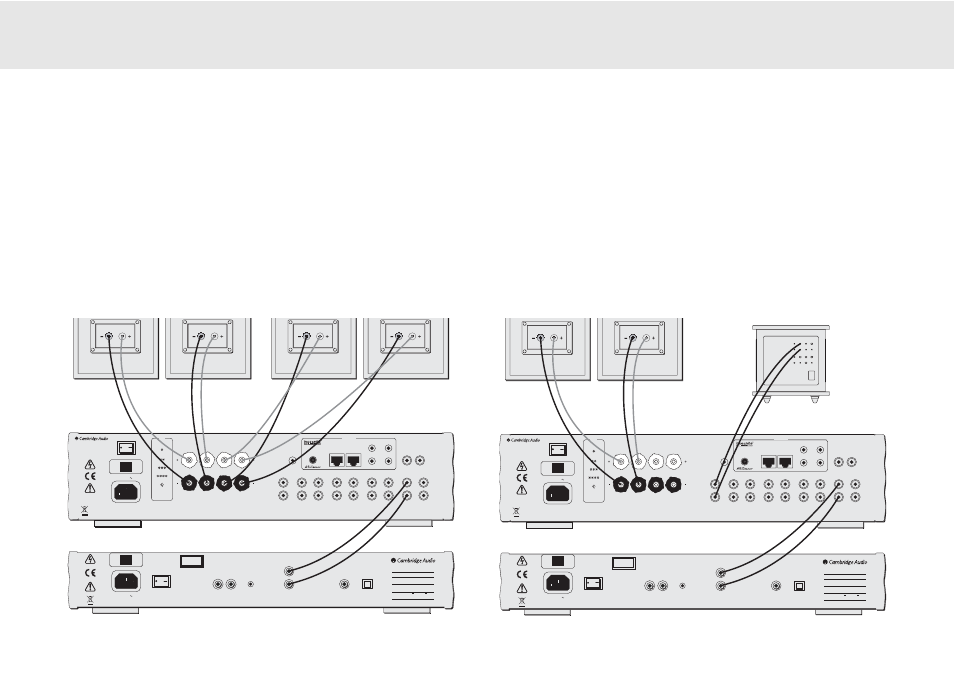

amplifier or active subwoofer. The diagram below shows how to connect
the amplifier to an active subwoofer via the Line In inputs on the
subwoofer.
