8 Azur integrated amplifier
When designing our amplifiers we have tried to include features that
allow you to connect your system in various ways. The inclusion of
features such as Pre-Out and Speaker B connections mean that you can
flexibly configure your system depending on your requirements. The
following diagrams are designed to make connection easy.
Basic connection

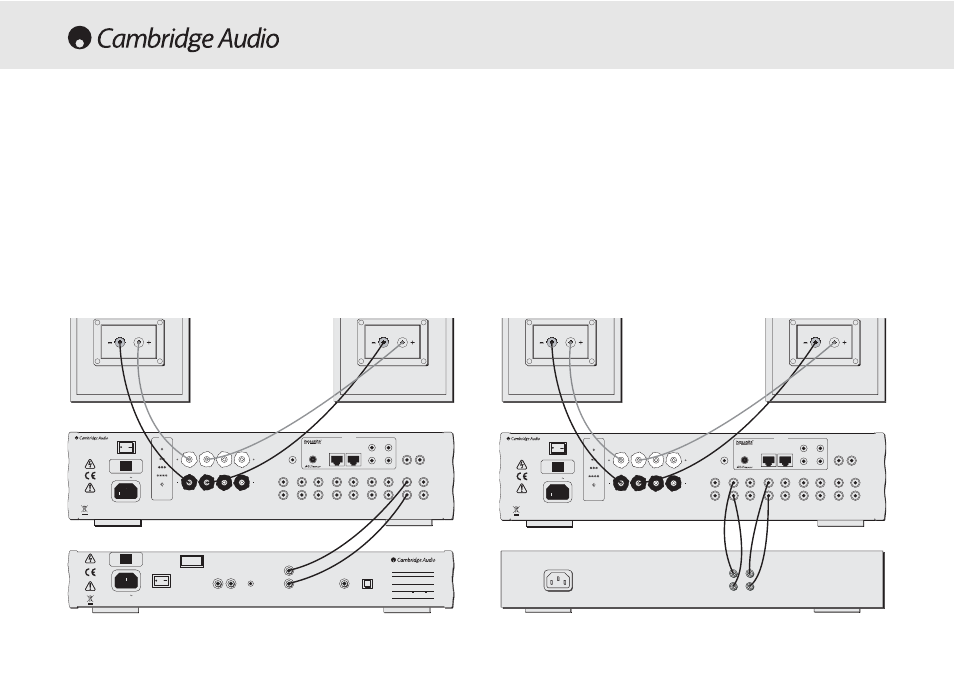

The diagram below shows the basic connection of your amplifier to a CD
player and a pair of loudspeakers.
Tape connection
The diagram below shows how to connect the amplifier to a tape
recorder or other source with a record and monitor connection.
Please note that either of the tape loop outputs can be used (as they are
both the same signal in parallel).
