Cambridge Audio 540A - Manual (Page 13)

540A/640A V2.0 Integrated amplifier
Azur integrated amplifier 13

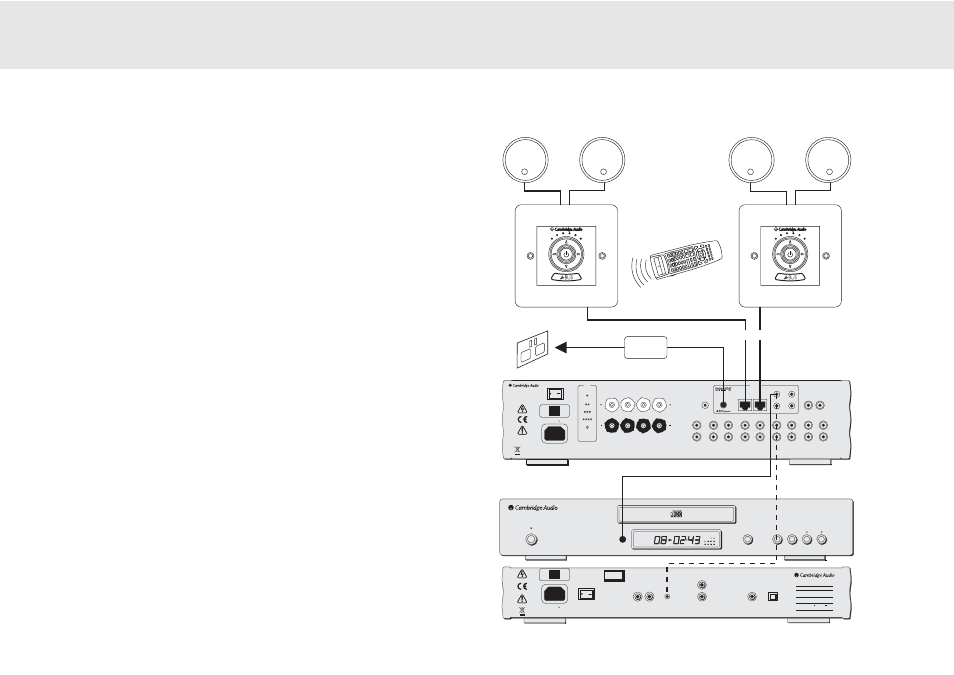

MULTI-ROOM
The Azur V2.0 amplifiers feature Incognito Ready TM / A-BUS TM Ready
outputs, allowing multi-room capability. One or two amplified keypads
(and an external PSU power supply) can be plugged into the amplifier
(using Cat5/5e cable and RJ45 plugs) to provide multi-room audio in
one or two secondary rooms or zones. The keypads are powered by an
external PSU via Cat5/5e cables and no mains connection is required in
the secondary rooms.
The keypads operate independently of the amplifier in terms of
volume/bass/treble etc and can be independently turned on and off,
however they can only listen to the same source as selected on the
amplifier.
A-BUS is a standard that allows compatibility between different
manufacturers equipment, so A-BUS compatible keypads from other
manufacturers can be used. If used with our own Incognito KP10
keypads, there are some extra features such as the ability to change
source on the amplifier from the keypad.
To allow control of your source equipment from the remote rooms an IR
emitter (IR10) is plugged into one of the IR outputs on the rear of the
unit and then attached over the IR window of the source unit.
Alternatively, on our own products that feature IR emitter Inputs, a mini-
jack to mini-jack lead can be used. Commands received by the keypads
can now be sent back to the source equipment via the amplifier. It is
then possible to control the source equipment from the remote rooms by
using the source equipment's own remote controls or through a learning
remote. The Incogntio LR10 can fully control the keypads, “learn” the
source's remote controls and change source input on the amplifier etc.
For full details on the Incognito multi-room system please contact your
local Cambridge Audio dealer.
Impedance 4 - 8 ohms Loudspeaker Terminals
Important Please ensure that loudspeaker terminals are fully tightened Veuillez s'assurer que les bornes de l'enceinte sont entièrement serrées
Impedance 4 - 8 ohms
Right Left Right Left
Left
B A
Left Right Right B A
IR1
IR2 IR4
IR3
Keypad 1 Keypad 2
Pre-Out Tape In Rec Out 1 Rec Out 2 AV / MD DVD Tuner / DAB CD Aux
Pre-Out Tape In Rec Out 1 Rec Out 2 AV / MD DVD Tuner / D AB CD Aux
Right
Left
Right
Left Power AC
Max Power Consumption : 700W Off
Power
Mains Voltage Selector Switch (50 / 60Hz)
In Out
Control Bus
Caution Risk of electric shock. Do not open. Avis Risque de choc electrique. Ne pas ouvrir. Achtung Vorm öffnen des gërates. Netzstecker ziehen.
IR Emitter
In
PSU
In
azur 640A Integrated Amplifier V2.0
Designed in London, England www.cambridge-audio.com
Manufactured in an ISO9002 approved facility
Fault requiring service (DC)
Over temperature
Temporary overload
Loudspeaker short
Protection LED indicators:
Please refer to your User's Manual for more information
CAP5
Clipping
Vol Auto
On
Multi-Room
International Patent Pending LeisureTech Electronics Pty Ltd
azur 640C
Compact Disc Player
Standby / On Stop Play Pause Open
Close Skip
Scan
Line Output
Line Output
Right Right
Left Left
Power AC
Class 1 Laser Product Luokan 1 Laserplaite
Klass 1 Laserapparat
Mains Voltage Selector Switch (50 / 60Hz)
On Off Power
Risk of electric shock
Do not open Caution
Risque de choc electrique
Ne pas ouvrir Avis
Vorm offnen des gerates
Netzstecker ziehen Achtung
azur 640C Compact Disc Player V2.0
Max Power Consumption : 18W
www.cambridge-audio.com
Designed in London, England
Manufactured in an ISO9002 approved facility
IR Emitter
In In Out
Control Bus
S/P DIF
Co-axial Toslink
Optical
Digital Outputs
PS10
LR10
Cat5/5e
IR10 Mini-jjack lead
Speakers (eg SS10)
connected via
speaker cable
KP10-EEU keypad
