Front Panel

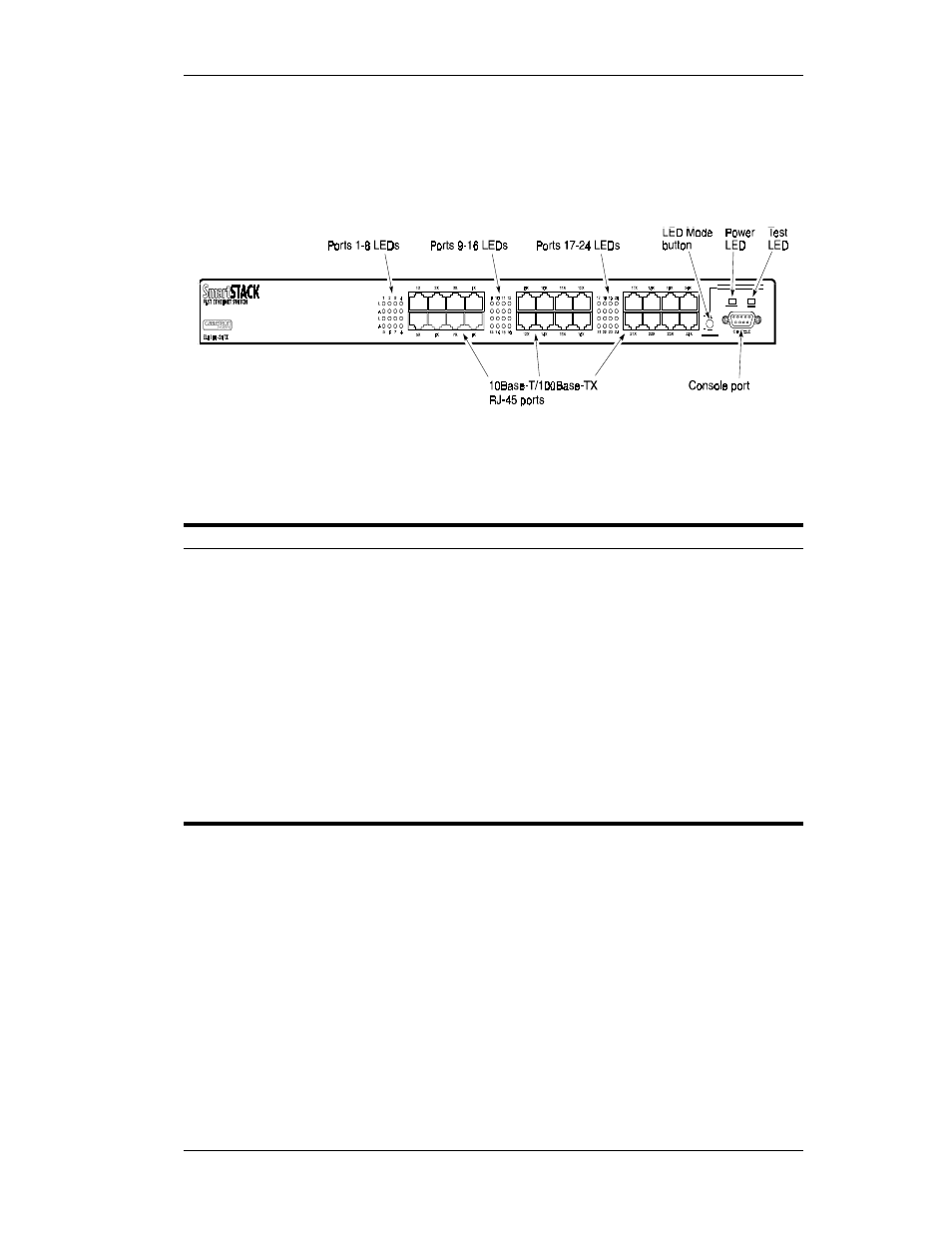

Figure 1-1 shows the front panel of the ELS100-24TX. Table 1-1 defines
the ELS100-24TX front panel components.
Figure 1-1. ELS100-24TX Front Panel
Table 1-1. Front Panel Components
Name Function
Ports 1-24 LEDs Indicates Link, Activity, Speed and Duplex information (see
Table 1-2 for details).
10Base-T/100Base-TX
RJ-45 ports (Ports 1-24) RJ-45 connectors numerically identified based on the
specific product configuration. All ports are wired MDI-X.
LED mode button Button used to switch port LEDs between Link/Activity mode
and 100M/Full Duplex mode.
Power LED Lights steady green to indicate power is supplied to the
switch. Off indicates no power is supplied to the switch.
Test LED Lights steady green after a reset and remains on until
successful completion of power-on self tests. Off indicates a
successful completion of the power-on self tests.
Console port Female DB-9 connector configured as a null modem connec-
tion for serial out-of-band management using the console
menus.
