Cautions on wiring for each unit, Contact protection, Part names and functions – KEYENCE KV Series User Manual
Page 3: Terminal layout drawings and i/o circuit diagrams, Kv series basic unit-im_e, Wiring procedures for basic units, Wiring for an ac type basic unit, Wiring for a dc type basic unit, Cautions on wiring for i/o units, Terminal

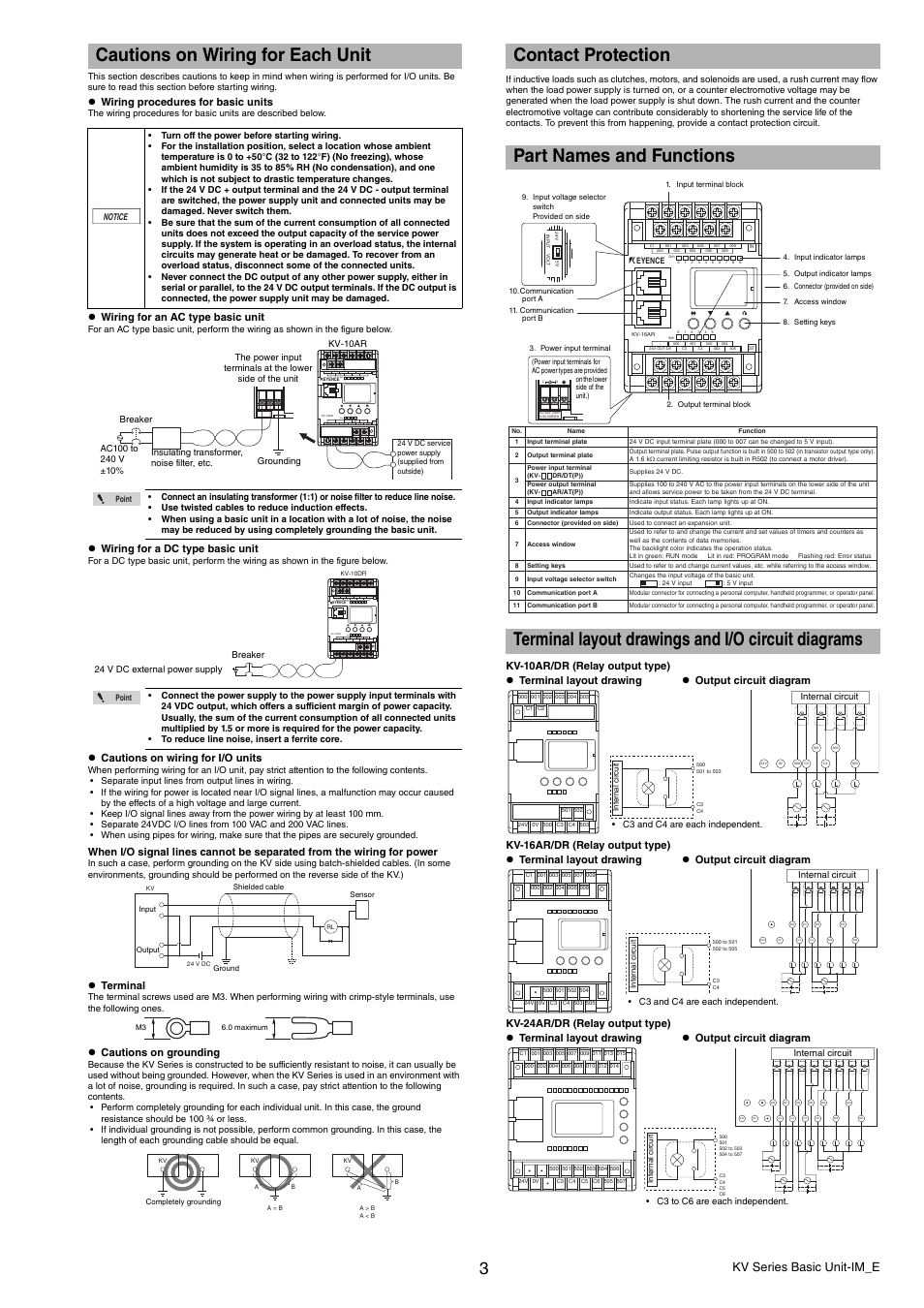

Cautions on wiring for each unit, Contact protection, Part names and functions | Terminal layout drawings and i/o circuit diagrams, Kv series basic unit-im_e, Wiring procedures for basic units, Wiring for an ac type basic unit, Wiring for a dc type basic unit, Cautions on wiring for i/o units, Terminal | KEYENCE KV Series User Manual | Page 3 / 6 See also other documents in the category KEYENCE Sensors:
