5

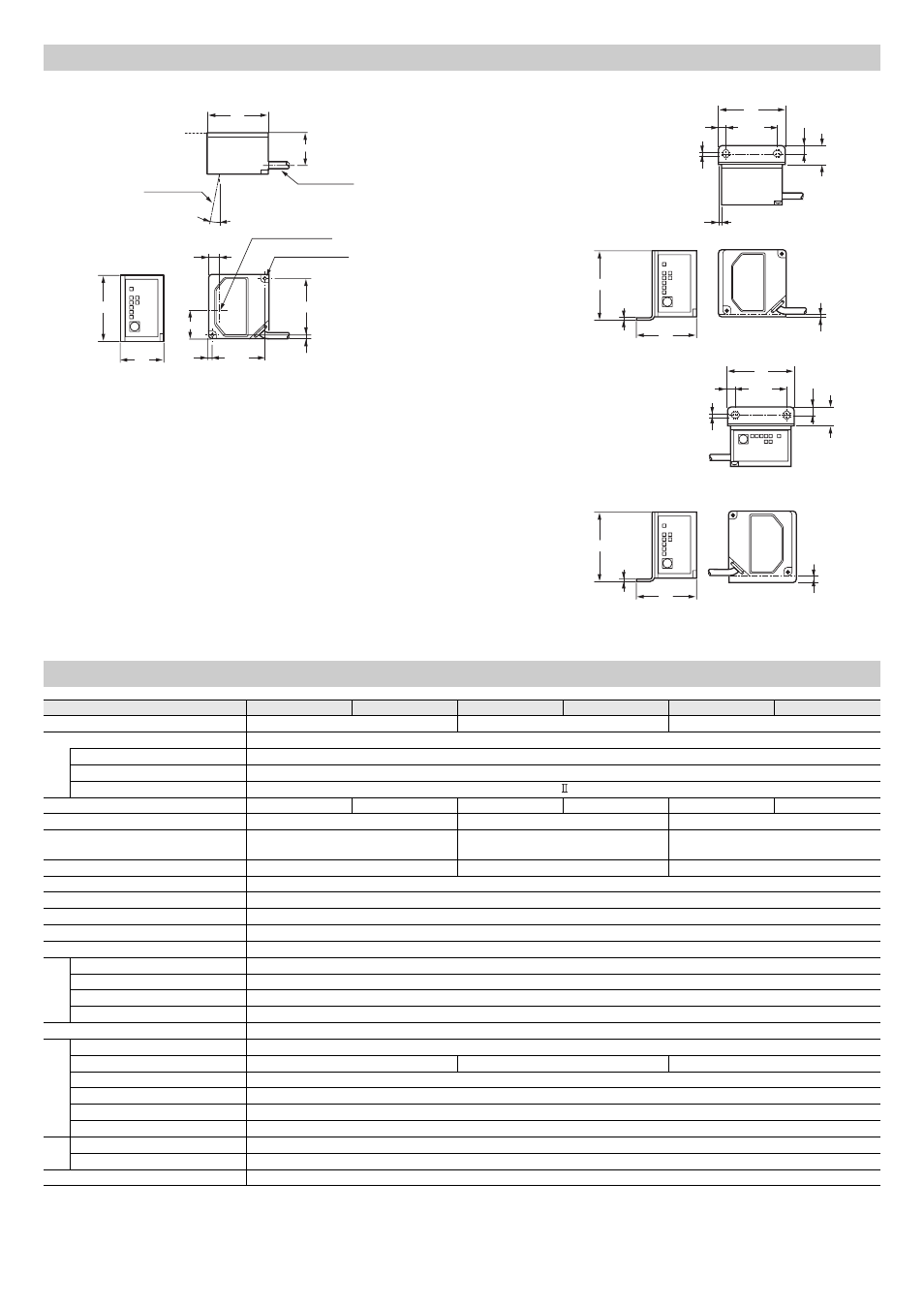

Dimensions
„ BL-700 Series
(Unit : mm)
„BL-700 Series (with bracket)
53
28.5
26.5
3.25 46.5
51.5
3.25
9.9
58
36
(A)
(*)
10°
φ5.8
2 - φ3.5
(Mounting hole)
Laser beam
Laser transmitter
Cable length
1.8m
*The laser radiation angle is 10 °±0.5° to the vertical axis from surface (A).
58
44.5 6
6.5
16
3
2.5
2
60
52 2.5
z For vertical scan
Use M4 screws for
installation.
58
44.5 6
6.5
16
3
7
60
52 2.5
z For horizontal scan
Use M4 screws for
installation.
Specifications
*1 The scan bar width represents the range of scannable fine bar of
a bar code (narrow bar width).
*2 The scanning label width includes the bar code margin (quiet
zone).
Model BL-700 BL-701 BL-740 BL-741 BL-780 BL-781
Type High resolution type Mid distance type Long distance type
Light source Visible semiconductor laser (Wavelength: 655nm)
Output 100 P W
Pulse duration 99.5 P s (IEC60825-1), 50 P s (FDA (CDRH) Part 1040.10)
Laser Class Class 2 Laser Product (IEC60825-1), Class Laser Product (FDA (CDRH) Part 1040.10)
Scan type Single Raster Single Raster Single Raster
Scan distance 160 to 370mm (at 0.5mm narrow width) 150 to 750mm (at 1.0mm narrow width) 200 to 1200mm (at 2.0mm narrow width)
Scanning bar width *1
0.15 to 1.0mm
* 0.19 to 1.0mm for CODE 93 and 128
0.25 to 2.0mm
* 0.33 to 2.0mm for CODE 93, 128 and EAN
0.32 to 2.0mm
* 0.5 to 2.0mm for CODE 93, 128 and EAN
Max. scanning label width *2 310mm (at 335mm scan distance) 600mm (at 680mm scan distance) 1010mm (at 1080mm scan distance)
PCS Min. 0.6 (white reflection rate of 75% or more)
Scan speed 700 scan/sec
Applicable code CODE39, ITF, INDUSTRIAL2 of 5, COOP2 of 5, CODABAR, CODE128, CODE93, EAN/UPC (A·E)
Scanning number of digits Max. 32 digits *3
Timing input No-voltage input (with, without contact) *TTL input may also be used.
Output type NPN open collector
Rated load 24VDC, 30mA
Leak current at OFF Max. 0.1mA
Residual voltage at ON Max. 0.5V
Serial interface RS-232C
Enclosure rating IP65
Operating ambient illumination Sun light : 10000lx Glow lamp : 6000lx Sun light : 10000lx Glow lamp : 4000lx Sun light : 10000lx Glow lamp : 3000lx
Ambient temperature 0 to 40 q C (32 to 104 q F), No freezing
Relative humidity 35 to 85%, No condensation
Ambient atmosphere Free from dust and corrosive gas
Vibration resistance 2 hours each in X, Y and Z directions at 10 to 55 Hz
Power supply voltage 5DVC±5%
Current consumption Max. 510mA
Weight Approx. 300g (including cable)
