KEYENCE IG Series - Manual (Page 4)

4

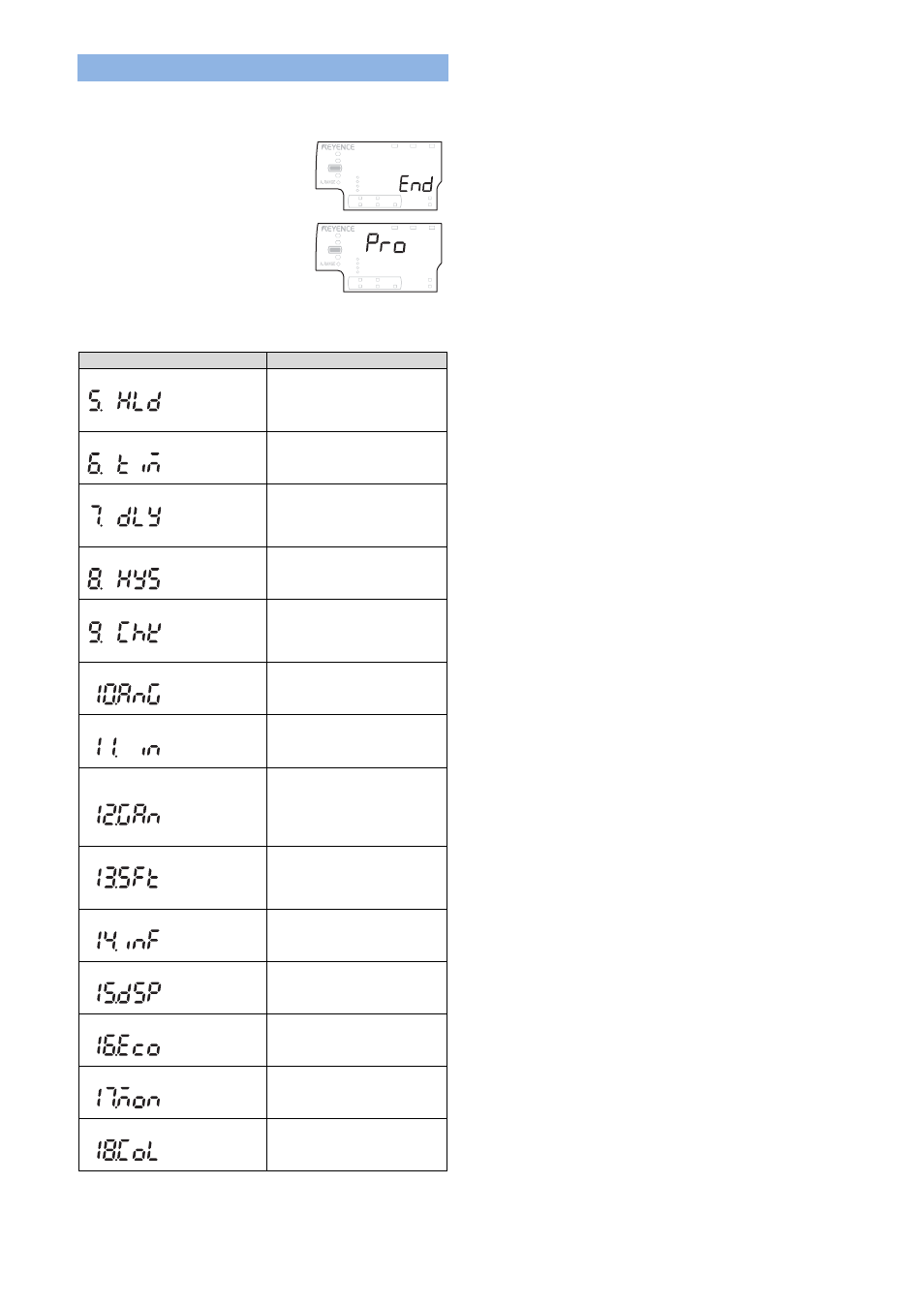

Advanced setting mode
 How to enter the Advanced setting mode
1. Press the [MODE] button for at least 2 seconds.
2. Press the [MODE] or left/right arrow
button until the sub display will show
“End”.
3. Press the up/down arrow button. The
main display will show “Pro”.
4. Press the [MODE] or left/right arrow button and select the function
number.
Function Explanation
05 Hold function Set how to hold the value from
[Sample], [Peak], [Bottom],
[Peak to peak], [Auto peak] and
[Bottom peak].
06 Timing input Set how the timing input for the
hold function is used from
[Level] and [Edge].
07 Delay timer Set the delay timer for the
judgment output from [Off],
[ON-delay], [OFF-delay] and
[1-shot].
08 Hysteresis Set the hysteresis for the
judgment value.
09 Edge check function Set the Edge check function,
which will tell you if the number
of edges inside the
measurement range is correct.
10 Analog output scaling Set how the analog voltage or
current should output, related to
the value.
11 External input Assign each input function to
the 4 external inputs.
12 Memorizing the standard
waveform
Set if the standard waveform
has to be memorized to the
EEPROM or not, when the
registration was done by the
external input.
13 Memorizing the zero shift Set if the shift target value has
to be memorized to the
EEPROM or not, when the zero
shift was input.
14 Interference prevention Set to use the interference
prevention function.
15 Display digit Set the number of digits from
[Default], [0.001], [0.01], [0.1]
and [1].
16 Power saving Set to use the power saving
function.
17 Position monitor Set the lighting conditions for
the light on the sensor head.
18 Display color Set the color of the judgment
light, and the color of the main
display.
