3 E DL-PN1_IM

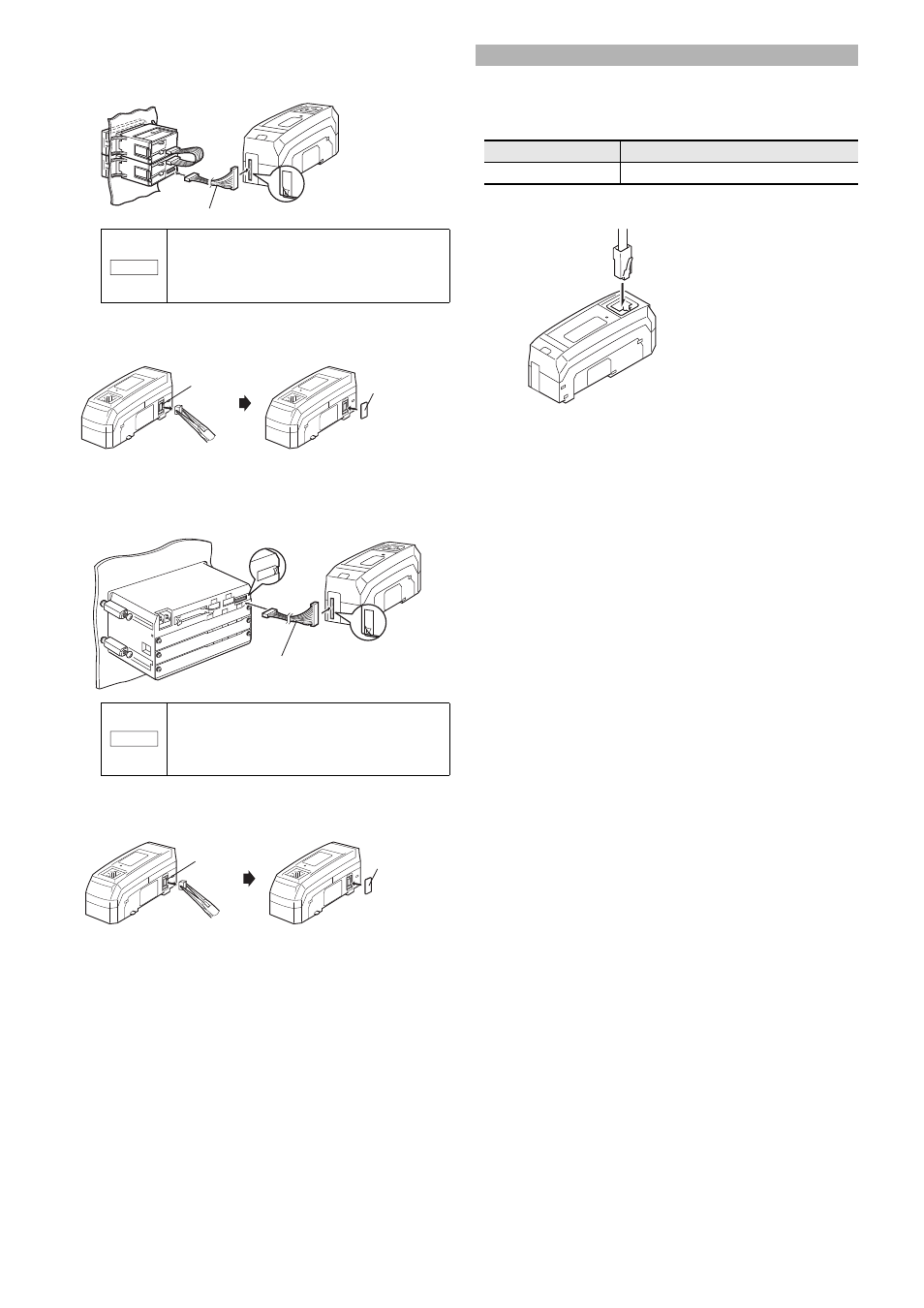

 Connecting to a panel mounting type sensor amplifier
1
Connect the sensor amplifier to the DL-PN1 using the optional
expansion cable (OP-35361).
2
Detach the sensor amplifier connector (for DIN rail mounting type)
of the DL-PN1 with pliers and mount the attached expansion
connector sticker.
 Connecting to a large display type sensor amplifier
1
Connect the sensor amplifier to the DL-PN1 using the optional
expansion cable (OP-35361).
2
Detach the sensor amplifier connector (for DIN rail mounting type)
of the DL-PN1 with pliers and mount the attached expansion
connector sticker.
Use the following procedure to connect the DL-PN1 to the PROFINET.
 Compatible cables
An STP (shielded twisted-pair) cable or UTP (unshielded twisted-pair) cable is used to
connect the DL-PN1 to the Ethernet.
 Connecting the cable
Connect the network cable to the RJ-45 connector.
• Turn OFF the power before connecting the expansion
cable and connect securely. Diagonal or otherwise
improper insertion may damage the equipment.
• Inserting or pulling the cable when the power is turned
ON may damage the equipment.
• Turn OFF the power before connecting the expansion
cable and connect securely. Diagonal or otherwise
improper insertion may damage the equipment.
• Inserting or pulling the cable when the power is turned
ON may damage the equipment.
Detach the protection sticker
Expansion cable (cable length: 300 mm)
NOTICE
Sensor amplifier connector
(for DIN rail mounting type)
Expansion
connector sticker
Detach the
protection sticker
Detach the
protection
sticker
Expansion cable (cable length:300 mm)
NOTICE
Sensor amplifier connector
(for DIN rail mounting type)
Expansion
connector sticker
Connecting the PROFINET
Ethernet Compatible cables
100BASE-TX STP cable or Category 5 or higher UTP cable
