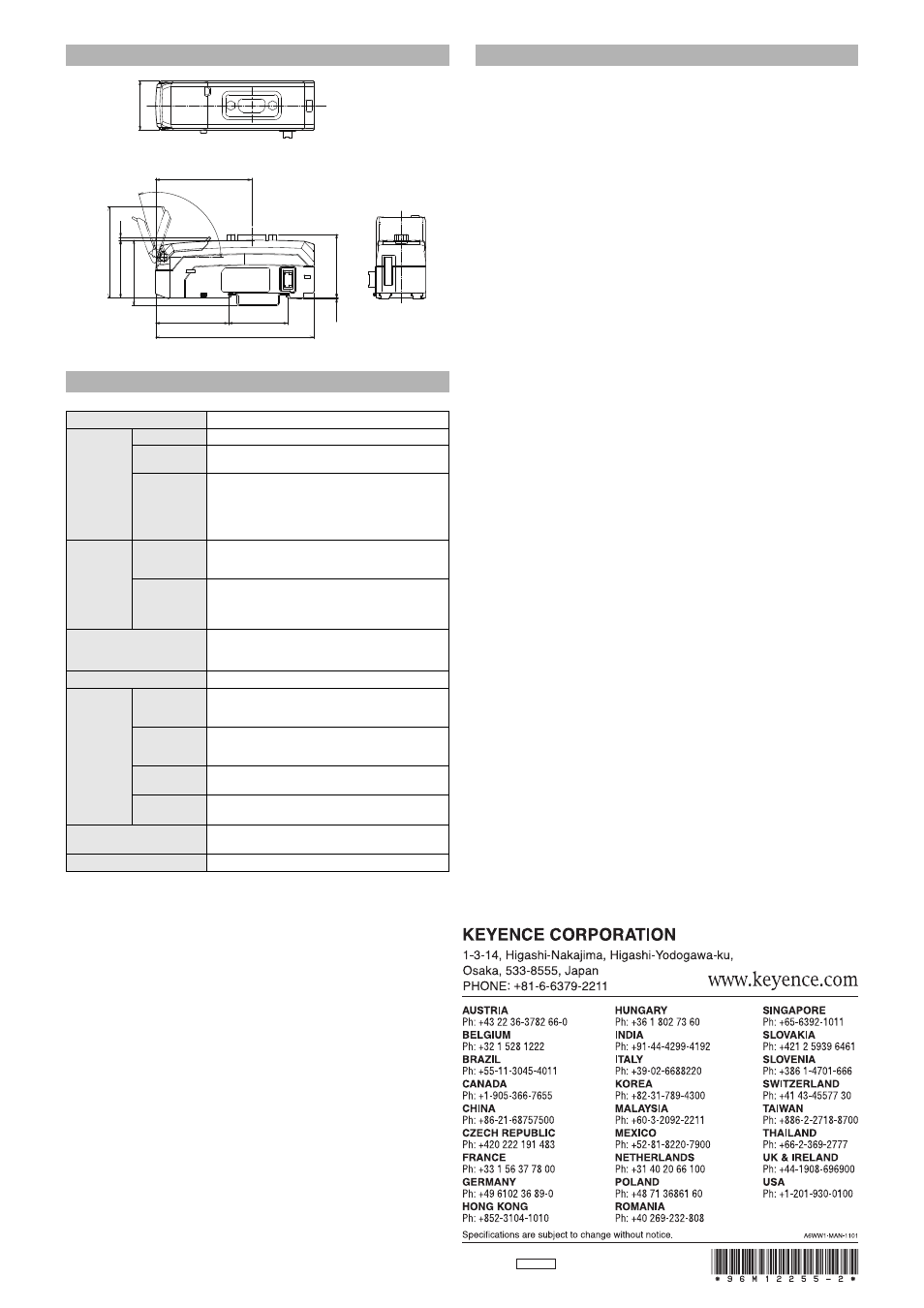

Dimensions
Specifications
Model DL-PD1
PROFIBUS
DP
specifications
Device type DP-V1 Slave (D-sub 9 pin, Number of the ports: 1)
Communication
speed
9.6 kbit/s to 12 Mbit/s
Cable length
9.6 / 19.2 / 45.45 / 93.75 kbit/s : 1200 m
187.5 kbit/s : 1000 m
500 kbit/s : 400 m
1.5 Mbit/s : 200 m
3 / 6 / 12 Mbit/s : 100 m
Sensor
amplifier
connection
specifications
Connectable
sensor
amplifiers
Sensor amplifiers with D-bus support *1
Number of
connectable
sensor amplifier
units
15 units max. *2
Power voltage
20 to 30 VDC, including ripple (p-p) 10%
(This voltage is supplied from the connected sensor
amplifier.)
Power consumption 1600 mW or less (65 mA max. at 24 V)
Environmental
resistance
Operating
surrounding air
temperature
-20 to +55°C (no freezing)
Operating
surrounding air
humidity
35 to 85% RH (no condensation)
Vibration
resistance IEC60068-2-6 2G (10 to 500 Hz, 2 hours each in X, Y, Z
direction)
Impact
resistance IEC60068-2-27 30G (11 ms, 3 times each in X, Y, Z
direction)
Materials
Main unit case and dust cover: Polycarbonate
PROFIBUS connector: Steel – Nickel plating
Weight (including connectors) Approx. 65 g
38.1
When co
v
er is opened :
54.7 max.
105° max.
57.4
(0.2) 35.4 43.5
94.5
(39.0)
34.6
1.8
29.4
Unit : mm
