3 E DL-PD1_IM

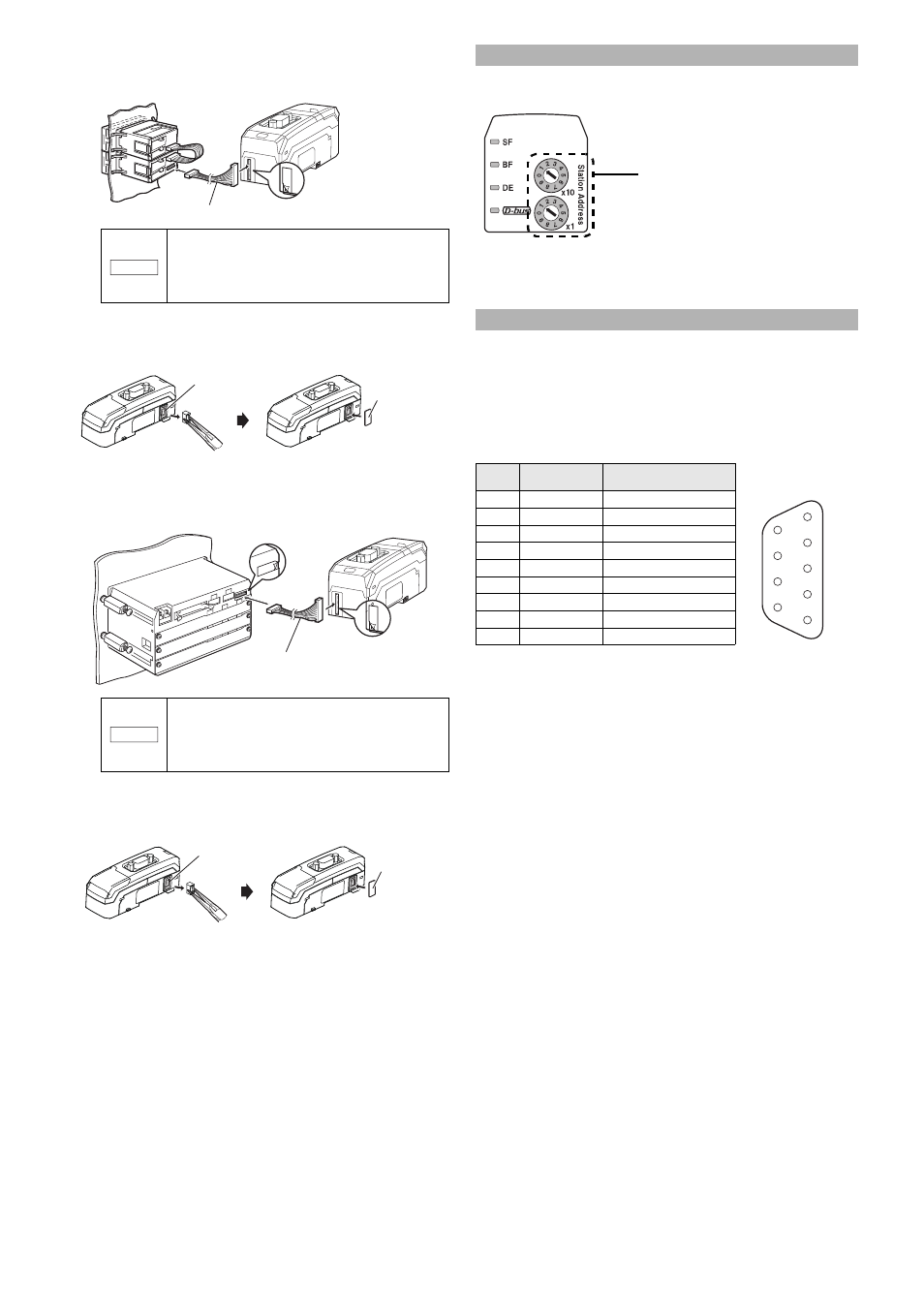

 Connecting to a panel mounting type sensor amplifier
1
Connect the sensor amplifier to the DL-PD1 using the optional
expansion cable (OP-35361).
2
Detach the sensor amplifier connector (for DIN rail mounting type)
of the DL-PD1 with pliers and mount the attached expansion
connector sticker.
 Connecting to a large display type sensor amplifier
1
Connect the sensor amplifier to the DL-PD1 using the optional
expansion cable (OP-35361).
2
Detach the sensor amplifier connector (for DIN rail mounting type)
of the DL-PD1 with pliers and mount the attached expansion
connector sticker.
Set the station address of the DL-PD1 with the rotary switch at the top of the DL-PD1.
The station address set here must be the same as the one set through the configuration
software of the PROFIBUS DP.
The station address of the DL-PD1 cannot be set to 00, 100, or more.
Set the station address before the DL-PD1 is powered on. When the station address is
changed during operations of the DL-PD1, such change is reflected after power has been
restored to the DL-PD1.
Use the following procedure to connect the DL-PD1 to the PROFIBUS.
 Usable cable
Use the shielded twisted pair cable, which is compliant with the PROFIBUS specifications.
 Wiring the PROFIBUS Connector
For the PROFIBUS connector of the DL-PD1, the D-sub9 pin connector (socket) is used.
Pin arrangement of the connector is as below.
• Turn OFF the power before connecting the expansion
cable and connect securely. Diagonal or otherwise
improper insertion may damage the equipment.
• Inserting or pulling the cable when the power is turned
ON may damage the equipment.
• Turn OFF the power before connecting the expansion
cable and connect securely. Diagonal or otherwise
improper insertion may damage the equipment.
• Inserting or pulling the cable when the power is turned
ON may damage the equipment.
Detach the protection sticker
Expansion cable (cable length: 300 mm)
NOTICE
Sensor amplifier connector
(for DIN rail mounting type)
Expansion
connector sticker
Detach the
protection sticker
Detach the
protection
sticker
Expansion cable (cable length:300 mm)
NOTICE
Sensor amplifier connector
(for DIN rail mounting type)
Expansion
connector sticker
Setting the Station Address
Connecting the PROFIBUS
Pin
number
Signal name Description
1 – –
2 – –
3 RxD/TxD-P Communication wire B
4 RTS Request to send
5 M5V2 Standard data unit (Station)
6 P5V2 Power supply: Plus (Station)
7 – –
8 RxD/TxD-N Communication wire A
9 – –
Station address setting switch
Setting range: 01 to 99
Default value: 11
5
1
2
3
4
9
8
7
6
