6 E CZ-V21A(P)/V22A(P)-IM

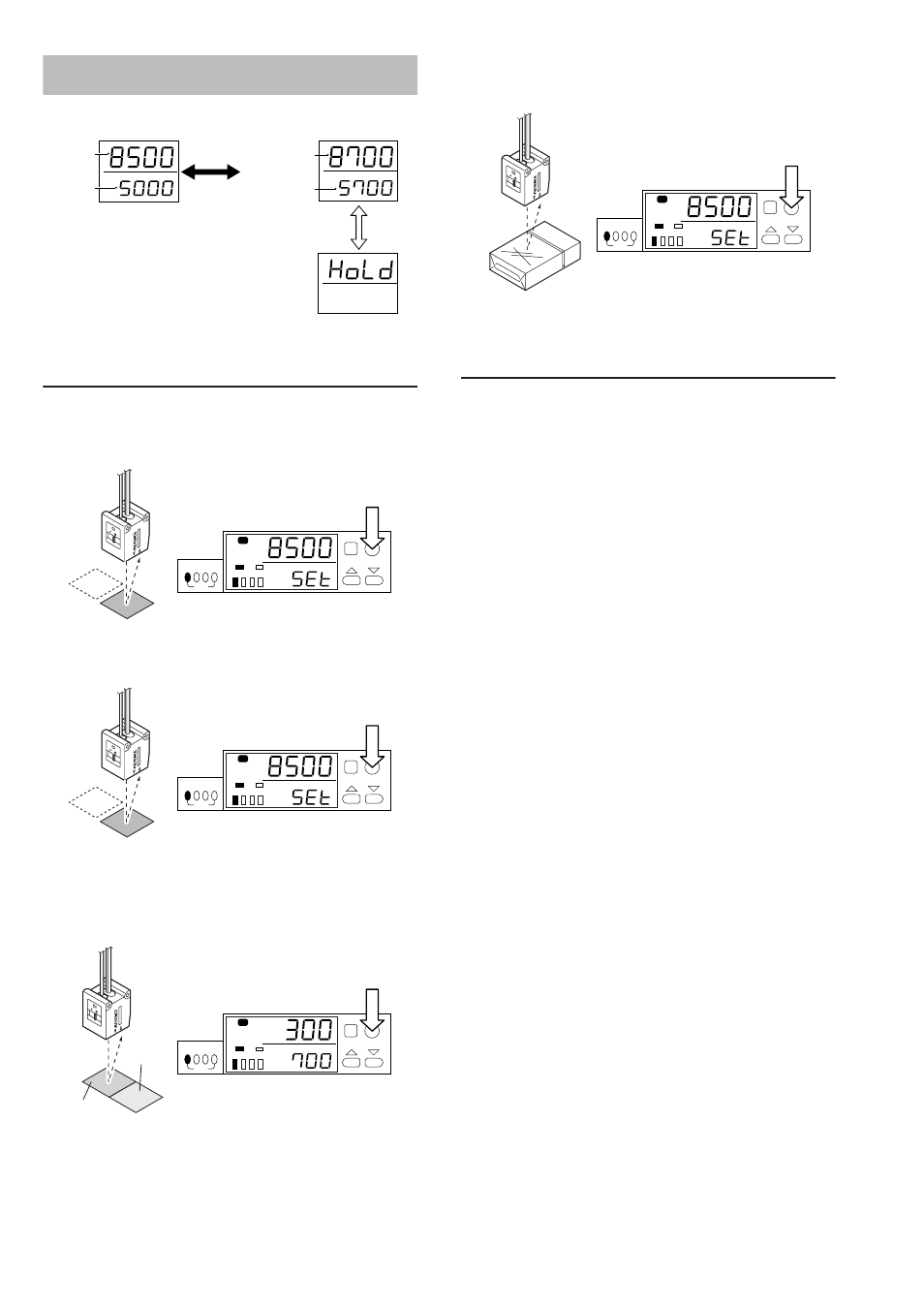

OPERATION PROCEDURE FOR USING THE
LUSTER DETECTION MODE (CZ-H72)
■ Description of indication
Setting a sensitivity
■ 2-point calibration (basic)
1
Place a lustrous portion of the target onto the focus position of the beam
spot emitted from the sensor. Then press the SET button once.
• "SET" appears in green on the setting value monitor.
2
Place a matte portion of the target onto the focus position of the beam
spot emitted from the sensor. Then press the SET button once.
• The set value appears in green.
■ Base calibration
(maximum sensitivity that does not detect the matte portion)
Place a matte portion of the target onto the focus position of the beam spot
emitted from the sensor. Then press the SET button once.
• The set value appears in green.
■ Film calibration (for detecting the presence or absence of a film)
1
Place a target with a film onto the focus position of the beam spot emitted
from the sensor. Then press the SET button once.
2
Place a target without a film onto the focus position of the beam spot emit-
ted from the sensor. Then press the SET button once.
Fine-adjusting a sensitivity
■ Fine-adjusting a sensitivity by changing the setting value
To change the setting value (displayed in green digits), press the UP or
DOWN button.
Received light intensity indication
(The value is larger as the luster is stronger.)
Received
light
intensity
Set value
Received light intensity
hold indication
Received light
peak intensity
Received light
bottom intensity
Selecting the displaying channel: While holding down the MODE button,
press the UP or DOWN button.
A B
MODE
BANK
1 2 3 4
SET C
OUT
1 2 3 4
A B
MODE
BANK
1 2 3 4
SET C
OUT
1 2 3 4
A B
MODE
BANK
1 2 3 4
SET C
OUT
1 2 3 4
Matte
Lustrous
A B
MODE
BANK
1 2 3 4
SET C
OUT
1 2 3 4
