KEYENCE LR-ZB250AN/AP - Manual (Page 3)

3 LR-ZB250AN/P_IM_E
„ Operation mode (Fnc)
The “Distance (F-1)” mode detects distance.
“I-DATUM (F-2)” memorizes the “Light receiving pattern” and detects the amount of
change from the reference surface. Even a subtle uneven part can be detected if the
surface condition or color is different. Also, this mode is suitable for the detection of
transparent objects.The display value is “i100” for the background (reference surface) and
the figure decreases when the target object is detected.
z Setting procedure in I-DATUM mode (F-2)
1. Set the operation mode to “I-DATUM (F-2)”.
2. Set the reference surface.
z Standard tuning
1. Press the [SET button] briefly (<1s).
2. Press and hold the [SET button] (>3s).
[DTM indicator] will illuminate.
z High sensitivity tuning
1. Press and hold the [SET button] (>3s).
[DTM indicator] will not illuminate.
If no detection is achieved with the standard tuning, use the high sensitivity tuning.
When detecting transparent objects, refer to the “LR-ZB250AN/ZB250AP supplemental
manual”.
You can download the “LR-ZB250AN/ZB250AP supplemental manual” from the
KEYENCE homepage.
„ External input (in)
Turning the external input line (white line/(2) pin) ON will enable the following functions to
be performed.
z Tuning ()
This performs the same function as the [SET] button.
z Transmission OFF ()
This turns off the laser diode.
z Adjust (Adj)
Sets the reference surface. There is no limit for the number of times of setting. The
setting is reset by turning ON/OFF.
„ DSC function (dC)
This can be set when the operation mode is set to “I-DATUM (F-2)”. This mode
automatically corrects the reference surface to “i100” if changes due to temperature
change or build-up occur. If the display value largely fluctuates on the reference surface,
set the DSC function to [High speed (hiF)].

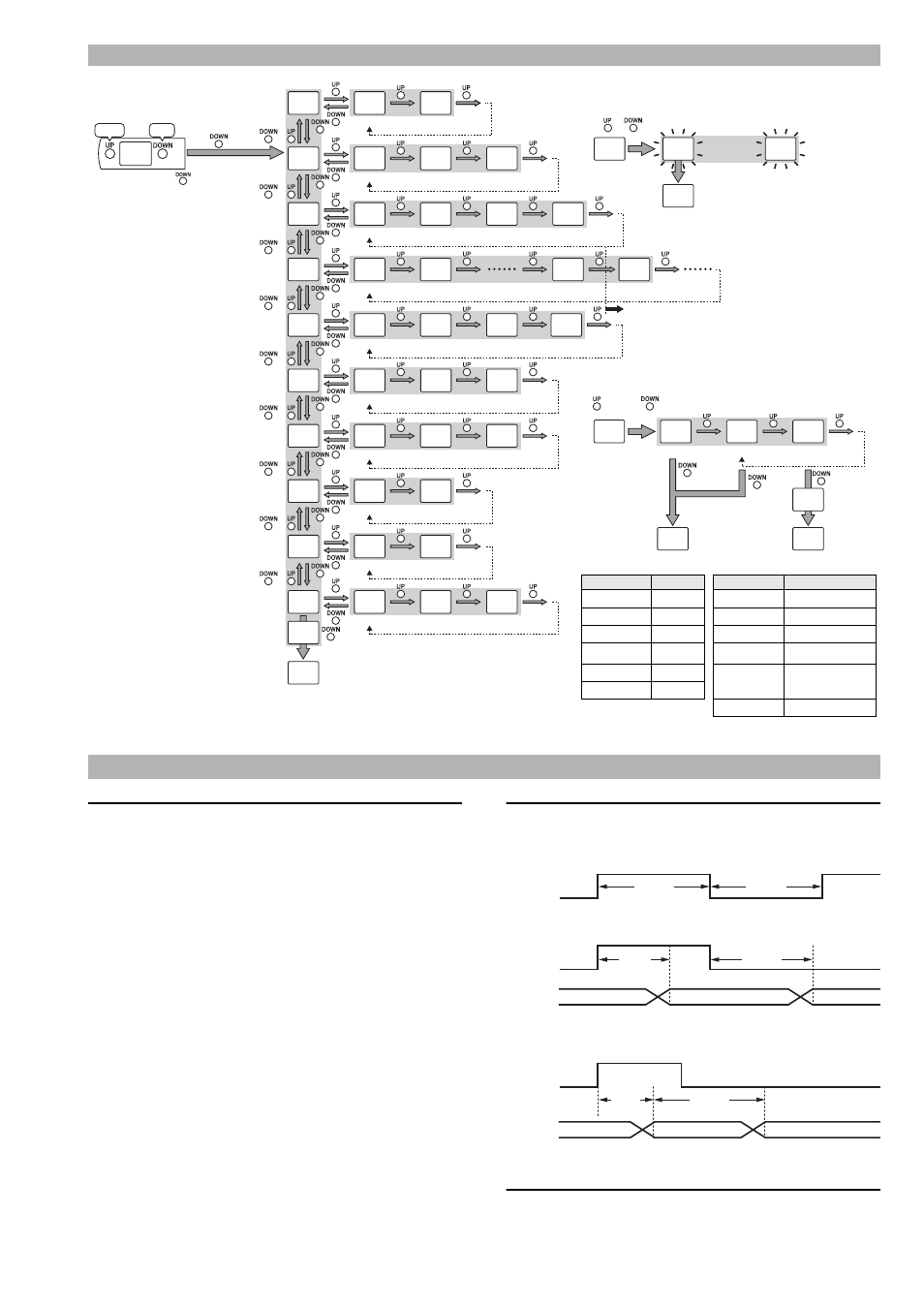

Advanced Settings
Various Functions
Display
ON OFF
Clamp function *2
OFF ON
Shift function *2
*3
Bottom hold Peak hold OFF
Hold function
1 ms
Transmission OFF Adjust *1 Tuning OFF
ON
External input
DSC *1
900 ms 20 ms 10 ms
Amount of time
for timer
One-shot OFF delay
1.5 ms
ON delay OFF
Delay timer
50 ms 10 ms
I-DATUM Distance
Response
time
Operation mode
Only when “ J52” is
selected in “ 52F”
(Run Mode)
OFF Bar display *2
>3s
Pressing any button will show the standard
display for a brief period of time even when
the display is set to [
Q((] or [D#T].
ON
(Run Mode)
Initialization
(Run Mode)
Initialize Not initialize
Initialization
Key lock
(Run Mode)
x 5 while is pressed.
• Pressing and holding
during setting will finish
the setting, and Run
Mode will be restored.
Only when an option
other than “
Q((” is
selected in “ F.;”
High speed OFF
D#T
52F
.Q( KP 5'V Q((
FVK
5JV Q(F
J52
F.[ QPF Q((
5(V Q(( QP
DA* *.F 2A* Q((
F52 Q(( QP
E.2 QP Q((
'PF
+
+
+
+
+
+
+
(PE ( (
+
CFL
&5% QP
+
T5V ;'5 PQ
.QE
(Run Mode)
Unlock
(Run Mode)
WP.
Key lock /
( + ) > 3s
JKH QHH
Set Select
Default Settings
Item Default Item Default
Operation mode Distance Hold function OFF
Response time 10ms Shift function OFF
Delay timer OFF Clamp function OFF
Amount of time
for timer
10ms Display ON
External input OFF
Setting value
LR-ZB100* : 300
LR-ZB250* : 100
I-DATUM mode : 80 DSC ON
Output operation L.ON
*1 This can be set only when the operation mode is set to “I-DATUM (F-2)”.
*2 This can be set only when the operation mode is set t o “Distance (F-1)”.
*3 This cannot be set when “Datum tuning” is being performed.
ON
OFF
>35ms >35ms
ON
OFF
Transmission OFF Transmission
<2ms <20ms
ON
OFF
Output OFF Output at the new reference surface
<35ms 100ms*
*250 ms when the response time is 50 ms
