28 Hangar 9 3.1m Sukhoi SU-26MM ARF Assembly Manual

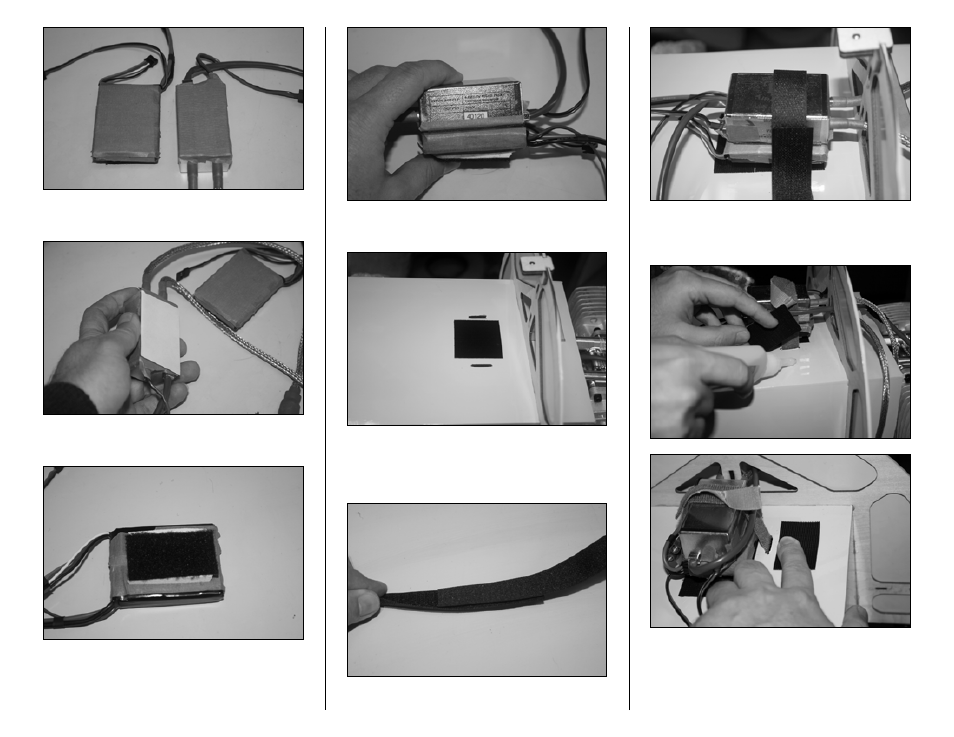

 5. Apply servo/double-sided tape between battery and
ignition module.
 6. Glue ¼-inch thick DuBro foam to the bottom of the
battery using CA. Glue a piece of hook and loop to the foam.
 7. Apply opposite side of adhesive-backed hook and loop
to the engine box.
 8. Mount the ignition and battery as one piece and strap
it with hook and loop straps. Provide an overlap of 2 inches
for the strap to wrap around the battery and ignition module
through the slots.
 9. Ignition will be mounted next to ignition module
and battery. Glue a piece of hook and loop next to ignition
module and battery.
 10. Apply a piece of masking tape to the bottom of
regulator and glue opposite side of hook and loop using CA.
