Hangar 9 3.1m Sukhoi SU-26MM ARF Assembly Manual

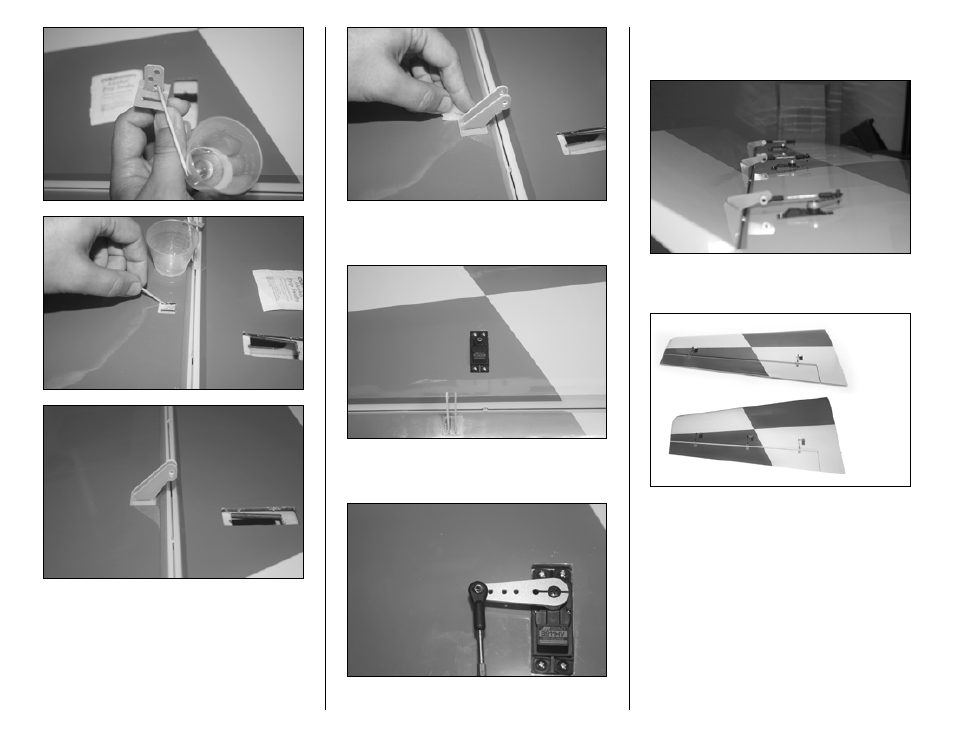

5. Attach an 18-inch JR Heavy-Duty extension to the
middle servo. Mount the servo such that the output shaft is
towards the leading edge of the wing.
6. 1.5-inch servo arms are used for 3D wing setup.
Assemble the linkages and use threadlock on all the screws.
Setscrews need only tightening and no threadlock.
7. The picture below shows the wing with a 3-servo setup
at full deflection. For MatchBox setup, refer to previous
section.
The picture below shows the comparison of precision
wing and 3D wing setup.
