Cub Cadet 310-3000 User Manual
Page 31
310-3000 IHT
27
REF. Part Name
1 Main Housing
3 Center Section Assembly
13 Block Insert Washer
14 Block Spring
15 10cc Cylinder Block
16 Pistons
17 Springs
18 Piston Washers
19 Block Spring
REF. Part Name
38 Bypass Plate
43 Pin
44 Screws
53 O-Ring
57 Bearing Retainer
82 Washer
83 Retaining Ring
144 O-ring
REF. Part Name
20 Bushing
21 21cc Cylinder Block
22 Pistons
23 Springs
24 Motor Shaft
25 Thrust Bearing
27 Spacer
28 16t Pinnion Gear

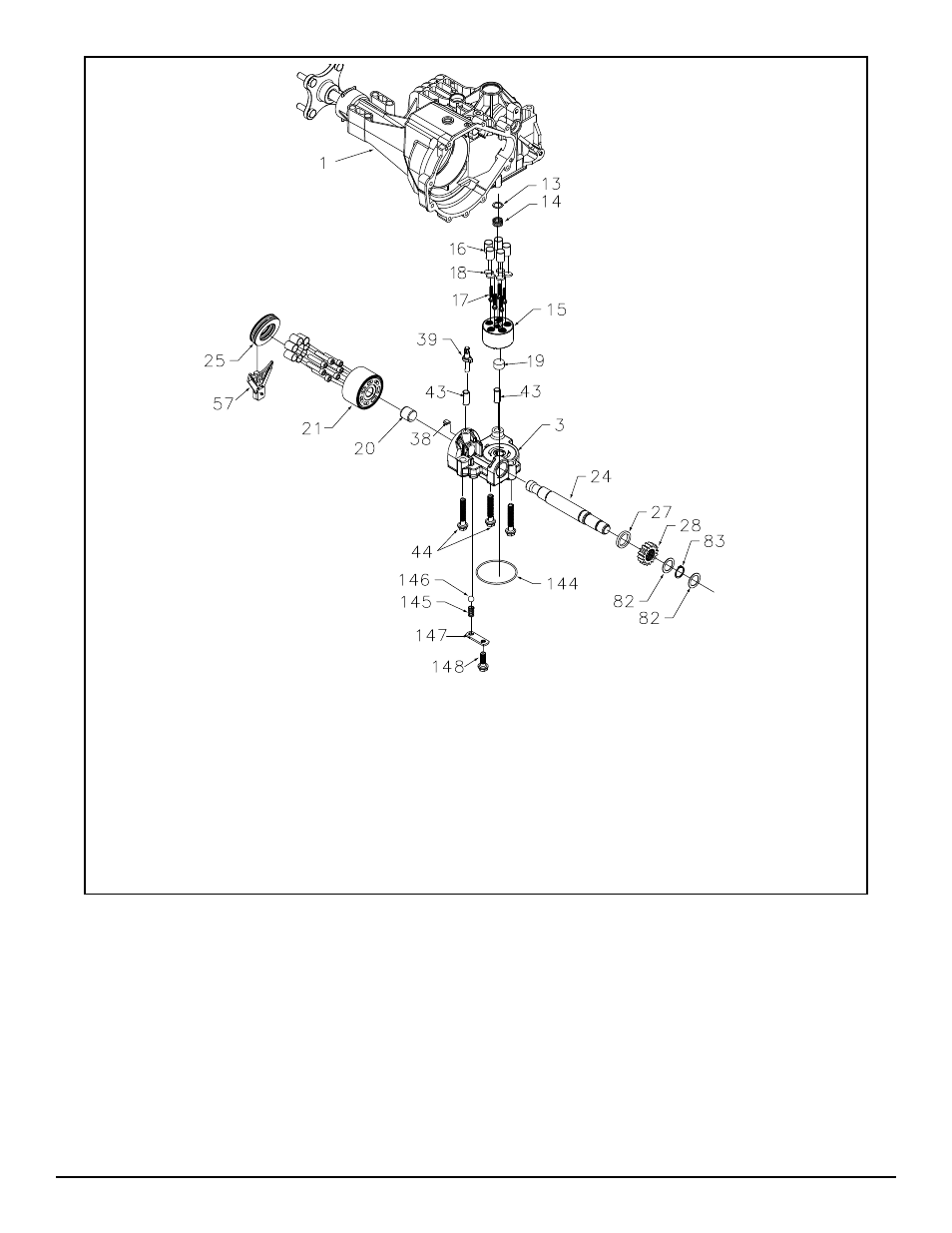

Figure 17. Motor/Center Section/Pump Assembly
