COP-USA USBDVR04SP User Manual

Page 37

MAXDVR & DR

Series

Cards

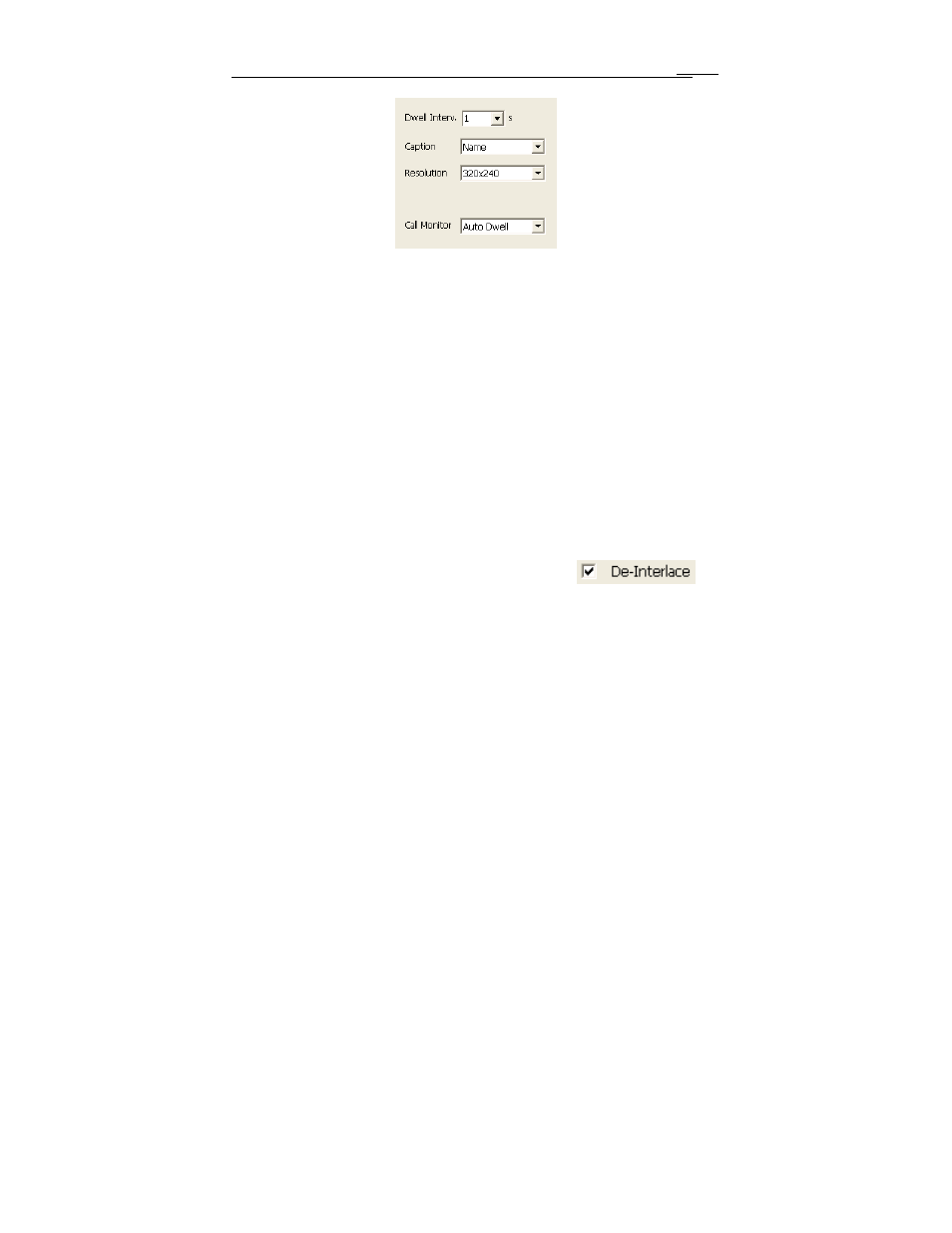

Fig4.2 Caption and General Configuration

[Dwell Interval.]: If users enable Auto Dwell function in the main interface page,

users can set the dwell time of a page here.

[Caption]: There are four options, None, ID, Name and ID/Name for users to

select for all the channels.

‘None’ means no title;

‘ID’ means camera numbers, i.e. 1, 2, 3 and so on

‘Name’ means camera names, i.e. Cam1, Cam2 and so on

‘ID/Name’ means both camera number and camera name, i.e.

1/Cam1, 2/Cam2 and so on

[Resolution]: There are four options,320Ч240、352Ч288、352Ч240、640Ч

480 for users to select for all the channels. As the video may have interlace

lines if the users select 640x480, users may choose

for

solve this problem, but it will occupy much more CPU loading.

[Call Monitor] Only DR3016F, DR3216 and DR5016F have call monitor

function at present. Users can connect another monitor to the card and select

the display modes here.

The following is about record data storage. Please check Fig4.3
