MAXDVR & DR Series Cards 22

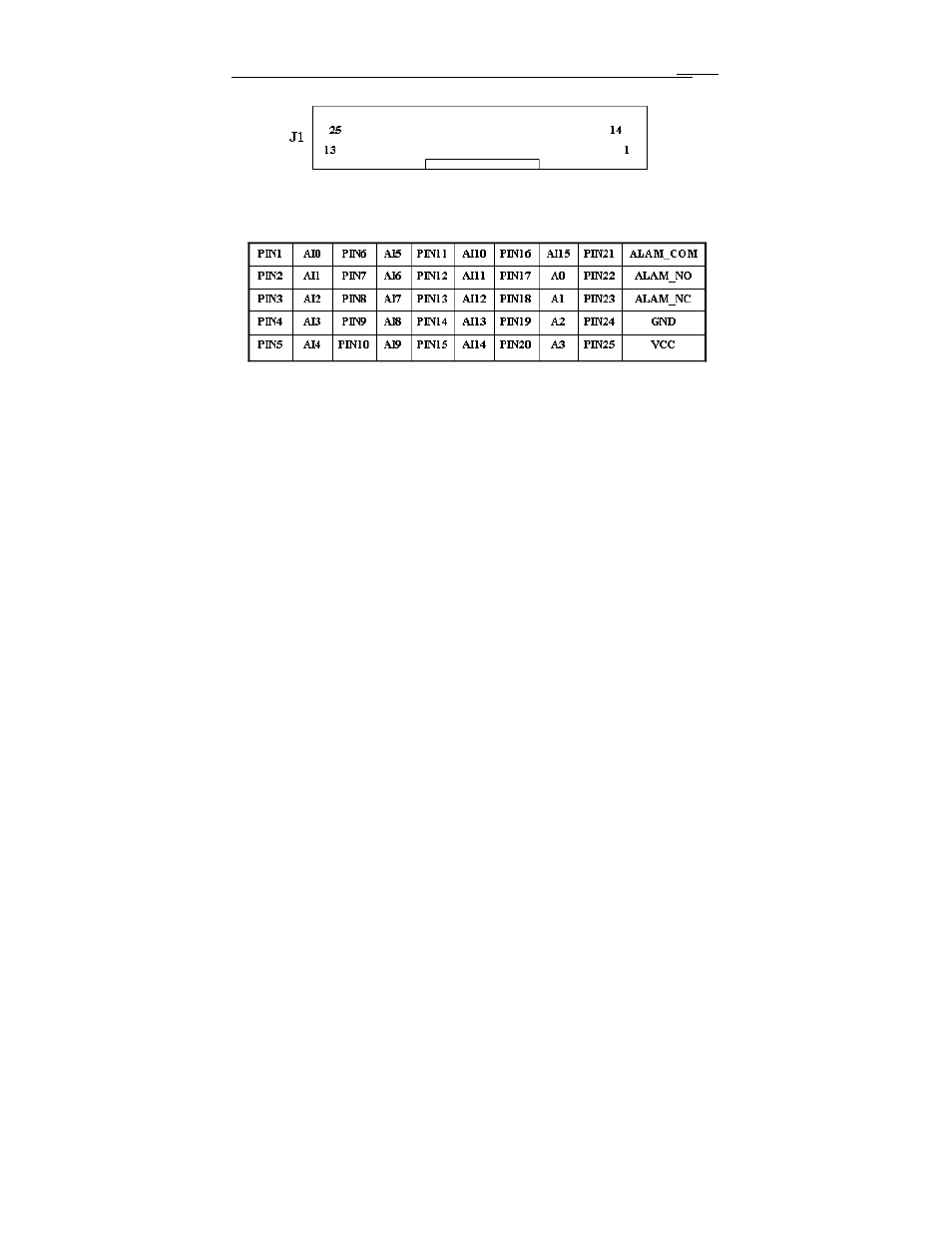

Fig2.15 Pins definitions of Alarm Board
Connect J2 to PC serial port and you may use alarm board by
MAXDVR system.
Connect Audio Signal
Connect the audio input device to the microphone connector on the
motherboard.
Note:
Before installing the Video Capture Card hardware in PCI port of the
motherboard, make sure you’ve installed Microsoft DirectX 9.0. Then turn on
the computer, the system will remind you to “Found new hardware”.
Notice: Just click “cancel” and ignore the pop-up message.
Insert the CD that contains DR series capture card driver into the CD
tray, and run Setup.exe program to install the driver. The default installation
path is ‘C:\Program Files\MAXDVR’.
Notice: In case it warns that ‘Can’t find card’ when running the MAXDVR
software, please restart the computer.
