MAXDVR & DR Series Cards 28
3.1 Display Control Panel
Display Control Panel

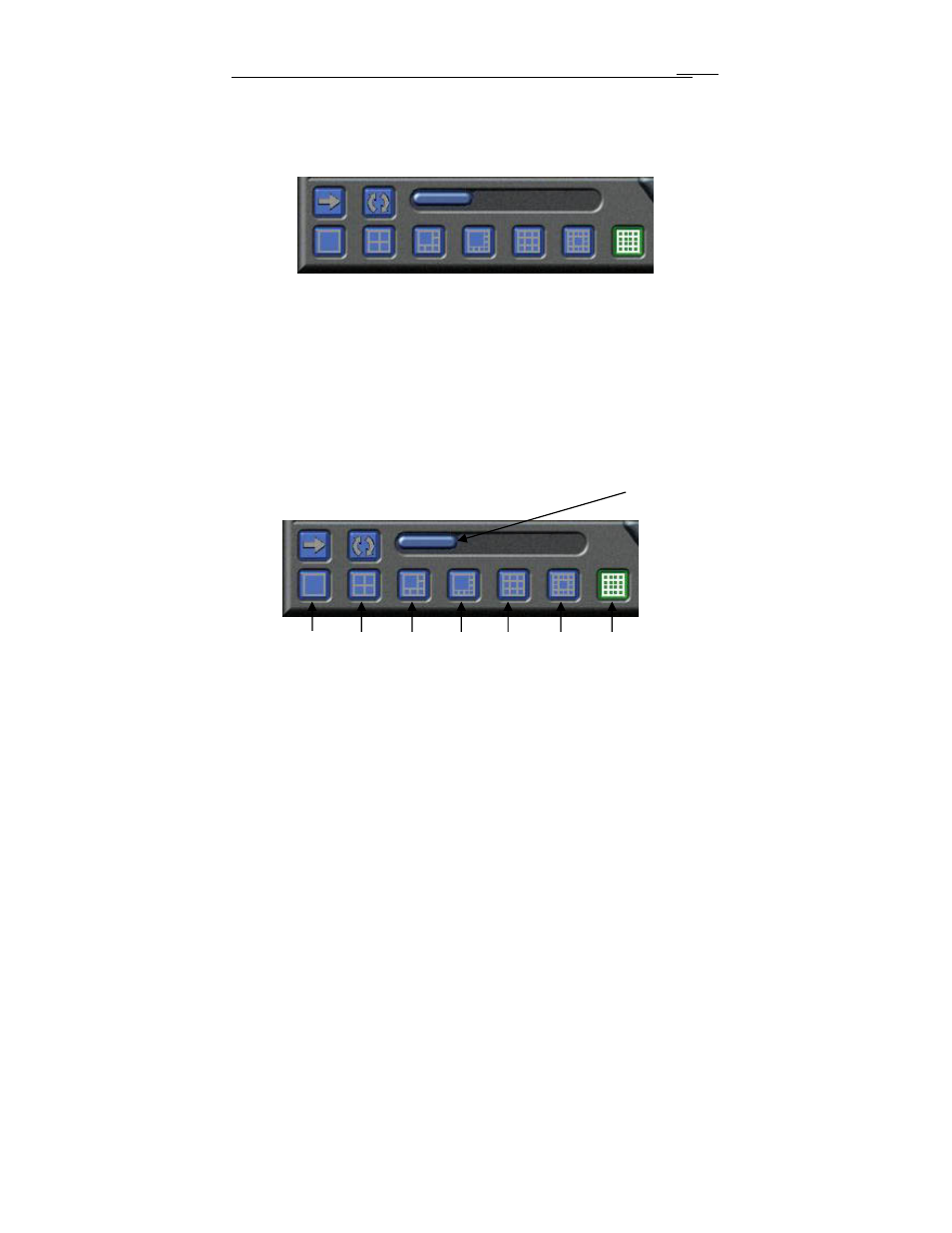

Fig3.2 Display control panel
‘Display control panel’ includes ‘Display Mode’ buttons and disk free
space indicator, ‘Auto Dwell’ button, 1, 4, 6, 8, 9, 13, 16channels display
buttons. Every button has its built-in indicator light. When switch on and off the
buttons, the relative indicator lights turn on and off to indicate the working
status.
Notice: Users can judge which buttons are working by the color of
the buttons.
Display Modes
Fig3.3 Display Modes Panel
Notice:
In case the card installed is 4CH CARD, then only 1CH and 4CH
buttons are valid.
In case the cards installed are 2 pieces of 4CH CARDS or a piece of
8CH card, then only 1CH, 4CH, 6CH, 8CH, 9CH buttons are valid.
1CH 4CH
Free space
6CH 8CH 9CH 13CH 16CH
