Dr3116 card hardware – COP-USA USBDVR04SP User Manual
Page 16
MAXDVR & DR
Series
Cards
16
Pin17
Alarm_out1
Alarm Output 1
Pin37
GND
Ground
Pin18
Alarm_out2
Alarm Output 2
Pin38
5V
Power Source (5V)
Pin19
Alarm_out3
Alarm Output 3
Pin39
Not Used
Not Used
Pin20
Alarm_out4
Alarm Output 4
Pin40
Not Used
Not Used
Table2.2 Pins definitions of DR3016F Card

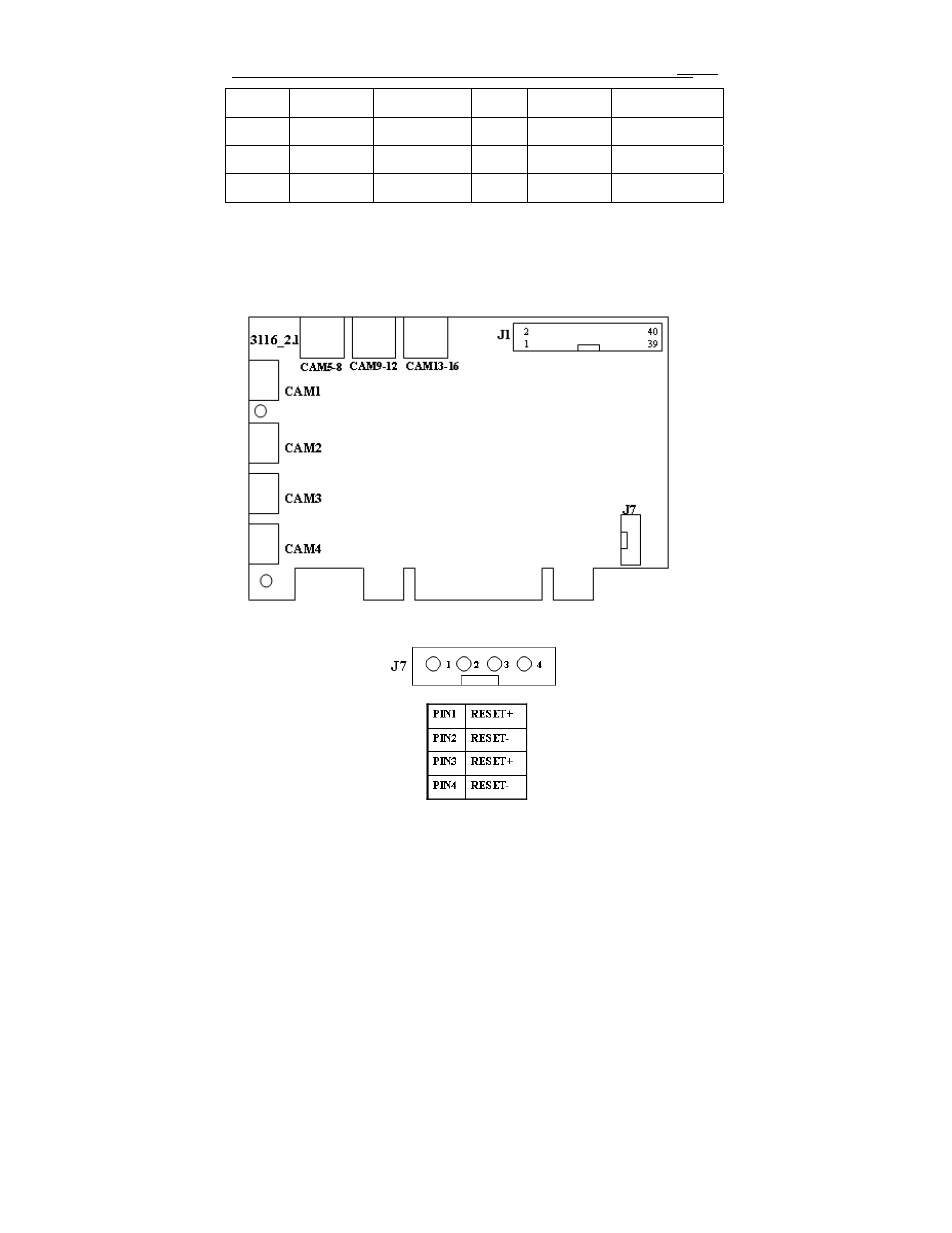

DR3116 Card Hardware
Fig2.6 DR3116 Video Capture Card
