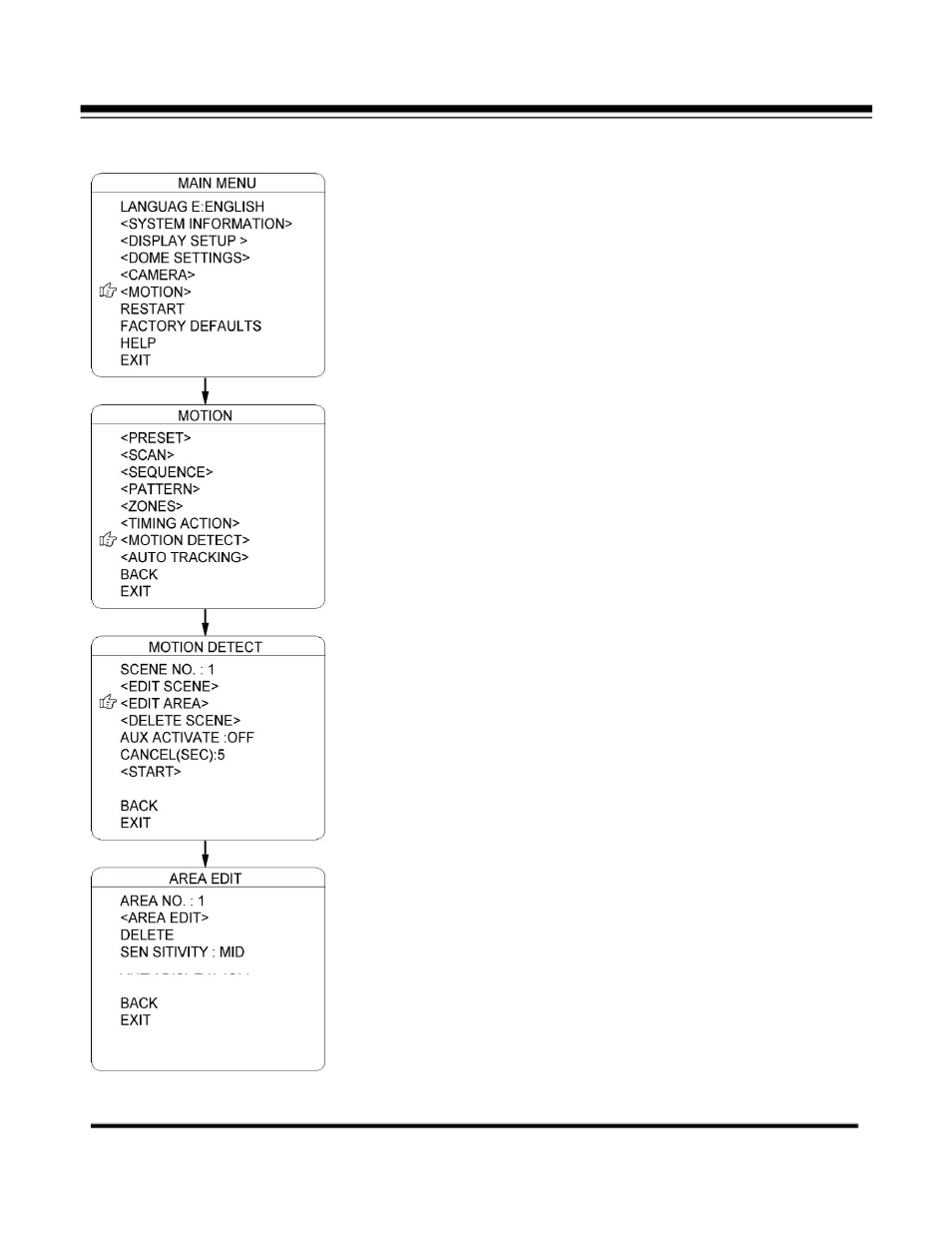

MOTION DETECT
The user can set up 8 motion detection scenes (each scene with 4
detecting areas) under this menu. The alarm output will be triggered
when moving objects enter these detecting areas
SCENE NO.: Move the cursor here and press IRIS OPEN to enter the
setup of Scene Number. Move the joystick to select a preset number
(1‐8) and press IRIS OPEN to confirm.
Move the dome to a user‐defined detecting scene. Press IRIS OPEN
to confirm.
menu of AREA EDIT.
a) AREA NO.: Move the cursor here and press IRIS OPEN to
enter the setup of AREA Number. Move the joystick to select
a preset number (1‐4) and press IRIS OPEN to confirm.
b)
enter the setup of AREA EDIT. The screen will display frame
with Serial No. The user can move the frame to the top left
conner of the wanted detecting area and press IRIS OPEN to
confirm. Then move the joystick to adjust the size of the
detecting area and press IRIS OPEN to confirm
c) DELETE: Move the cursor here and press IRIS OPEN to delete
the current detecting area.
d) SENSITIVITY: Move the cursor here and press IRIS OPEN to
enter. Select among LOW. MID and HIGH and press IRIS
OPEN to confirm the sensitivity.
e) DELETE SCENE: Move the cursor here and press IRIS OPEN to
delete the current scene.
f) AUX ACTIVATE: The dome can activate the alarm aux output
when detecting the moving object. Press IRIS OPEN to enter
and select between “ON” and “OFF” to activate or
deactivate this function.
g) CANCEL (SEC): Here means when the alarm aux output is
activated by the detecting function, for how long it will last
before the aux output will be closed. The time ranging 1‐60
Sec.
h) START: Move the cursor here and press IRIS OPEN to start
the function of motion detection.
