30

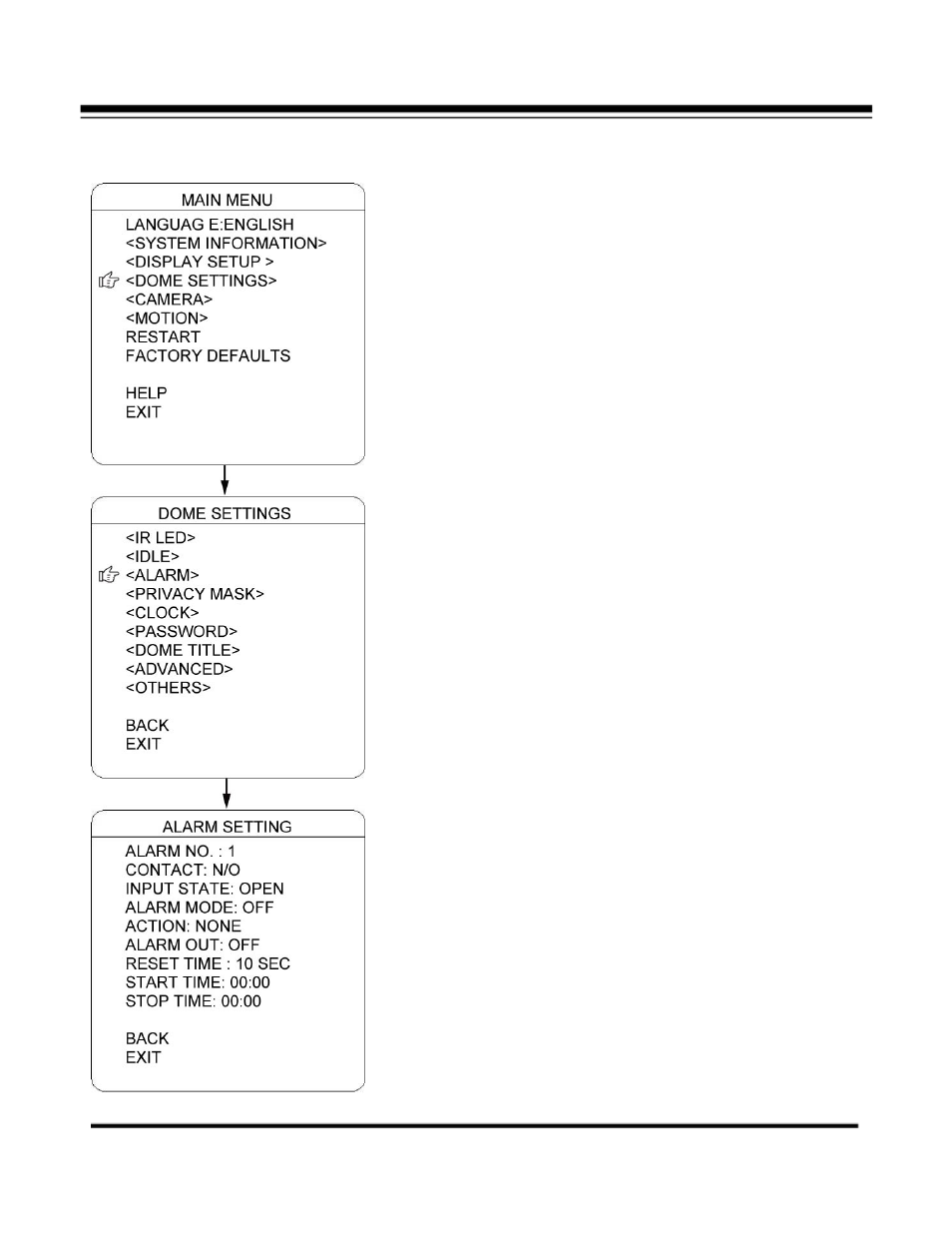

3) ALARM
The dome system has 2alarm inputs and 1 alarm output.
(optional function). When an alarm is received, an input signal
to the dome triggers the user defined action (such as presets,
patterns, etc.), and at meantime the alarm output signals is
activated.
ALARM NO.: Move the cursor to the ALARM NO. Press IRIS
OPEN to enter and move the joystick up and down to select the
alarm input no. (Channel 1 and Channel 2)
INPUT STATE
：Set the alarm contact status. There are
two input states, OPEN and CLOSE.
OPEN
normally open
CLOSE normally close
ALARM MODE
OFF
Alarm function is deactivated.
ON Alarm function is activated.
AUTO AUTO Alarm function will be activated and
deactivated between START TIME and STOP TIME.
ACTION: Set the alarm action:
NONE
(default) No action.
PRESET Dome goes to preset. (Default as Preset 1)
SCAN Dome starts auto scan (Default as Auto Scan 1)
SEQ Dome runs auto cruise (Default as Auto Cruise 1)
PATTERN Dome runs pattern (Default as Pattern 1)
ALARM OUT: Set the auxiliary to activate:
OFF
Not alarm output will be activated.
OUT1 An alarm action will close AUX 1 output..
OUT2 An alarm action will activate AUX2 output.
RESET TIME: Set up time for the alarm output (such as an
alarm buzzed) when is triggered by the detector. .
START /STOP TIME: Set up the time to start alarm and stop
alarm ONLY under the AUTO mode under ALARM MODE.
