IR LED

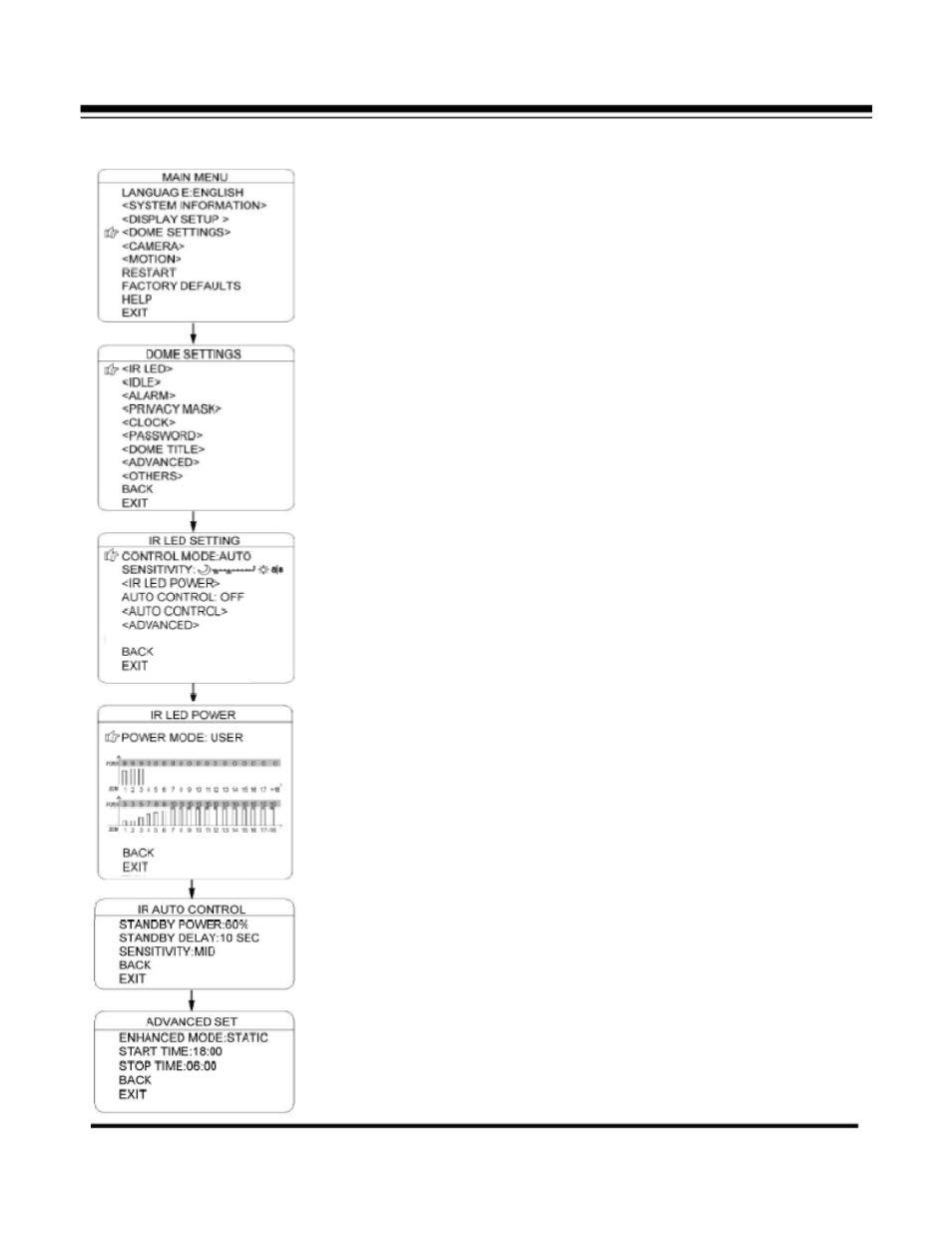

The user can open and close the IR LED manually and set up the IR LED
work mode under this OSD mean. (Under normal operation mode, the
user can press IRIS OPEN and IRIS CLOSE to adjust the IR LED power):

1) CONTROL MODE:
AUTO: IR LED will be opened or closed automatically according to the
light conditions.
TIMING: LED will be adjusted according to Open and Close Time.
OPEN: IR LED forcedly open
CLOSE: IR LED forcedly close
CAMERA: IR LED status (Open/Close) will be synchronized with Camera
day and night switching
2) SENSITIVIRY:
Here the user can manually set the sensitivity from 1‐5. The smaller the
number is, the lower light of the environment will be when the IR LED
on.
3) IR LED POWER: Here the use can choose the power mode covering:

NORMAL, MATCH and USER.

NORMAL: Near IR LED will be turned on when wide angle. and Far IR LED
will be turned on when small angle.
MATCH: The Near and Far IR LED will be turned on and off automatically
to match the zoom in and out.
USER: The user can manually adjust the Near and Far IR LED.

4) AUTO CONTROL: When it is on, the IR LED will turn its power

consumption to the standby status which will effectively extend
the service life of IR LEDs. And under this mode, when objects
appear in the screen, the IR LED will turn its power consumption
back to the normal status.

5) STANDBY POWER: When the AUTO CONTROL is on, the user can

set up the standby power here.

6) STANDBY DELAY: Set up how long if there is not moving object, the

IR LED will turn into standby status.

7) SENSITIVITY: When the AUTO CONTROL is on, the user can set up

the sensitivity to detect the moving objects.

8) ENHANCED MODE: Under normal status, press IRIS OPEN to

enhance the IR LED power, when it is turned to maximum, press IRIS
OPEN continuously for 2 seconds to enter the enhanced mode. And

the whole brightness of the image will be improved. Move the
cursor to EHNANCED MODE and press IRIS to enter and select

between” STATIC” and “DYNAMIC”

9) START/STOP TIME: Set up time for IR LED to open and close under

“TIMING” of control mode.
