IR Speed Dome Operating Manual
8

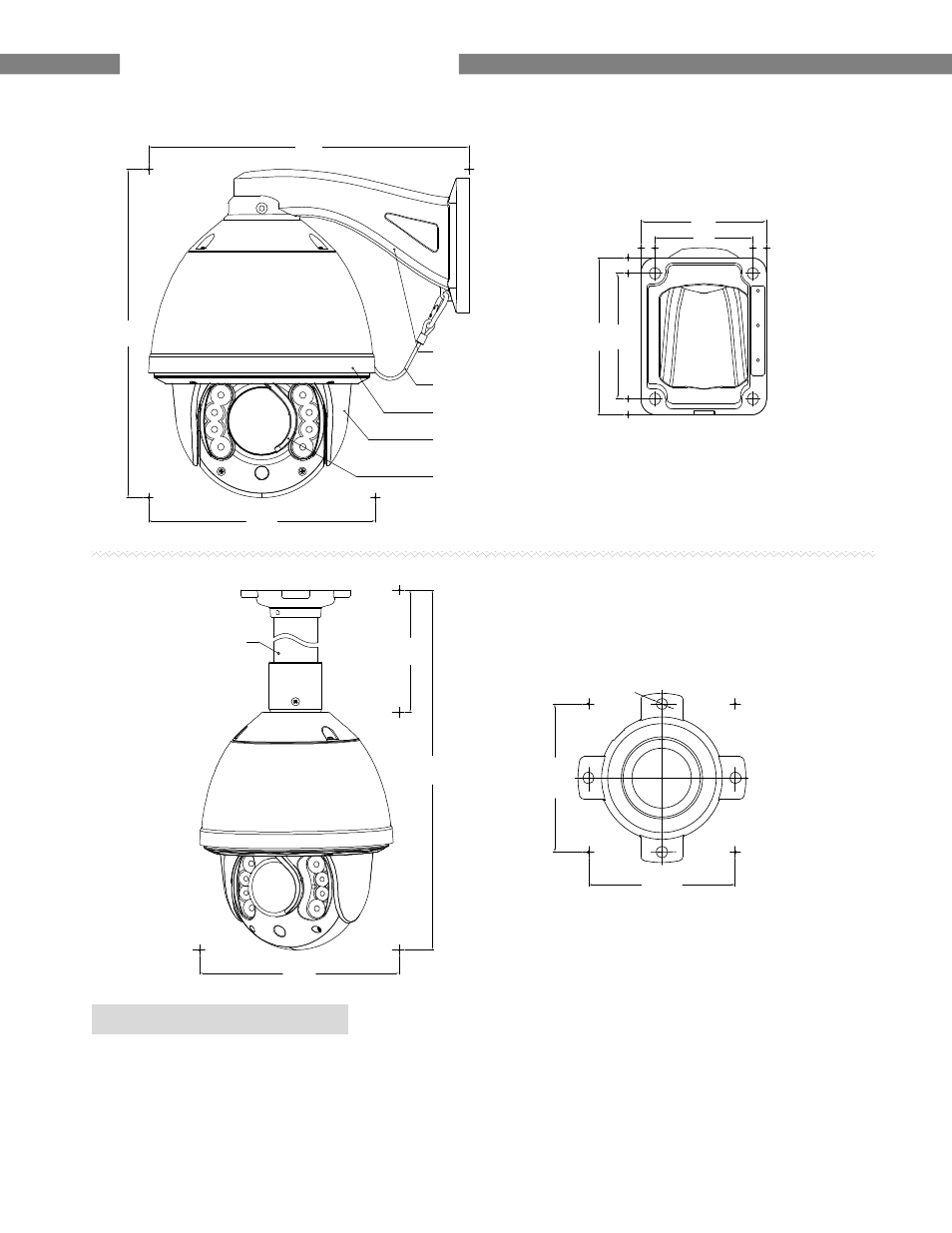

•Wall Mount
304
297
Ø210
Dome body rack
Wiper
Dome Housing
Power adapter bracket
Protective sling
Picture01 picture02
•Pendant Mount
Pendant-mout
bracket
Ø210
485
220
Picture03 picture04
Installation Procedures
Notice: The wall and ceiling must be thick enough to install the expansion
bolts and can bear 4 times the weight of the dome camera itself.
78
100
100 125
Wall-mount
4-Ш8
Ш105
Ш105
Pendant-mout
