4) Use screw nuts with washer to fix the bracket on the wall.

Notice: Pendant-bracket is not designed for outdoor installation. If specially
required, please do make sure the waterproof installation of the dome.

Dome Setting

Before the dome is installed, please finish the setup of the communication

protocol, baud rate and dome address. Set the DIP switch inside the dome body.

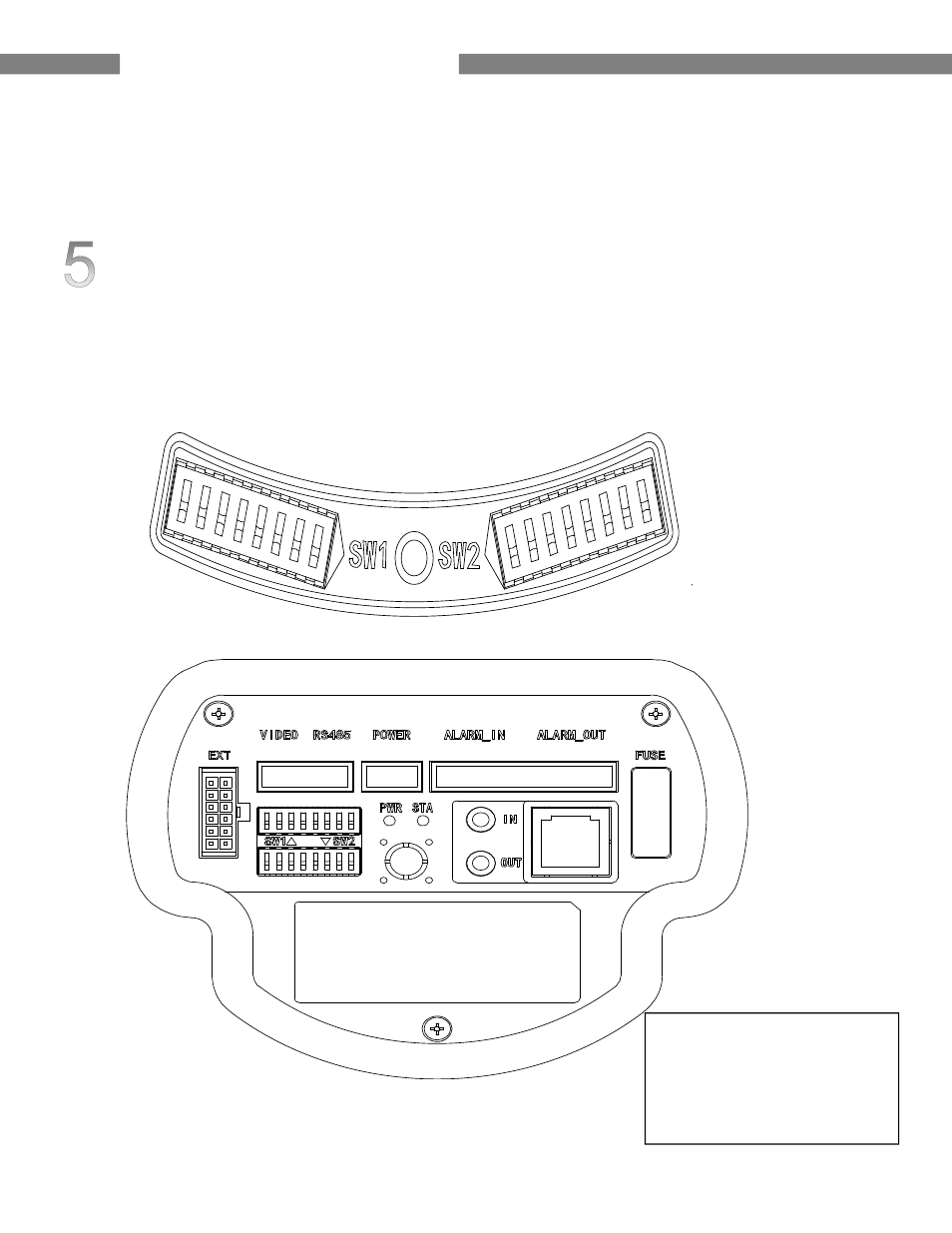

The relative DIP switch site and connecting wires are diagrammed below for
reference.

SW1— Dip switch for
the dome address
SW2— Dip switch for
the dome protocol
