COP-USA CD55HD-IP - Manual (Page 22)

Page 16 IP CAMERA USER MUANUAL

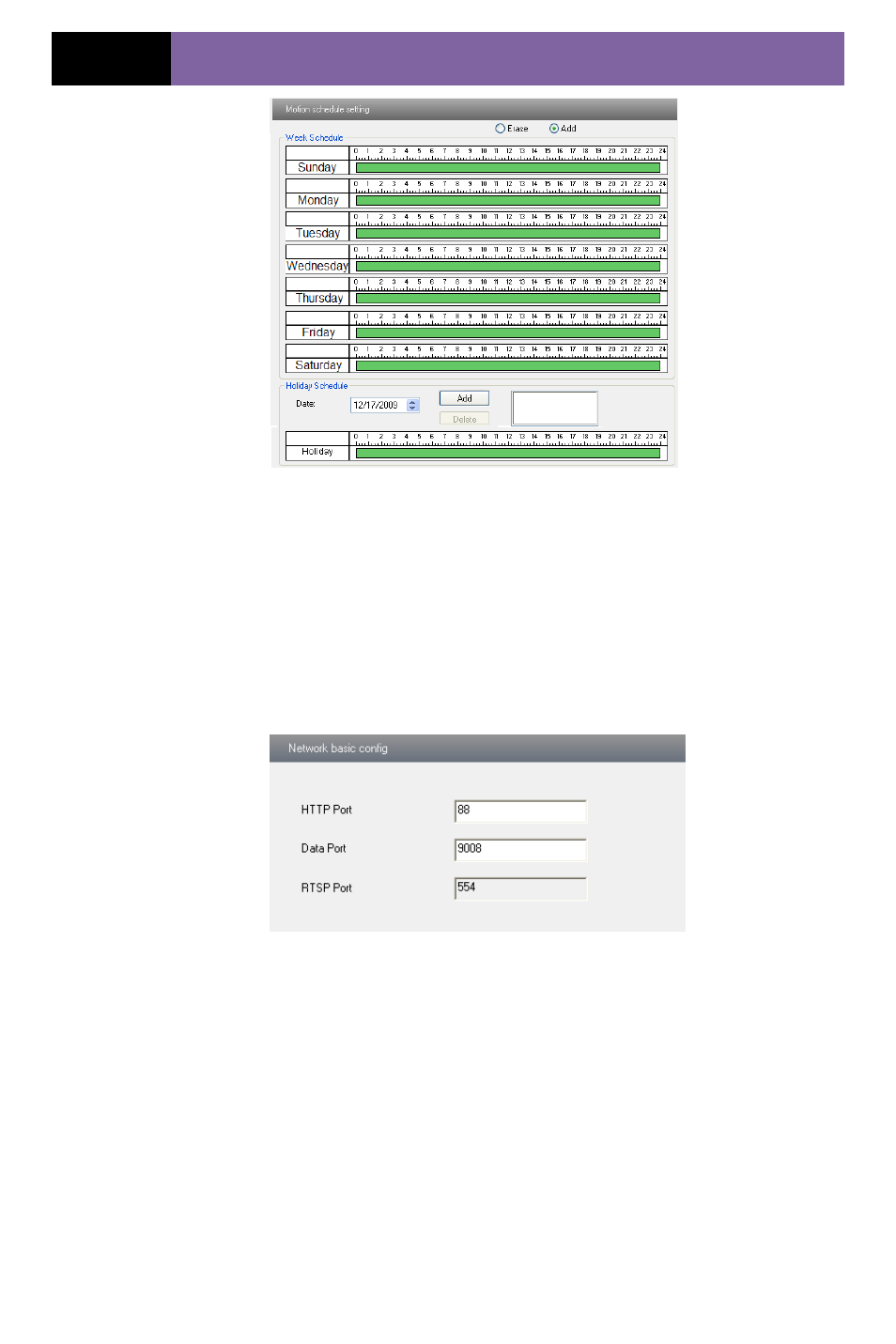

Fig 5-8 Motion Detection Schedule
5.4 Network Configuration
Network configuration includes ten submenus: Port, Wired, NET traversal Config,
Server Configuration, IP Notify, DDNS Config, RTSP, UPNP, Mail Setting and FTP.
5.4.1 Port
1. Enter into "Network config""Port" to see the interface as shown in Fig 5-9:
Fig 5-9 Port Config
2. Input port number for IE access in the "HTTP Port" textbox.
1. Input the port number for audio & video transmission in the "Data Port" textbox.
5.4.2 Wired
1. Enter into "Network Configuration"  "Wired" to see a tab as shown Figure 5-10:
