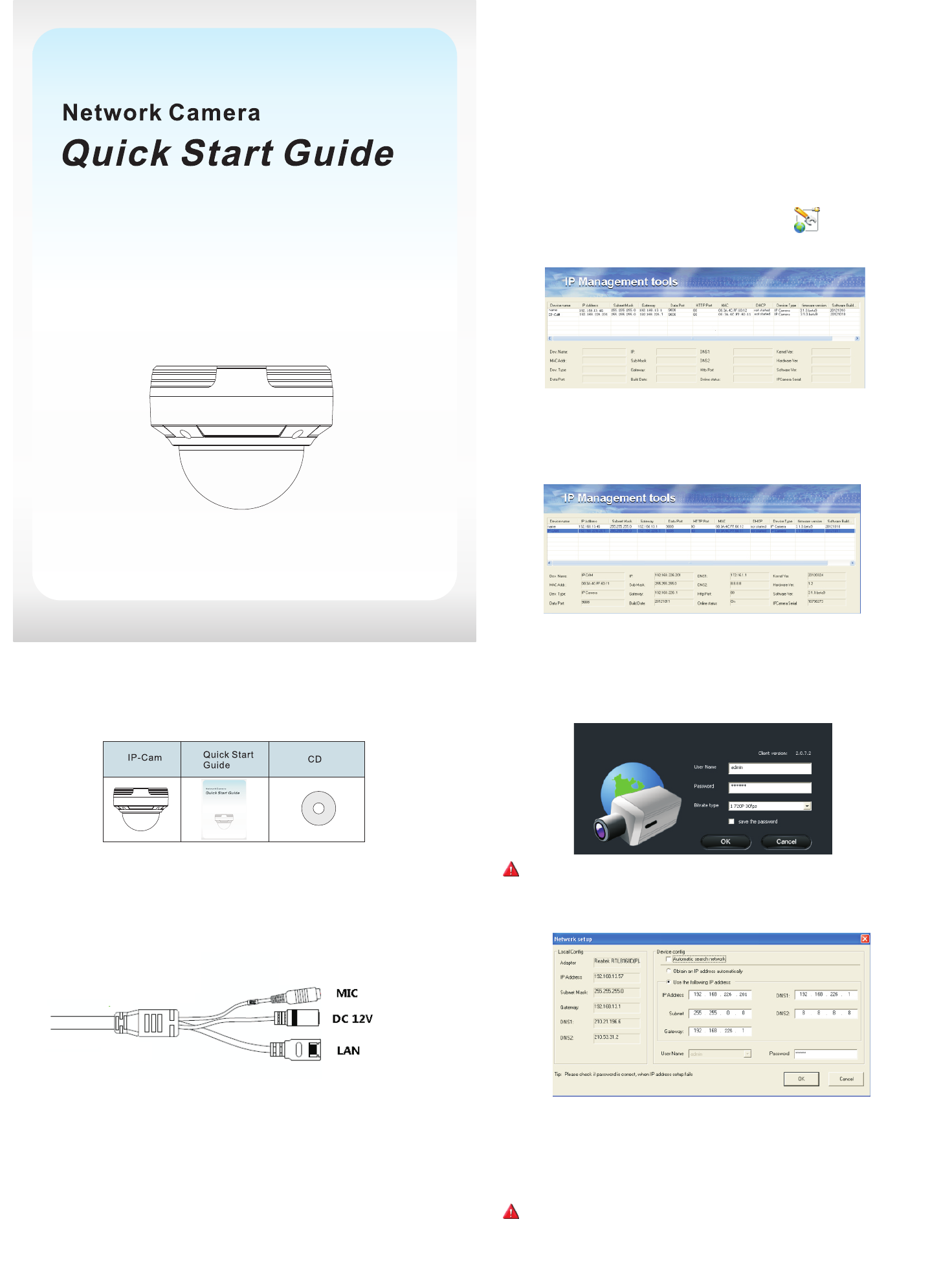

COP-USA CD55HD-IP User Manual
Package 2. connection, 3 . ie network connection, 1 lan

1. Package
2. Connection
MIC: connect to MIC
DC12V:connect to power supply
LAN:network port; support PoE power supply
After you receive the device, please check the following accessories. All pictures are only for
reference.Please take the material object as standard.
3. IE Network Connection
3.1.1 Access through IP-Tool
Step 1:
Make sure the PC and IP-CAM are connected to the LAN and the IP-Tool is installed on the PC
from the CD.
Step 2:
Use IP-Tool to modify the network of IP-CAM. Then double click the icon on the desktop
to run this software as shown below:
3.1 LAN
In LAN, there are two ways to access IP-CAM: 1. access through IP-Tool; 2. directly access
through IE browser.
IP-Tool will
search the device after starting it. If you cannot confirm which one is
yours, please shut off the electricity of the IP-CAM and then power on it. When shutting off the
power, the device information will disappear. When powering on, the device information will
emerge. Well, the device is the used device. You can check the detail information of IP-CAM by
clicking the address of the device as shown below:
automatically
User can connect IP-CAM through LAN or WAN. Here only take IE browser(6.0) for example.
The details are as follows:
Step 3:
Double-click or right- click the IP address and select “browse with IE”. Then the system will
pop up the IE browser to connect IP-CAM . IE browser will auto download the Active X control.
After finishing installing the Active X control, a login window will pop up as shown below:
The default user name and password are “admin” and “123456" respectively.
You can
modify the IP address of the device by IP-Tool. Then input the modified IP
address and port in the IE browser bar to access IP-CAM.
also
For example, the network segment of your computer is 192.168.13.X. Click “ Use the following
IP address” and then modify the IP address, gateway of the IP-CAM which must be in the same
network segment with the computer’s. Here we take 192.168.13.51 for example as shown below
figure. Please modify the IP address of your device according to the practical situation. After
finishing, please input the user name and password. Click “OK” button to save the setting.
The default user name and password are “admin” and “123456" respectively.
