Installation • • • • 7
Chapter 1
Installation
Mounting
DigiCart/E may be used on a tabletop or mounted in a 2U, 19” equipment rack. Rack mounting ears are
provided as part of the faceplate and chassis. Four 10-32 truss head screws with washers are provided for
this purpose. In some cases, it may necessary to support the back end of the chassis or attached cables. 360
Systems does not provide a bracket for this purpose.
Depending on the space available in the rack, you may need to remove the four rubber feet from the bottom
of the chassis to allow the chassis to fit into the rack space. Simply pry these rubber feet from the chassis
holes with a small flat blade screwdriver.

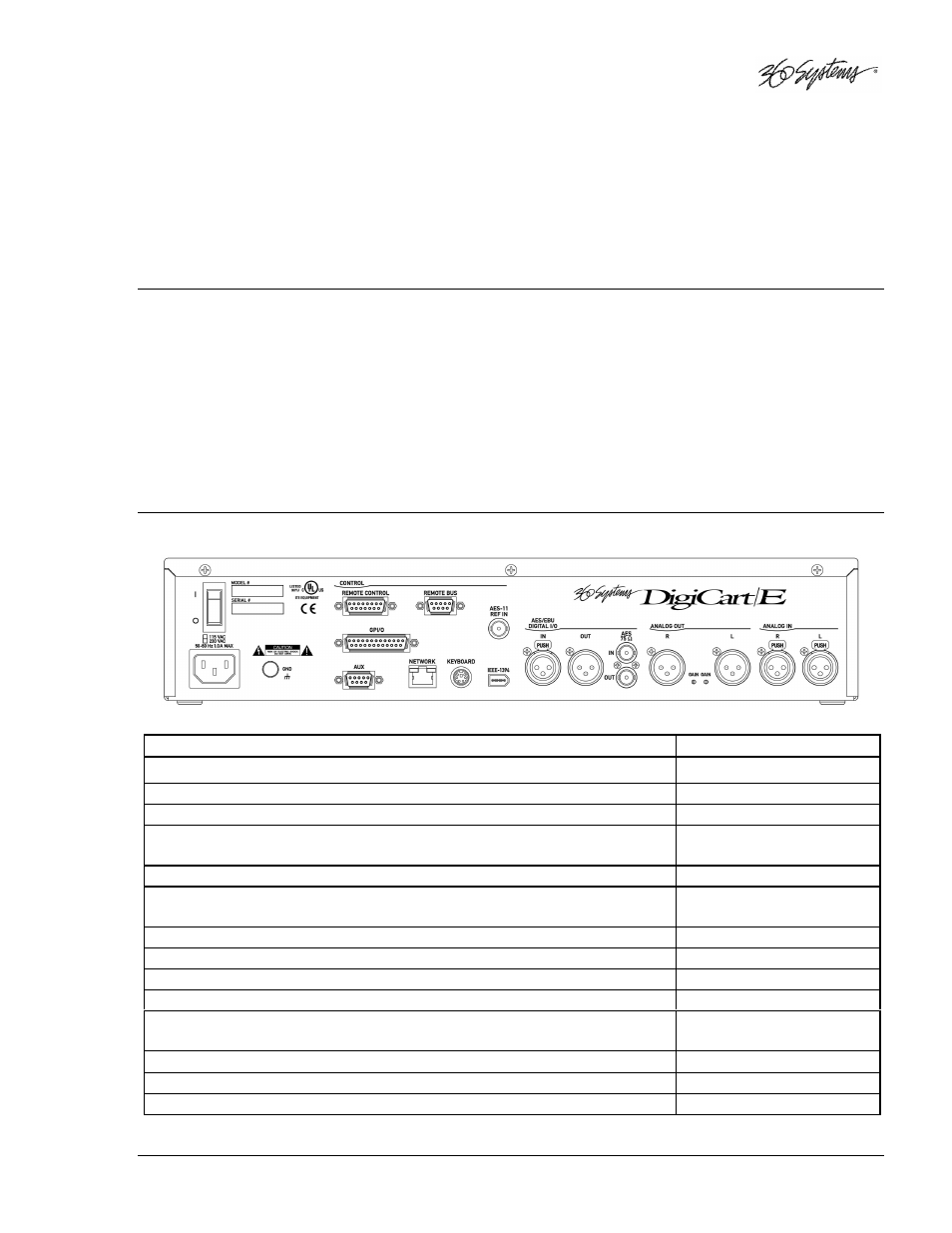

Rear Panel Connections
Rear Panel Interface Connector Type
Power cable connector and switch IEC-320
Thumbscrew for chassis ground, not for safety ground Thumbscrew
Remote Control Port – dedicated to RC-320 Remote Controls 9-pin “D” female
Remote Bus Port - EIA-485 (EIA-422 compatible) – connection of
Remote Bus to other DigiCarts 15-pin “D” female
GPI/O interface 25-pin “D” female
Serial Port - EIA-485 (EIA-422 compatible) serial communications
including ES-Bus and Peripheral Bus 9-pin “D” female
Connection to Ethernet network RJ-45
Port for QWERTY keyboard 6-pin Mini DIN
Connection for IEEE-1394 device IEEE-1394
Connection for AES-11 Sync Input BNC female
AES/EBU digital audio input, left and right; AES/EBU digital audio
output 3-pin XLR female
3-pin XLR male
IEC-958 TYPE II or AES/SMPTE 75Ω digital audio input Dual BNC female
Right and Left balanced analog audio outputs 3-pin XLR male
Right and Left balanced analog audio inputs 3-pin XLR female
