MAXX-2420-EX Owner’s Manual Page 87

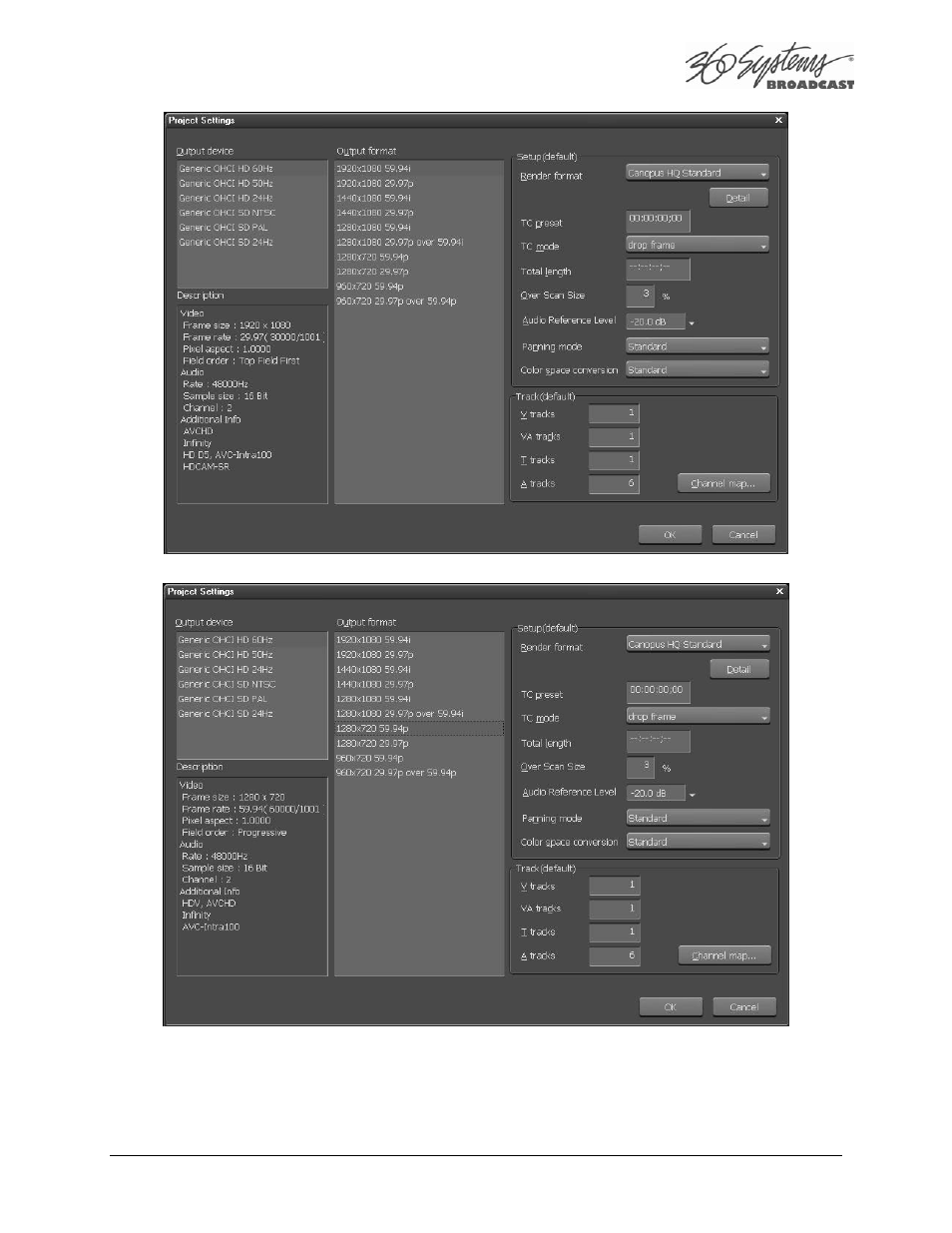

Figure 33 – 1080i Project Configuration
Figure 34 – 720p Project Configuration
Note that the VA track includes a stereo audio track, so the 6 “A” tracks make up the remainder
of the 8 tracks used by MAXX-HD.
