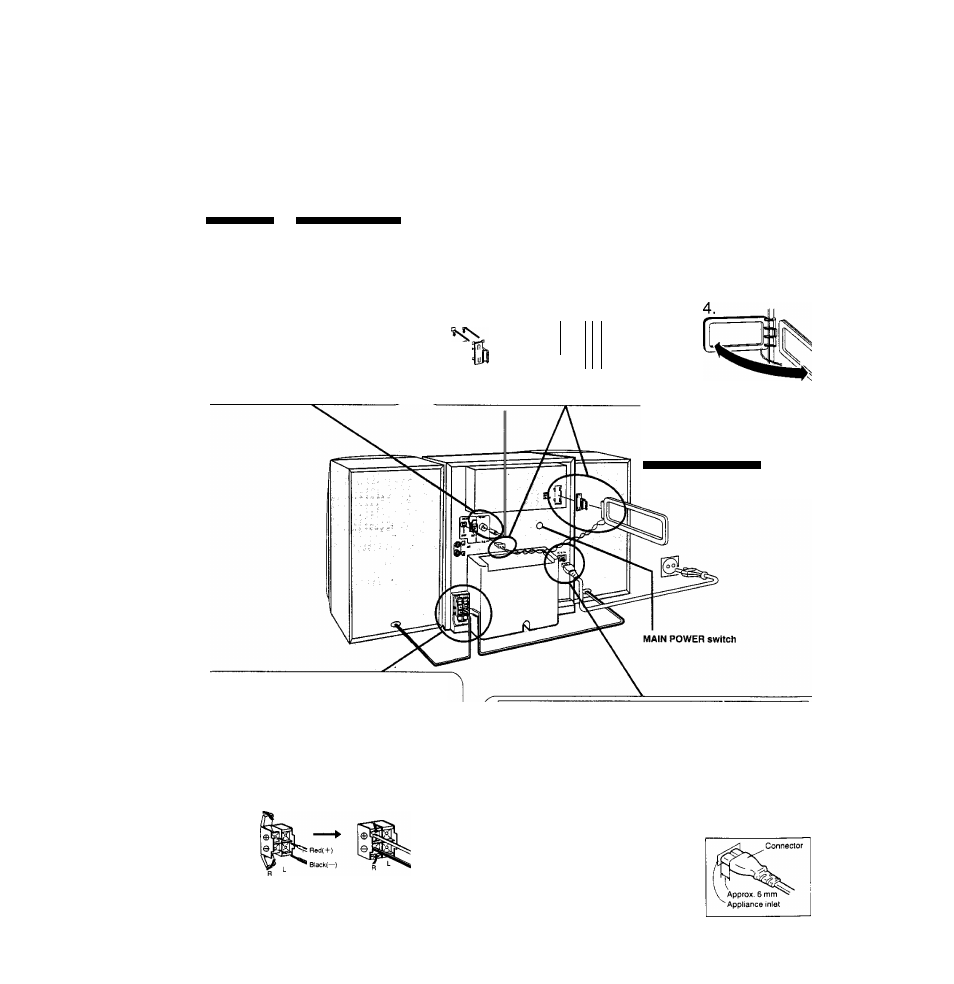

Basic connections (for supplied accessories)
FM indoor antenna
Twist
For United Kingdom For Australia and New Zealand
Adhesive tape E!I!
FM ANT
(75Q)
FM ANT
(750)
Attach to a wall {using tape) facing in the
direction of best reception.
For best reception sound quality:
An FM outdoor antenna is recommended.
Disconnect the FM indoor antenna if an FM
outdoor antenna is installed.
AM loop antenna
1. Attach the anten­
na holder to the
rear panel. Press
the antenna hold­
er hard enough
to get it fixed
firmly in place,
with a click.
2. Clamp the anten­
na to the antenna
holder.
3. Connect the an­
tenna terminal to
the rear panel of
the unit.
4. While listening to
an AM broad­
cast, position the
loop antenna for
the best recep­
tion.
1.-®
1
.-(
2
.
3
.
%
For Australia and New Zealand
The configutation of AC mains lead and I
antenna terminal are different.
% j Speaker cords
® Strip off the outer covering, and twist the center con­
ductor.
o
X
' Match the cords to the terminals by color and con­
nect.
To prevent damage to circuitry, never short-circuit posi­
tive (-F) and negative (-) speaker wires.
For United Kingdom:
BE SURE TO READ THE CAUTION FOR AC MAINS
LEAD ON PAGE 4 BEFORE PROCEEDING TO
STEP 4.
AC mains lead
Plug the cord into an outlet only after all other connections have been
made.
For United Kingdom;
insertion of Connector
Even when the connector is perfectly in­
serted, depending on the type of inlet
used, the front part of the connector may
jut out as shown in the drawing.
However there is no problem using the
unit.
