RS-232C connector
(§)
RGB1/Component video
BNC input connectors
(7)
BNC<=>HD D-sub switch
(D 15 Pin HD D-sub connector
forRGBI
input
(9)
15 Pin HD D-sub connector
for
RGB1
output
® 75 ohm«HI-Z selection
switch

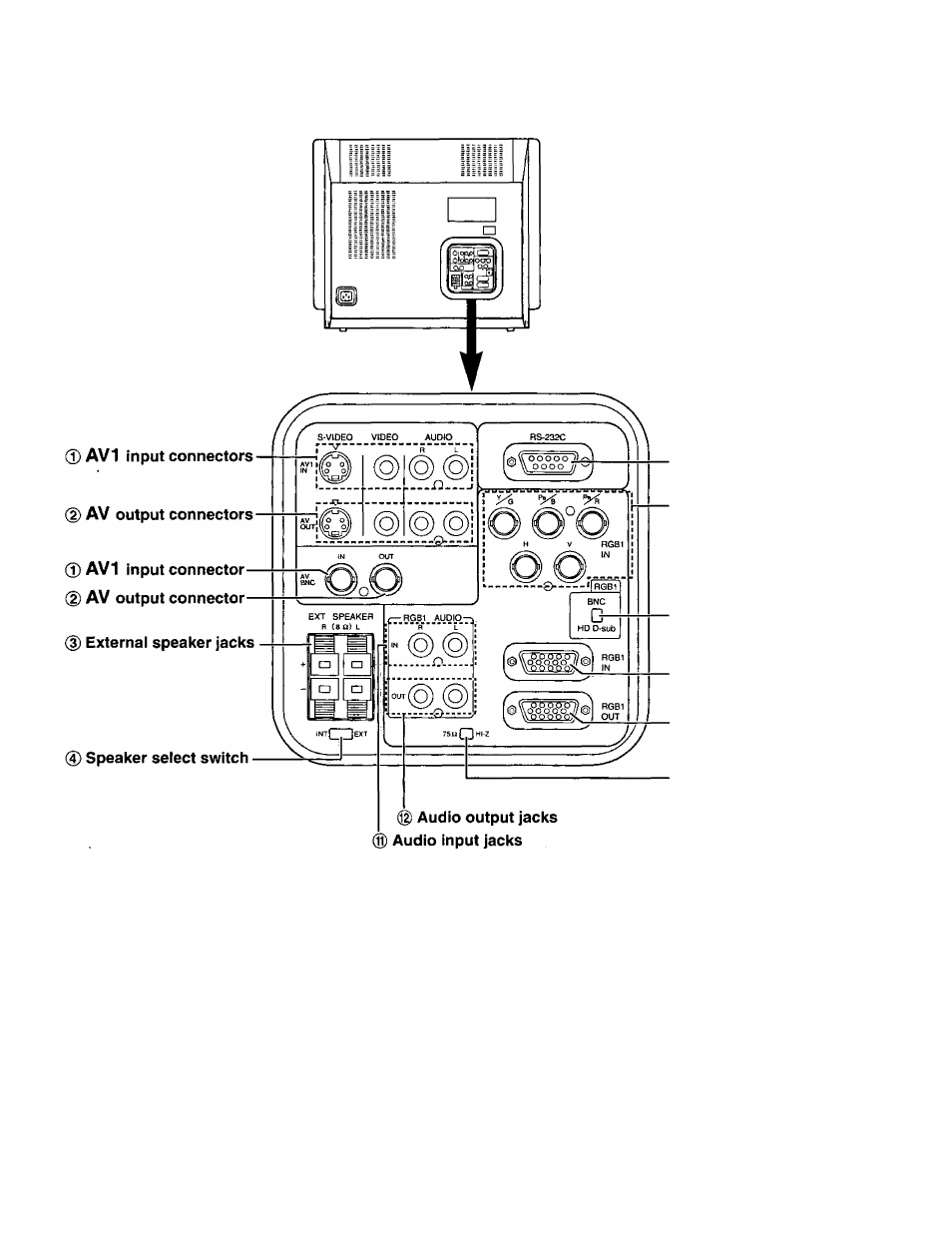

® A V 1 input connectors
These terminals are AVI input terminals.
S-video terminal is for S-video signal.
RCA jack named “VIDEO” is for composite video.
RCA jack named “R” is for audio R input.
RCA jack named “L” is for audio L input,
BNC jack named “AV1 IN” is for composite video.
Note: RCA jack named “VIDEO” is connected to
BNC jack named “AV1 IN” directly. Do not
input the composite signals both to RCA jack
named “VIDEO” and BNC jack named “AV
IN".
AV output connectors
These terminals are AV output terminals.
S-video terminal is for S-video signal.
RCA jack named “VIDEO” is for composite video.
RCA jack named “R” is for audio R.
RCA jack named “L” is for audio L.
BNC jack named “AV OUT” is for composite video.
Note: RCA jack named “VIDEO” is connected to
BNC jack named “AV OUT’ directly. Do not
connect both connectors at the same time.
