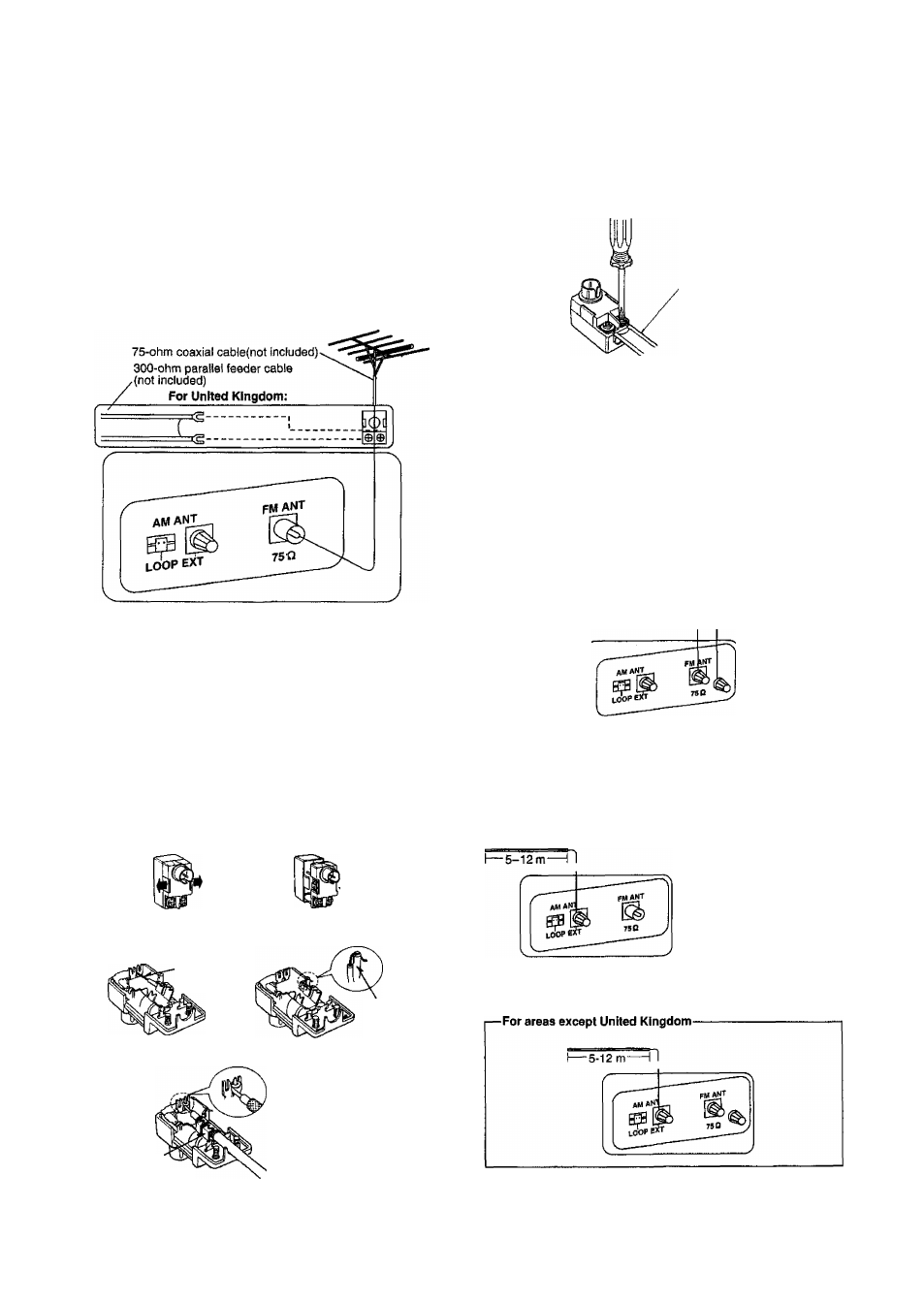

Connecting an outdoor antenna
FM outdoor antenna {not included)
Disconnect the FM indoor antenna.
Two types of cable are most commonly used for connection from the
antenna; 300-ohm parallel feeder cable or 75-ohm coaxial cable. For
best resistance to external interference noise, we recommend you to
use the 75-ohm coaxial cable.
FM outdoor antenna
■ How to use the antenna plug (included)
(For United Kingdom)
Two types of wire are most commonly used for connection from the
antenna: 300-ohm parallel feeder cable or 75-ohm coaxial cable. For
best resistance to outside interference, the use of 75-ohm coaxial
cable is suggested.
rTo connect a 75-ohm coaxial cable-------------------
® Remove a piece of the outer vinyl insulator.
■>
u
10 mm 20 mm
Remove the cover while pulling the tabs.
Note:
If the tabs are pulled too hard, the casing may be damag­
ed.
Remove the lead wire and damp It with the plastic bar.
Pull out the
lead wire.
@ Install the coaxial cable.
Press down
with pliers.
(D Attach the cover.
Clamp the
lead wire to
the plastic
bar.
Clamp the cable
conductor, and wind it
on so that it doesn’t
contact anything else.
rTo connect a 300-ohm parallel feeder cable-
300-ohm parallel
feeder cable
(not included)
Loosen the screw to connect the
feeder wire and tighten it to secure
the connection,
For areas except United Kingdom
1. Remove a piece of
the outer vinyl sheath
from the end of the cable.
2. Bundle the shield braid,
and remove a piece of
the inner vinyl sheath
covering the core wire.
3. Connect the core wire
and the shield braid.
30 mm
15 mm
CorewireU^MM ^Shield braid
AM (MW/LW) outdoor antenna
(vinyl-covered wire, not included)
This antenna is required in areas between mountains, inside rein­
forced concrete buildings or other locations where the broadcast
signals are weak. Install the antenna along a window, etc.
Do not disconnect the AM loop antenna.
