I n t e r n a l S e t t i n g & O p t i o n s
Internal setting
WoRDCLCOK-OuT S etting
In default setting the Worddcok THRU terminal supplies looped through
output of the Wordclock IN. Changing setting inside the unit enables the
wordclock terminal to supply internal clock to the connected device.

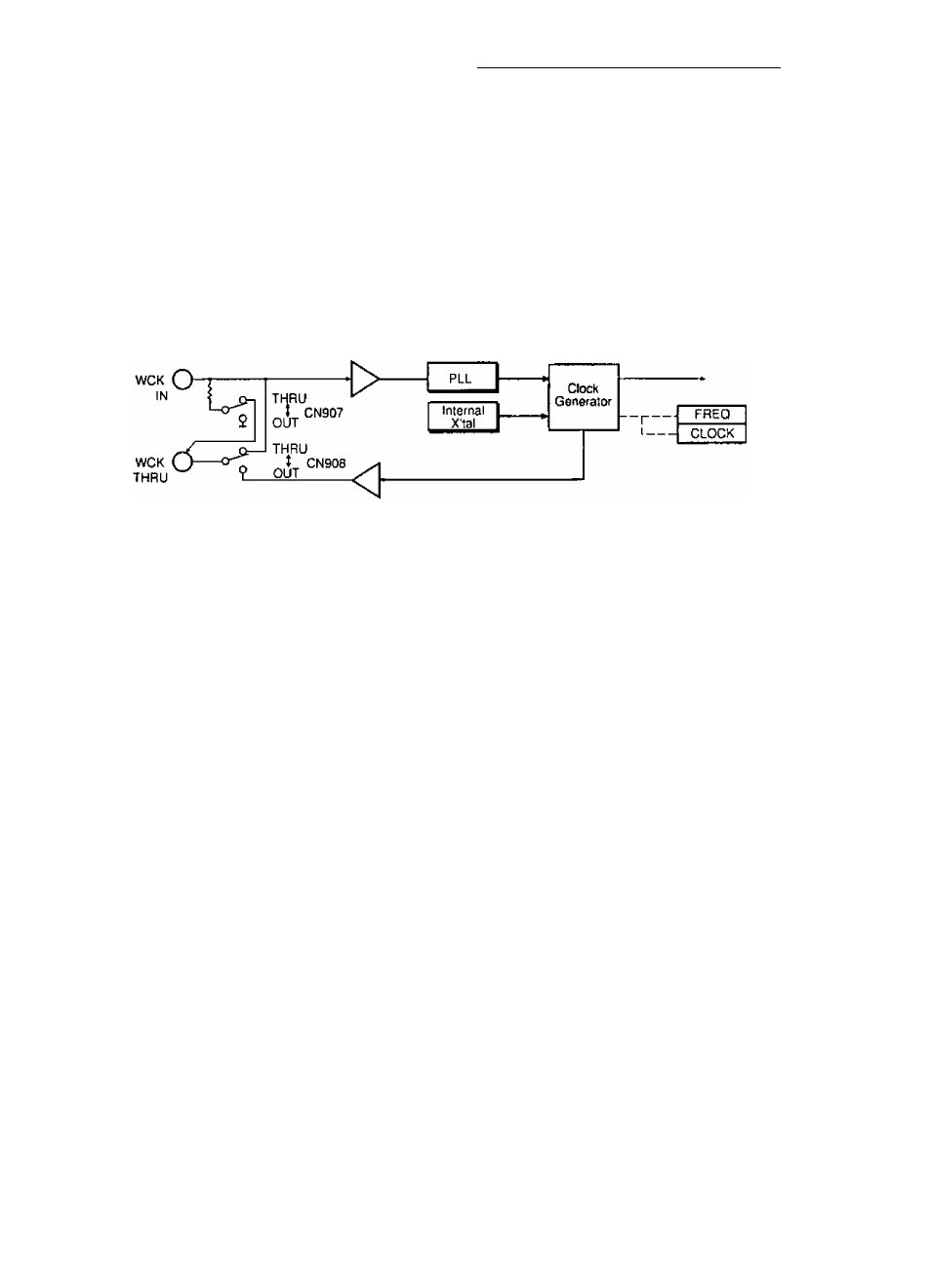

Wordclock Block Diagram
After this setting Wordclock IN constantly turns on the 150- termination
while the Wordclock THRU feeds internal clock.
Setting the DIP switch # 6 will select whether the unit follows the sampling
frequency or the clock selected .
Off: Wordclock THRU synchronizes to the sampling frequency selected
by the FREQ button.
On: Wordclock THRU synchronizes to the data transmission (output)
rate selected by the CLOCK button.
