Remote Control Operation from External Equipment
Remote-controlled operation is possible by controlling the TTL level of the [EXT.] Jack or with a mechanical
switch. For more details, contact your Panasonic dealer or Panasonic directly.

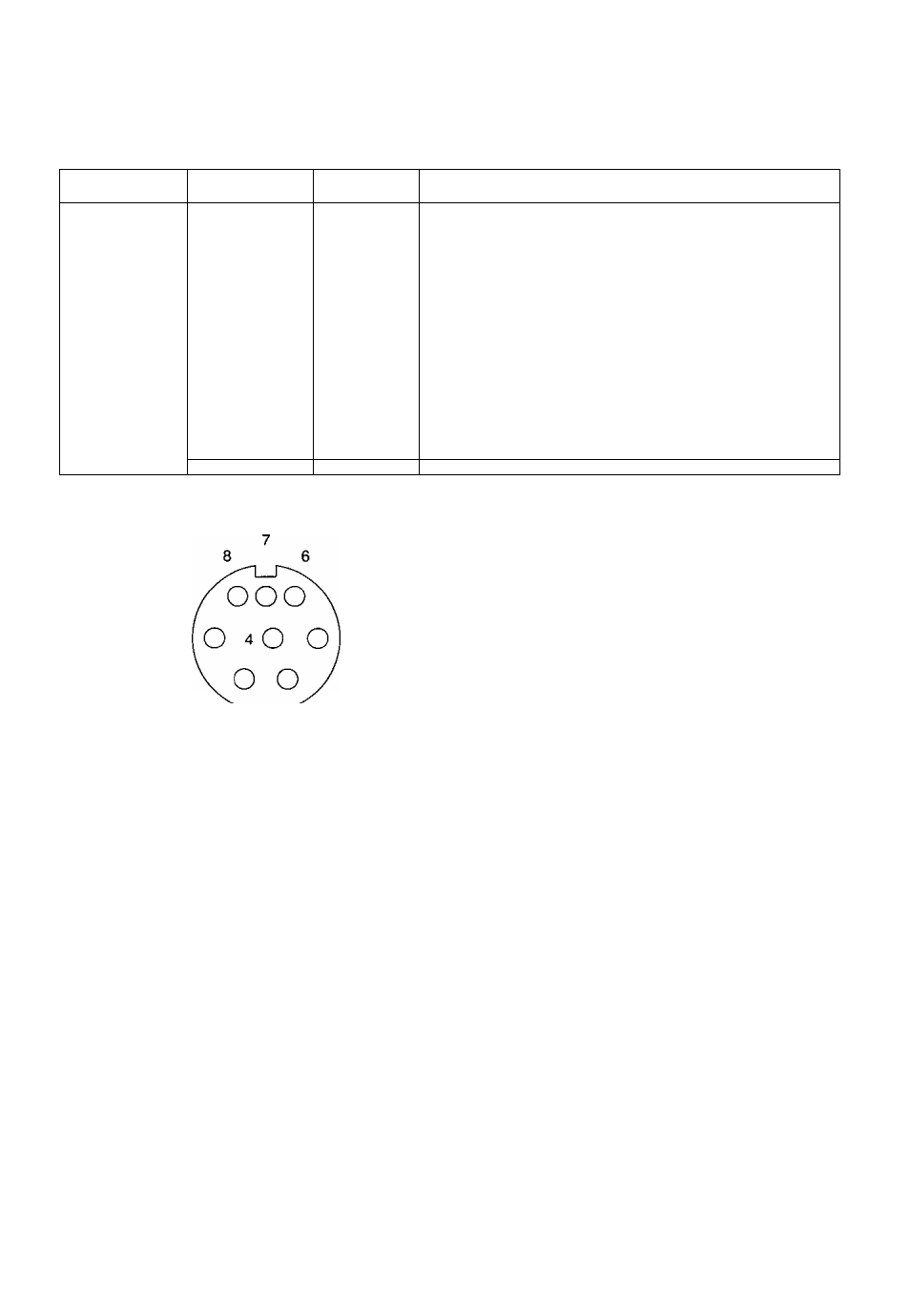

Pin No. Function In/Out Explanation of Function
1 GND GROUND
2 MEMORY In Memory
3 PRINT In Print
4 BUSY Out Busy information of the Printer
5 +5V Out Output o f + 5 V
(Output resistance: 2200)
6 ERROR Out Error indication
7
8
OSD OFF In Turns the OSD off
Pin No.
2
^^
1
Input/Output Timing
Name of Pin
MEMORY
PRINT OPEN
GND
More than 100 ms
MEMORYON
PRINT ON
OSD OFF OPEN
GND
OSD ON -
(When OSD is set to “ON” on the Printer’s
Menu Screen)
OSD OFF OSD ON
BUSY
ERROR
+ 5V
OV
Normal status
No error
30
Printer is —
busy.
Error exists.
Normal status
No error
