Between Antenna and VCR
Between VCR and TV

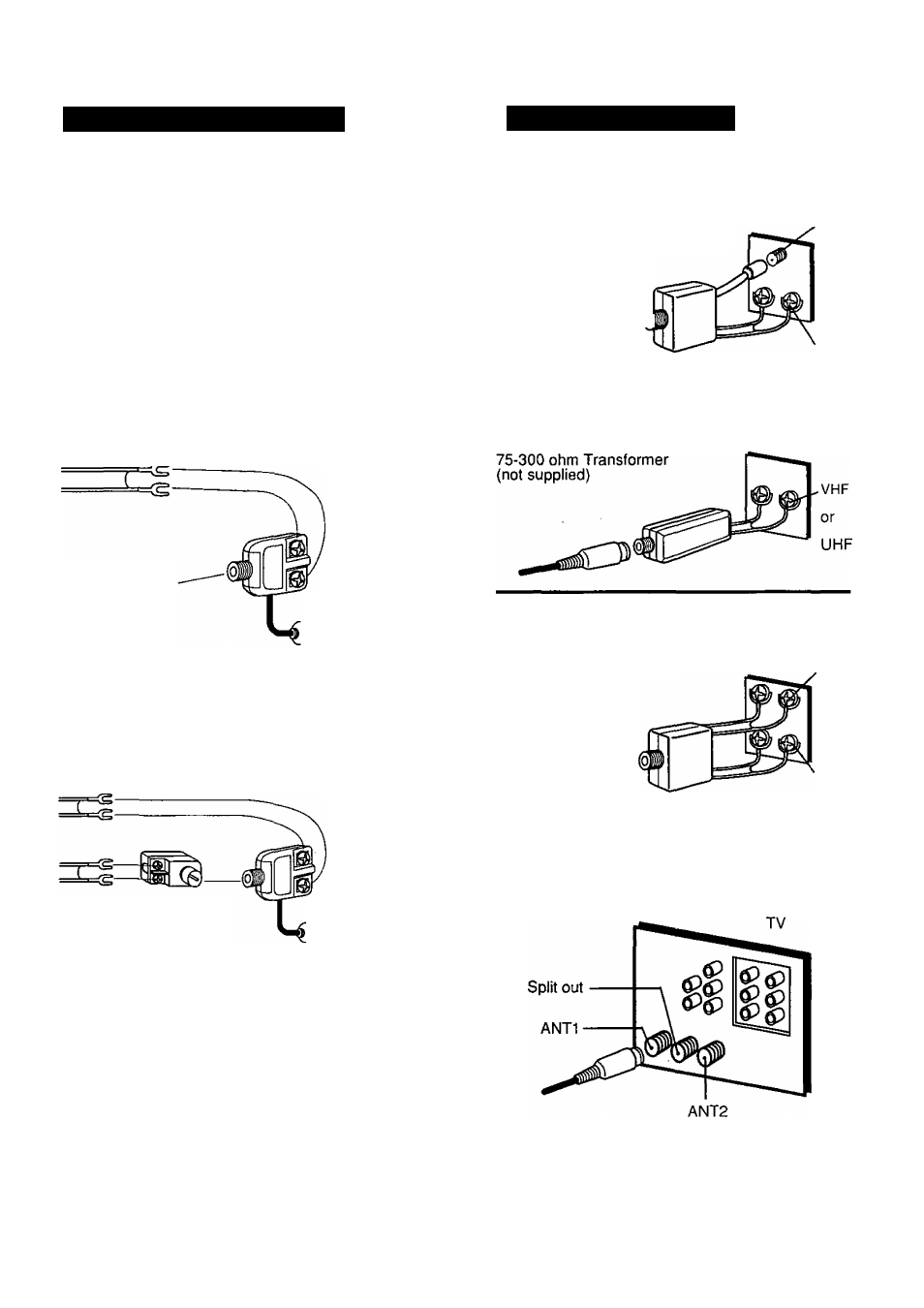

Case 1: Twin Lead Cable Only
To VCR Terminal
(Flat) Twin Lead 300
Ohm Cable
300-75 ohm Transformer
(not supplied)
Case 2: Twin Lead & Coaxial Cables
(Round) 75 Ohm
coaxial Cable
UHF/VHF
Band Mixer
(not supplied)
D
To VCR Terminal
Case 3: Two Twin Lead Cables
300*75 ohm Transformer
(not supplied)
UHF/VHF
Band Mixer
(not supplied)
D
To VCR Terminal
If your TV has both post and plug-type VHF
terminals, the post connection is recommended
to minimize signal loss.
Case 1: Screw & Plug Type Terminal
UHF/VHF Band Separator
(not supplied)
RF Coaxial Cable
Case 2: Screw Type Terminal
TV
UHF/VHF Band Separator
(not supplied)
VHF
UHF
Case 3: Double Screw Type Terminal
TV
VHF
UHF
Case 4: Complex TV Terminal
TERMINALS ON BACK OF TV SET
Connect to one of the ANT terminals and select
the same antenna number on the TV.
