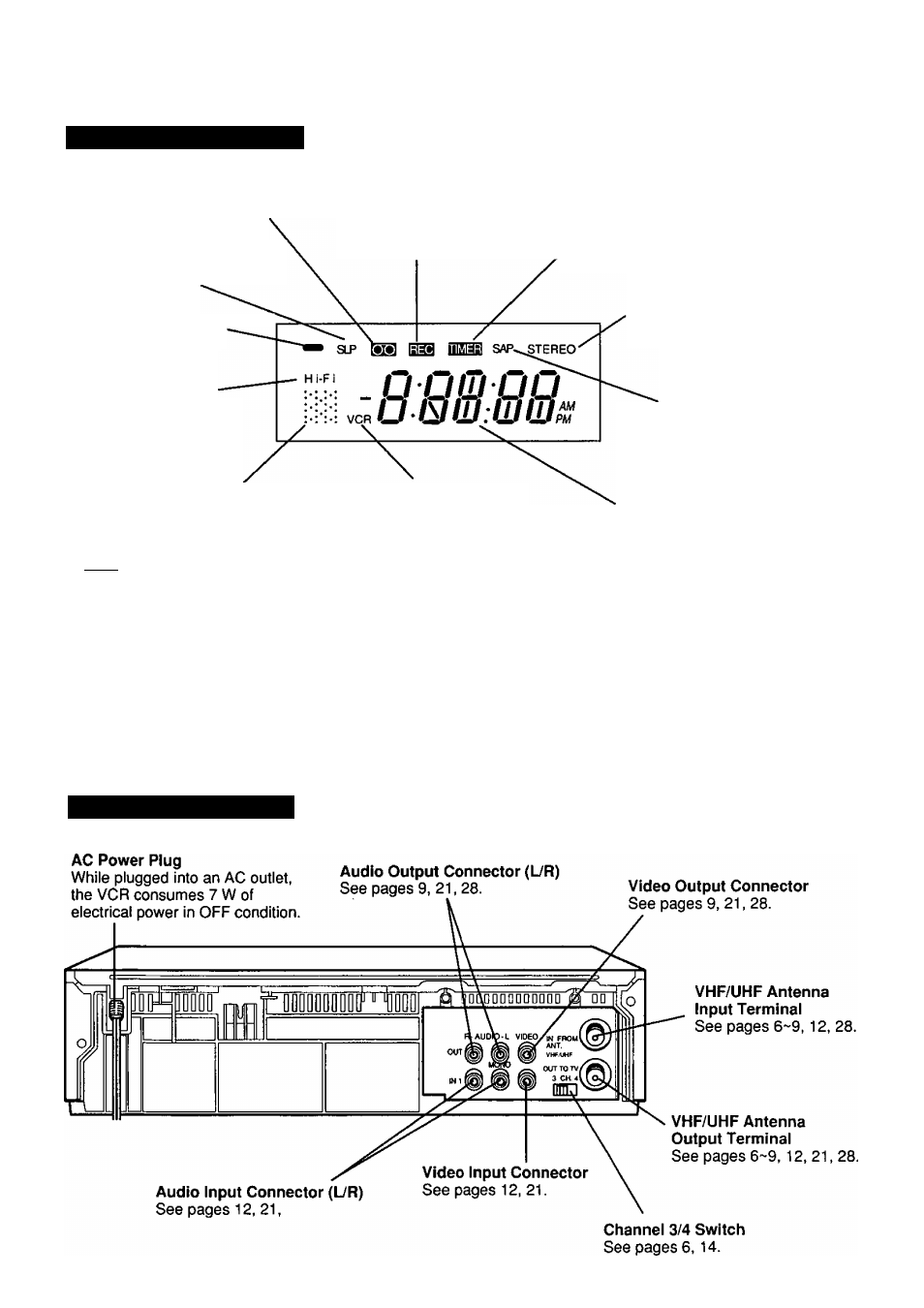

Multi Function Display

Cassette-In Indicator

Lights when a tape is in

the VCR.

SPEED Display

Displays the recording speed.

Power Indicator

Lights when power is on.

REC(ord) Indicator

Lights during recording.

Hi-Fi indicator

Lights when Hi-Fi audio is
monitored or played back.

Function Indicator

Shows what the VCR is doing.

RECl and ► Record

Record-pause

Playback

Slow motion or Frame advance

Play-pause
Rewind or Rewind search

Fast forward or Forward search

Cassette ejecting

VCR Indicator

Lights when the VCR/TV

selector is set to VCR.

RECl and 11

►

Flashing

► Flashing

Flashing

Timer Indicator

Lights when the VCR is set for a Timer

Recording, or when a length is set for a

normal recording.
Flashes when a Timer Recording is set, but
a tape has not been inserted into the VCR.

STEREO Indicator

Lights when the station you are

tuned to is broadcasting stereo.

SAP Indicator

Lights when the station you are

tuned to is broadcasting SAP.

Clock/Status/Channel Display

Displays the current time.
Briefly displays VCR status when a

function button is pushed.

Briefly displays the channel number, or

“L1" or “L2” when a channel or line
input is selected.

Displays the tape counter during tape

operation.

Rear View of the VCR
