Conrmcti
You may need an outdoor antenna if you use this system in a
mountainous region or inside a reinforced-concrete building, etc.

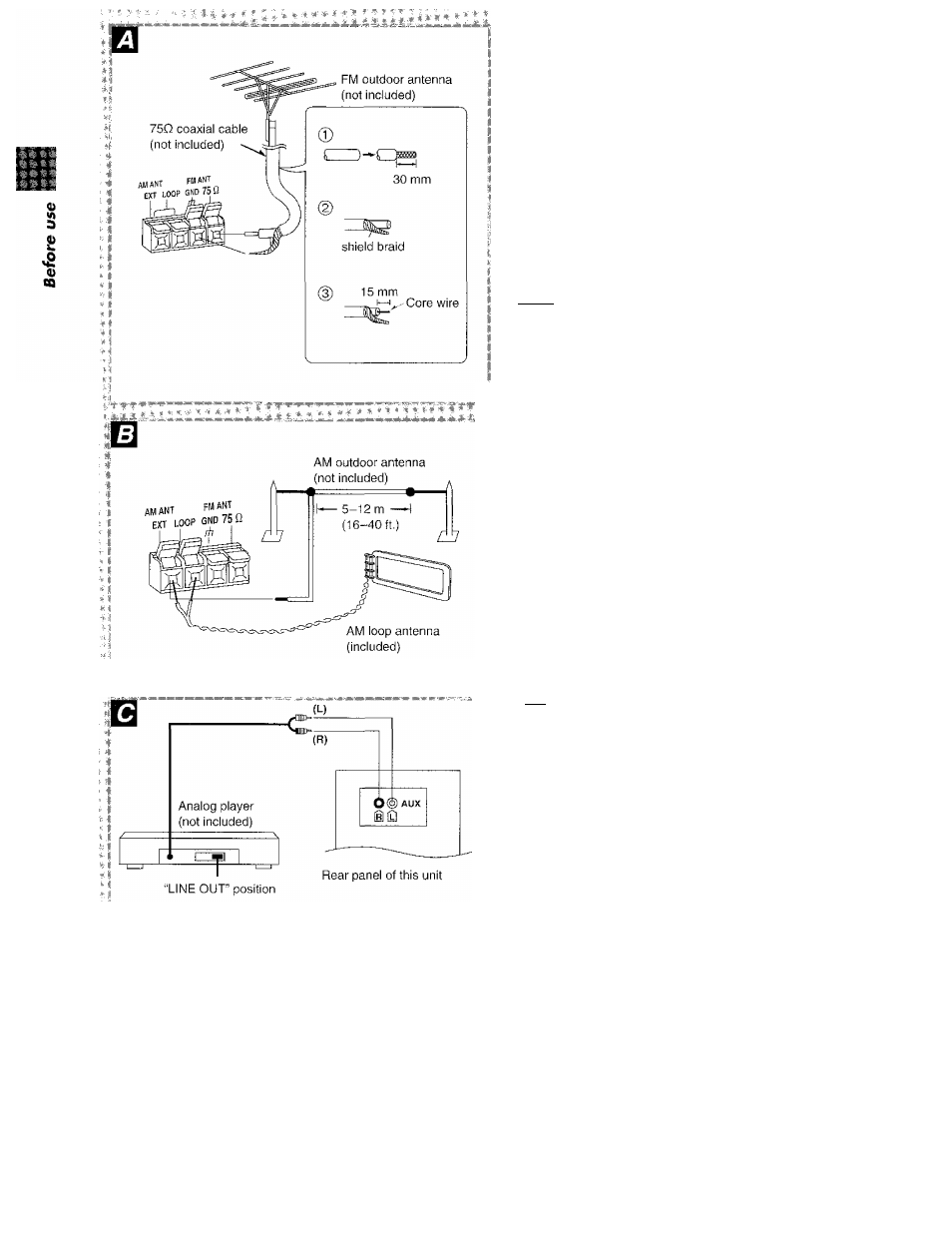

FM outdoor antenna
Ш
Disconnect the FM indoor antenna if an FM outdoor antenna is in
stalled.
(?) Remove a piece of the outer vinyl insulator.
(
2) Twist the shield braid.
@ Expose the core wire.
mm
An outdoor antenna should be installed by a qualified technician
only.
AM outdoor antenna
Ш
Connect the outdoor antenna without removing the AM loop anten
na. Run 5 to 12 m of vinyl-covered wire horizontally along a window
or other convenient location.
When the unit is not in use, disconnect the outdoor antenna to pre
vent possible damage that may be caused by lightning. Never use
an outdoor antenna during an electrical storm.
■
• For details, refer to the instruction manuals of the units which are
to be connected.
•When units other than these are to be connected, please consult
with your audio dealer.
This example shows how to connect an analog player with a
PHONO OUT/LINE OUT switch.
E
идя
• Only analog players with built-in phono equalizers can be con
nected.
• Set the switch on the back of the analog player to “LINE OUT”.
This unit has Dolby Pro Logic circuitry. If the audio output of video
equipment is connected to the AUX terminal of this unit, the sound
will be reproduced with the same powerful stereophonic effects
tound In movie theaters (•■ page 30).
Laser disc
player (not included)
о о
R L
AUDIO OUT
(L)
(R)
Rear panel of this unit
