4)
v>
3
S
Q)
BQ
¡ir

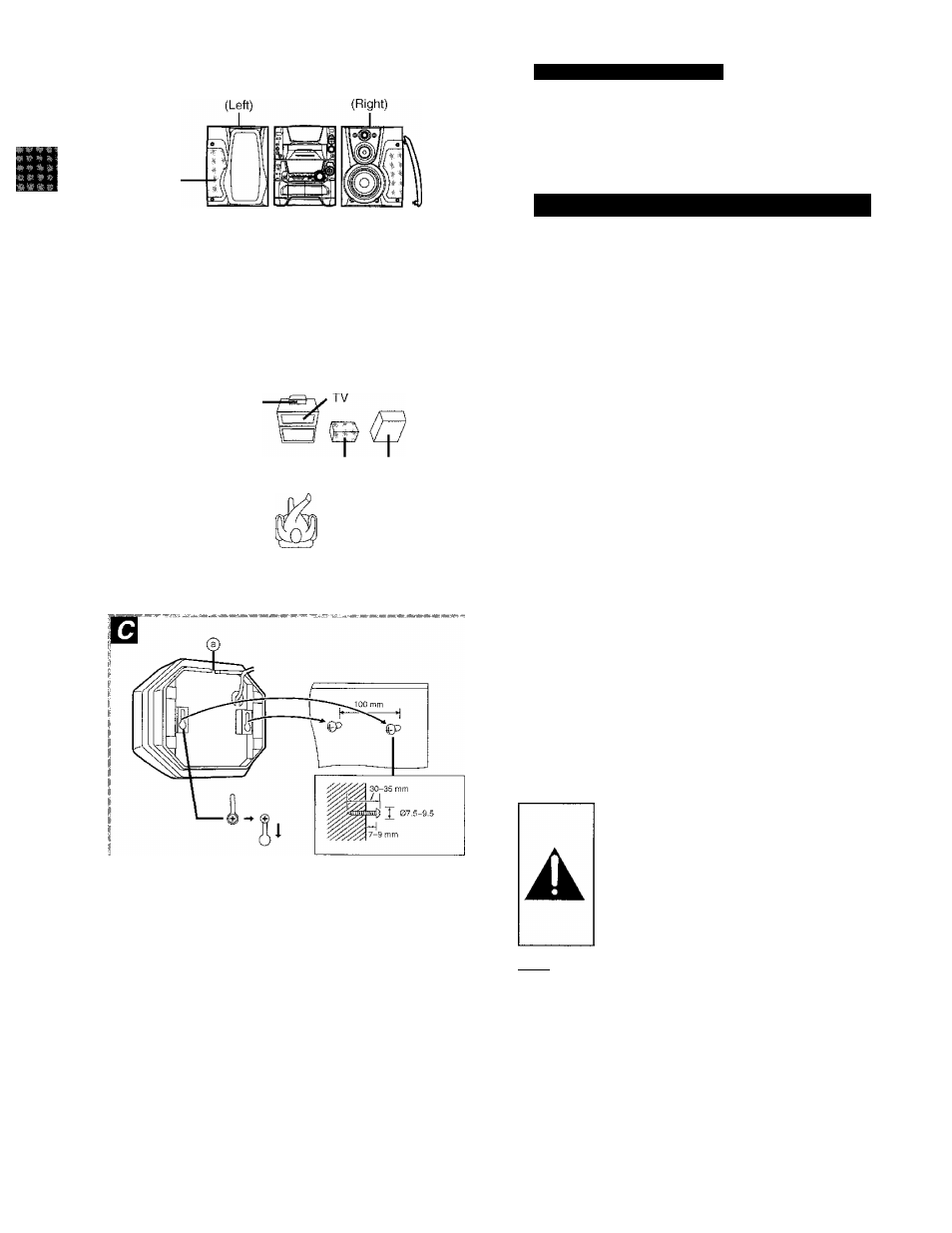

illi iiiMiiiSllili-i* Placement of speakers
Super-
woofer
B
Center
speaker
Front speaker (Left)
Surround speaker (Left)
Main unit Front speaker
(Right)
I
I *
I *
I »
I «
Surround speaker (Right)
For your listening pleasure, keep your speakers from touching the
system.
^ Place the speakers so that the superwoofer is on the outside. H
Nacement of cetiter/suir^ml speakers | El
Center speaker
Place the center speaker above or below the television, as close to
the television as possible.
Surround speakers
As well as enjoying normal stereo reproduction with the left and
right front speakers, surround speakers can also be connected to
the system in order to enjoy a feeling of depth and movement of
sound.
Check the L (Lett) or R (Right) channels indication on the underside
of the speakers for correct placement. Place the speakers with the
Panasonic logo facing toward the listening position.
We recommend that surround speakers be placed on the side of or
slightly behind the listener at ear level.
However the position should be adjusted to your personal prefer­
ence, because the effect varies to some degree depending upon the
type of music and the music source.
Attaching to a wail B
Set speaker onto screws and slide through bracket to lock into po­
sition.
The wall or pillar on which the speaker systems are to be attached
should be capable of supporting a weight of 5 kilograms.
For your reference
To fix the wire feed it through slit @ in the speaker.
Caution
Use the speakers only with the recommended
system. Failure to do so may lead to damage to
the amplifier and/or the speakers, and may
result in the risk of fire. Consult a qualified
service person if damage has occurred or if
you experience a sudden change in per­
formance.
if IB a
The front speakers (and center speaker) are made so they can be
used in close proximity of a TV, but irregular coloring may result due
to how the system is placed. If such distortion occurs, turn off the
TV for between 15 and 30 minutes. The demagnetizing function of
the TV will eliminate the distortion. If the irregular coloring is still visi­
ble when the TV is turned on again, move the speakers further
away from the TV.
