Connections

This section shows you how to connect the
VCR to an aerial, TV, etc.

When the VCR is turned on after unpacking and
connecting the aerial cable and the mains lead,
Plug in Auto Tuning starts automaticaity.
(NV-HD620EA only)

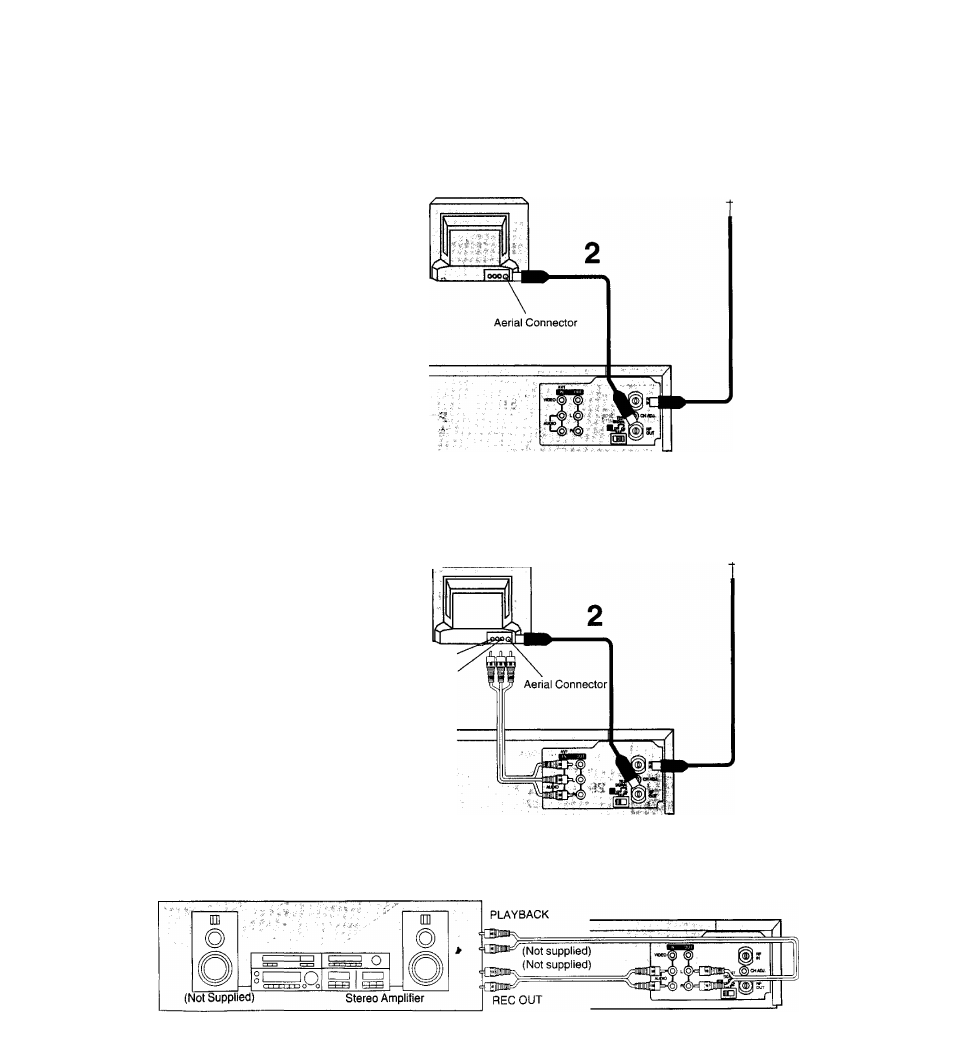

Basic Connections

The following connections are required to record

and play back the video cassette through the TV.

fsE

TV (Not supplied)

Aerial

(Not supplied)

To mains supply

Connection to a TV using the Audio/Video Input Sockets

TV (Not supplied)

4____

Note:
Set RF OFFH'EST SIGNAL to RF OFF when the

VCR is connected to the TV via the AudioA/ideo

cable.

(NV-HD620A only)

AUDIO IN

VIDEO IN

To main supply

•Connection to a Stereo Amplifier

Aerial

(Not supplied)
