KLN 89/KLN 89B Pilot’s Guide Basic GPS Operation
3-57
Basic GPS Operation
Chapter 3
nearest VOR to the user waypoint. The reference waypoint may be
changed by the pilot. However, once you leave this page and come
back, the reference waypoint reverts back to a nearby VOR.
Line 3: The magnetic radial from the reference waypoint to the user
waypoint.
Line 4: The distance from the reference waypoint to the user way-
point.
3.11.5.4. The User 3 (USR 3) Page
See figure 3-165.
Line 1: The identifier of the user-
defined waypoint; an arrow precedes
the identifier if it is the active waypoint.
Lines 2-4: The pilot-entered remarks for the user waypoint. Three
lines of 14 characters each are available for the remarks. Up to 100
waypoints may include remarks. Letters, numbers, hyphens, and
spaces may be used in the remark. If no remarks have been entered
for the user-defined waypoint, line 2 will display [Remarks].
To enter a user-defined waypoint
remark on the USR 3 page:
1. Turn on the cursor and move it
until the cursor fills line 2 of the
screen (figure 3-166).
2. Select the desired character, if
any, and move the cursor to the
next character on the line
(figure 3-167).
3. Repeat step 2 as necessary.
4. Press
F
to approve each line
of remarks. The cursor will
automatically move to the next
line (see figure 3-168).
5. Turn the cursor off when you are
finished creating the remark.
The Other 5 (OTH 5) page is a list of waypoints with associated
remarks. Sometimes these are deleted if there are more than 100
waypoints with remarks, or if the remarks are no longer relevant. If
you wish to delete a waypoint remark for a user-defined waypoint, see
section 3.14.2.
APT VOR NDB INT USR ACT NAV FPL CAL SET OTH
åå.ånm| WPTX
ееееее|GRASS STRIP
Leg|SOFT NORTH END
USR 3 |

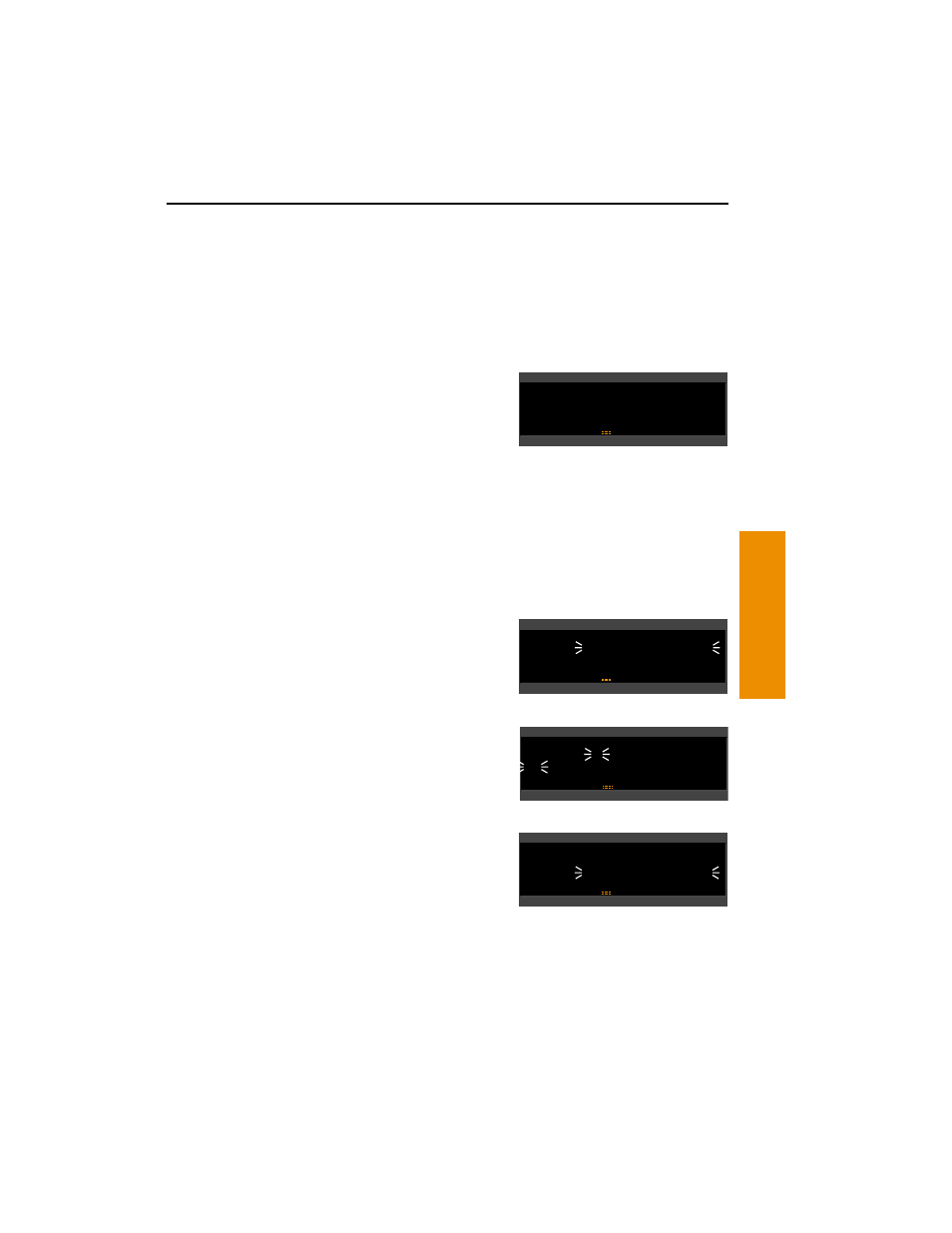

Figure 3-165
APT VOR NDB INT USR ACT NAV FPL CAL SET OTH
åå.ånm| WPTX
ееееее| [Remarks] «
Leg|
*CRSR*|
Figure 3-166
APT VOR NDB INT USR ACT NAV FPL CAL SET OTH
åå.ånm| WPTX
ееееее|G «
# Leg|
*CRSR*|
Figure 3-167
APT VOR NDB INT USR ACT NAV FPL CAL SET OTH
åå.ånm| WPTX
ееееее|GRASS STRIP
Leg| «
*CRSR*|
Figure 3-168
