KLN 89/KLN 89B Pilot’s Guide Data Base
2-7
Data Base Chapter 2
knob to select the SET 3 page
(figure 2-2).
NOTE: The database key is shown
on the SET 3 page for ORS 02 soft-
ware only.
5. Press
B
. Update Pub DB? will
now be flashing as in figure 2-3.
6. Press F . The estimated load
time in minutes is now displayed
(figure 2-4).
NOTE: In step 6, repeatedly pressing
E
will terminate the update process
and bring the display back to the orig-
inal SET 3 page shown in figure 2-2.
7. Press
F
to acknowledge the
estimated load time and begin
the erasing of the existing data
base. The unit will now display
Erasing data base. After the
data base has been erased, the
loading of the new data automati-
cally begins. As the new data is
being loaded, the percentage of
transfer is displayed (figure 2-5).
8. The KLN 89(B) will indicate when
the data base update is complete
as shown in figure 2-6. You may
either turn the KLN 89(B) off at
this point or press
F to restart
the KLN 89(B).
9. Remove the interface cable. Remove the disk from the computer.
Turn off the computer.
The chances are small of having difficulty updating the data base
but—
If you have a problem:
• First check that the interface cable is properly connected and that
the computer is turned on. If there is a problem with the connec-
APT VOR NDB INT USR ACT NAV FPL CAL SET OTH
åå.ånm| Programming
ееееее| data base
Leg| 95% complete
*CRSR*|

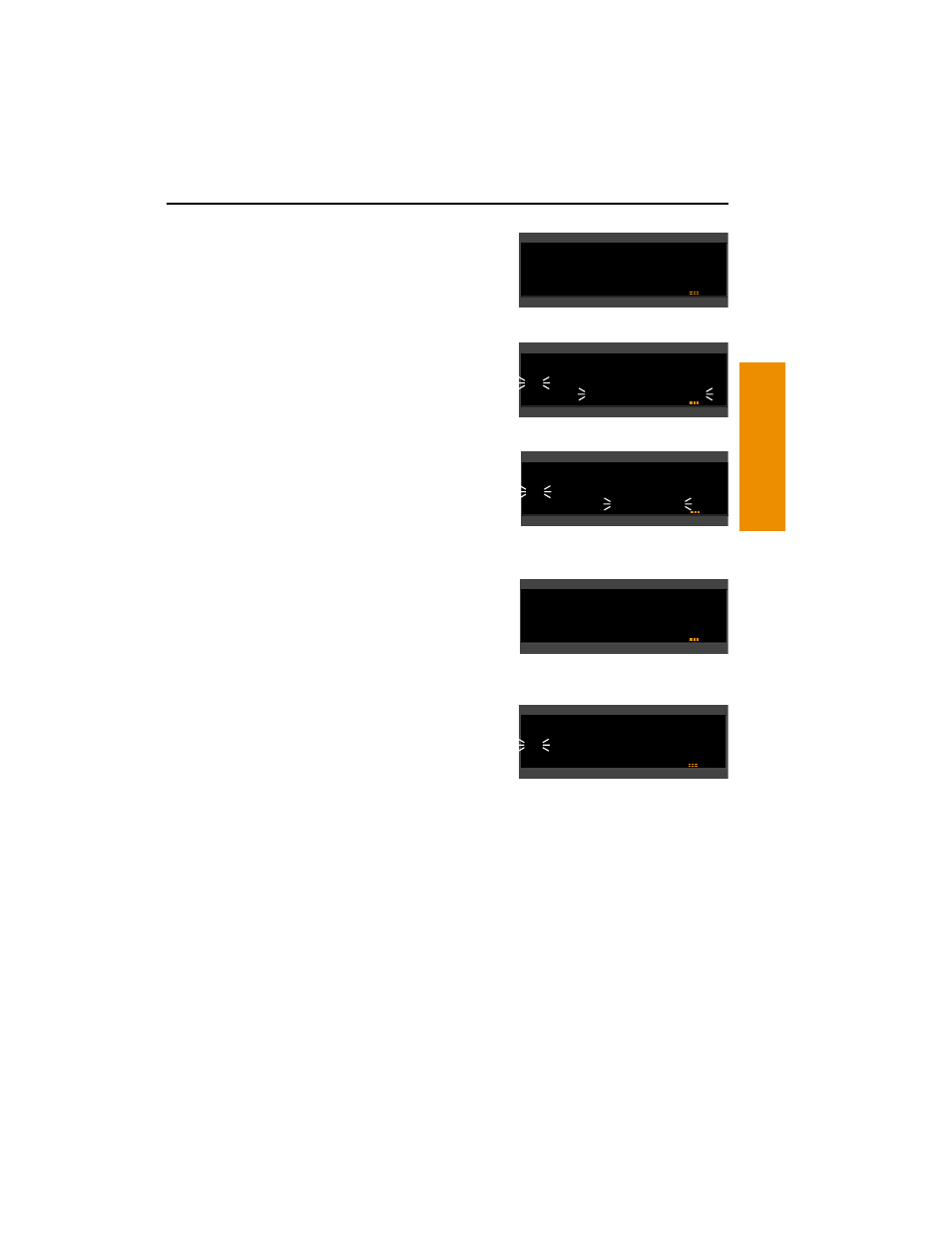

Figure 2-5
APT VOR NDB INT USR ACT NAV FPL CAL SET OTH
åå.ånm|Published data
ееееее| base update
# Leg| complete
*CRSR*| Acknowledge?
Figure 2-6
APT VOR NDB INT USR ACT NAV FPL CAL SET OTH
åå.ånm| Update DB on
ееееее| ground only:
Leg|Key E507FB92
SET 3 |Update pub DB?
Figure 2-2
APT VOR NDB INT USR ACT NAV FPL CAL SET OTH
åå.ånm| Update DB on
ееееее| ground only:
# Leg|Key E507FB92
*CRSR*|Update pub DB?
Figure 2-3
APT VOR NDB INT USR ACT NAV FPL CAL SET OTH
åå.ånm|Estimated load
ееееее|time: 5 min
# Leg|
*CRSR*| Approve?
Figure 2-4
