VOIP-500
Series Phone
Configuration and Operation Manual
Page 31 of 90
Copyright 2012 Talk-A-Phone Co.
• 7530 North Natchez Avenue • Niles, Illinois 60714 • Phone 773.539.1100 • [email protected] • www.talkaphone.com.
All prices and specifications are subject to change without notice. Talk-A-Phone, Scream Alert, WEBS and WEBS Contact are registered trademarks of Talk-A-Phone Co. All rights reserved.
4.6.5. Auxiliary Inputs
The Auxiliary Inputs configuration page configures the numbers to be dialed on activation of Auxiliary Input
devices.
Login → Devices → Auxiliary Inputs

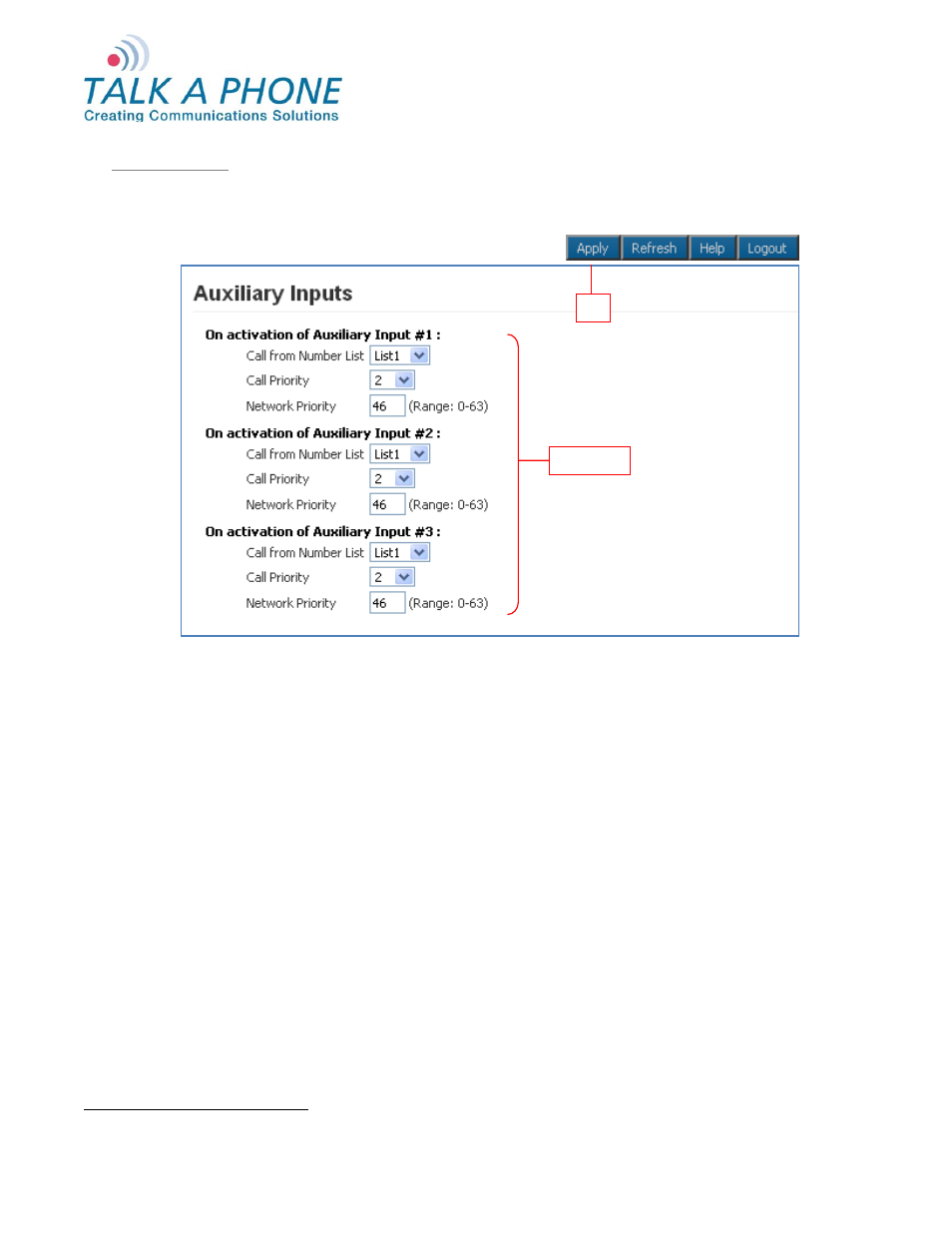

Figure 16 Auxiliary Inputs
To configure the auxiliary inputs:
1
Click the drop-down menu to assign the Number List. Numbers from the Number List are dialed in round
robin fashion when the corresponding Auxiliary Input is activated. Select None if this feature is not desired
upon activation of an Auxiliary Input.
2
Select the Call Priority. This parameter assigns a priority to the call that is generated upon activation of
the corresponding Auxiliary Input. A call with a “Call Priority” of 1 terminates all the existing calls having the
call priority in the range of 2
–10.
3
Select the Network Priority
8
to assign a network priority to the placed call. The value is utilized by the
network to prioritize the voice traffic. The default value is 46.
4
Click Apply to save settings.
8
Network priority is the same as Differentiated Services Code Point (DSCP). Do not change this unless absolutely required as it might
degrade the voice quality of the phone.
4
4
1, 2, 3
