Solar Kit Installation Instructions
Copyright 2013 Talk-A-Phone Co. • 7530 North Natchez Avenue • Niles, Illinois 60714 • Phone 773.539.1100 • [email protected] • www.talkaphone.com. Page 20 of 25
All specifications are subject to change without notice. Talk-A-Phone is a registered trademark of Talk-A-Phone Co. All rights reserved.

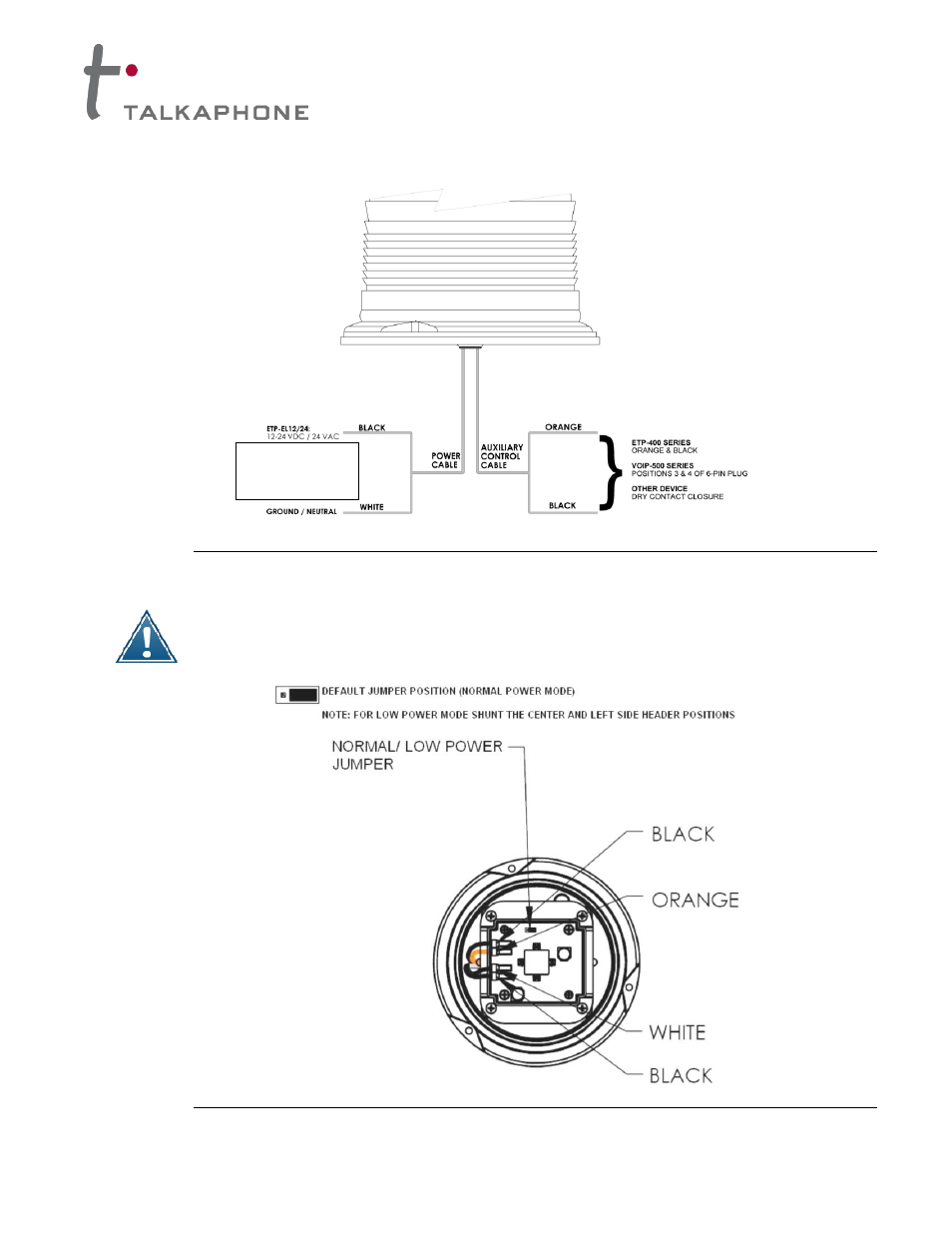

4. The LED Blue Light (as shown in Figure 29) and LED Panel Light power wires should be connected to
the “LOAD” terminals on the controller.
Figure 29. Electrical Connections to the ETP-EL 12/24 LED Blue Light
NOTE: TOWER PTS SOLAR is shipped with ETP-EL12/24 Series Blue Light in Low Power Mode
instead of default power mode as shown in Figure 30. For Solar applications the Blue Light
must operate in Low Power Mode.
Figure 30. Normal / Low power mode jumper inside LED Blue Light
Connect to LOAD
Terminals on the
Solar Controller
