Solar Kit Installation Instructions
Copyright 2013 Talk-A-Phone Co. • 7530 North Natchez Avenue • Niles, Illinois 60714 • Phone 773.539.1100 • [email protected] • www.talkaphone.com. Page 10 of 25
All specifications are subject to change without notice. Talk-A-Phone is a registered trademark of Talk-A-Phone Co. All rights reserved.
Steps 13 – 18 are for solar kit SLR-120-84 only. For solar kit SLR-80-84 complete steps 9-12 and
proceed to section V: Mechanical Installation

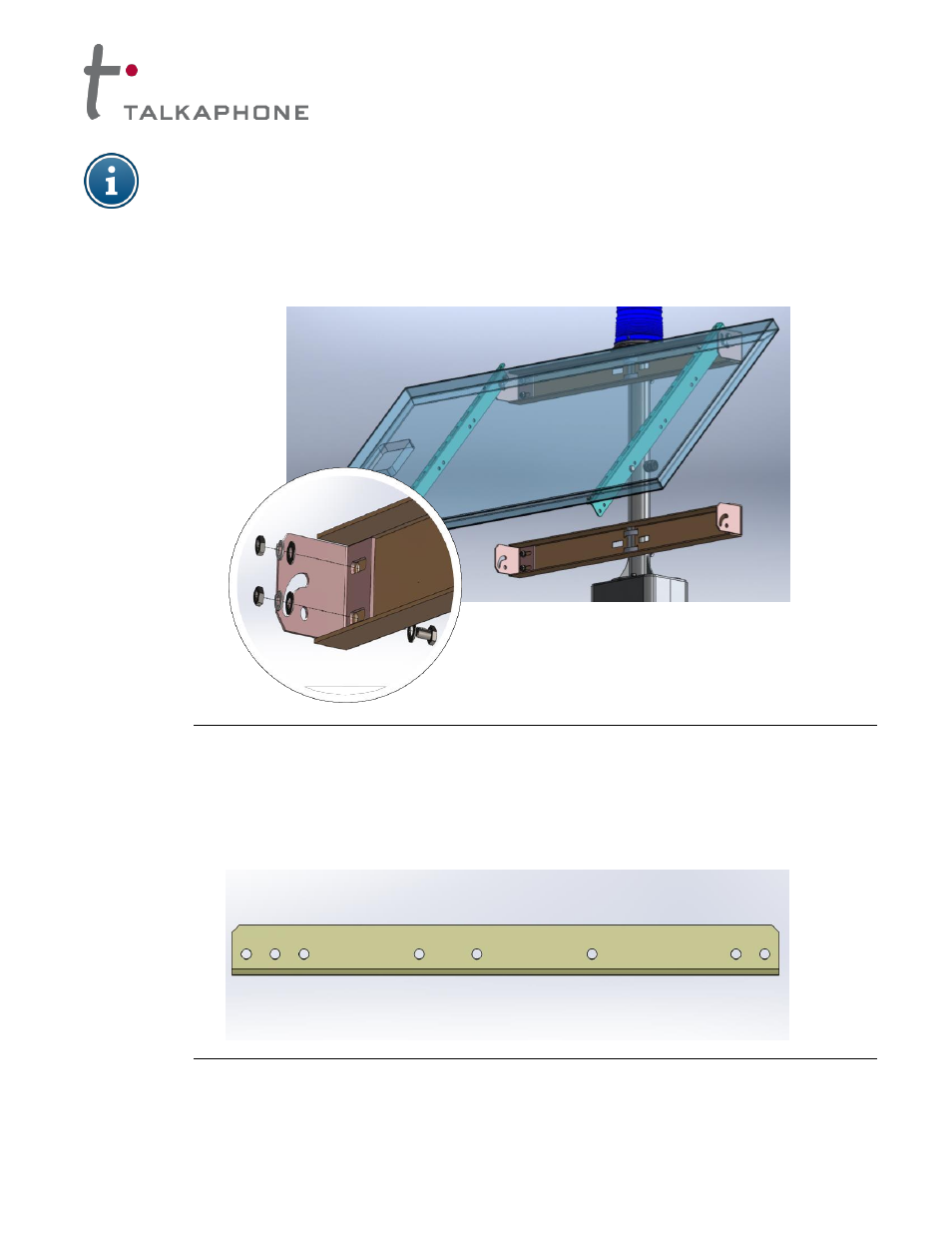

13. Bolt the remaining two clips to the lower bucket using the 5/16-18 x 3/4" bolt and flat washer on one end
and a flat washer with a lock washer under the nut on the other end as shown in Figure 15.
Figure 15. Installation of the clips to the lower bucket
14. The support rails will need to be customized based on the optimum tilt angle of the solar panel:
a. For optimum tilt angles of 40-45º, use the entire support rail as shown in Figure 16.
Figure 16. Support rail length for a solar panel with a tilt angle of 40-45º
