Page 9

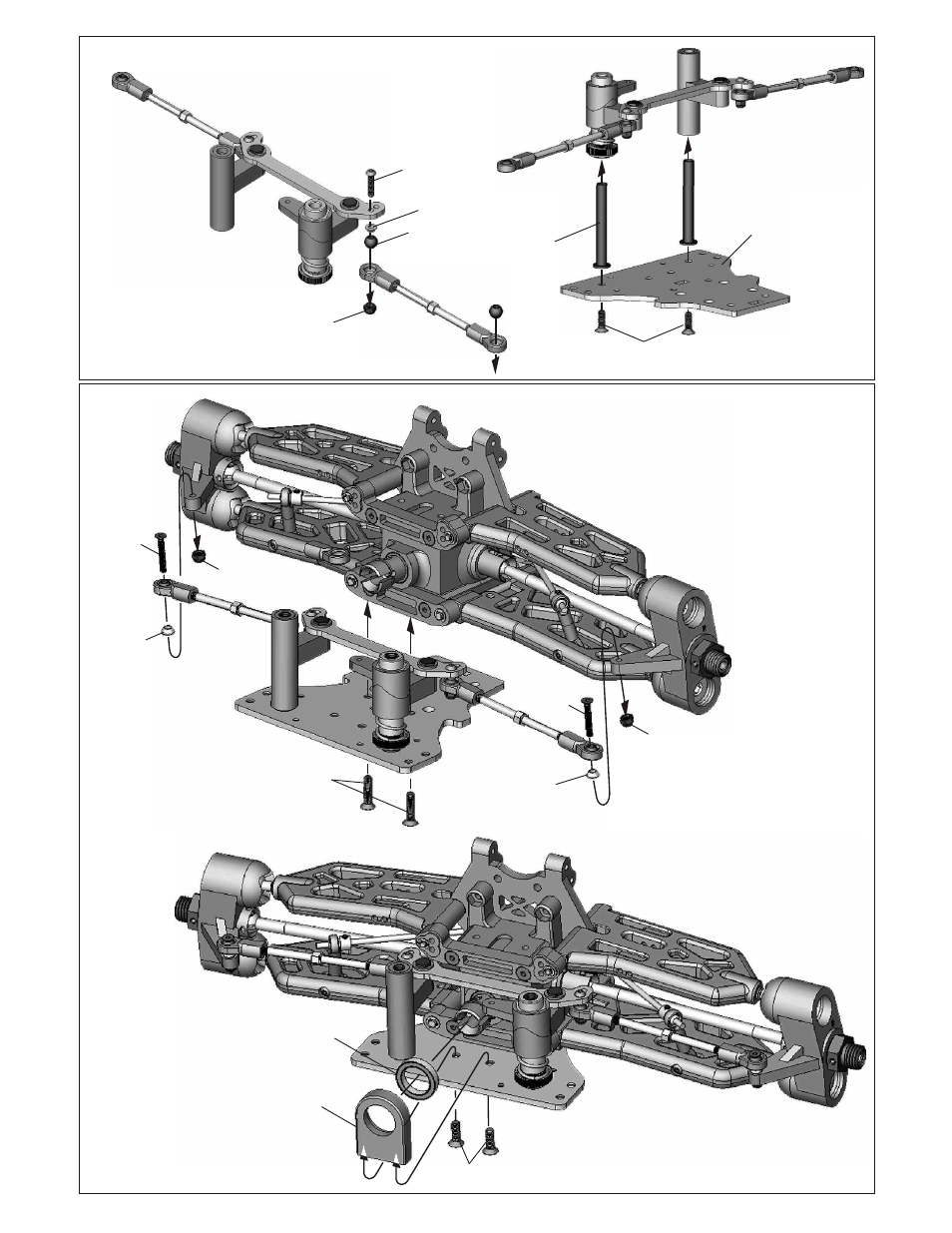

ASSEMBLY OF THE SERVO SAVER ONTO LOWER CHASSIS
3X16mm
Hex Screw
J-35
Alum.
Taper Washer
3mm
Nylon Nut
G-25
7mm Ball
M-34
Servo Saver
Post
4x12mm
Flate Head
Hex Screw
M-30
Lower Chassis
4x16mm
Flat Head
Hex Screw
M3
Nylon Nut
M3
Nylon Nut
J-35
Alum.
Taper Washer
J-35
Alum.
Taper Washer
3x18mm
Flat Head
Hex Screw
3x18mm
Flat Head
Hex Screw
4x12mm
Flat Head
Hex Screw
MW-03
Cap Joint
Support Mount
MW-05
15x21x4mm
Ballbearing
