Assembly of the front servo and center diff. mount – OFNA Racing Titan Twin User Manual

Page 12

Assembly of the left and right hand side
are the same.

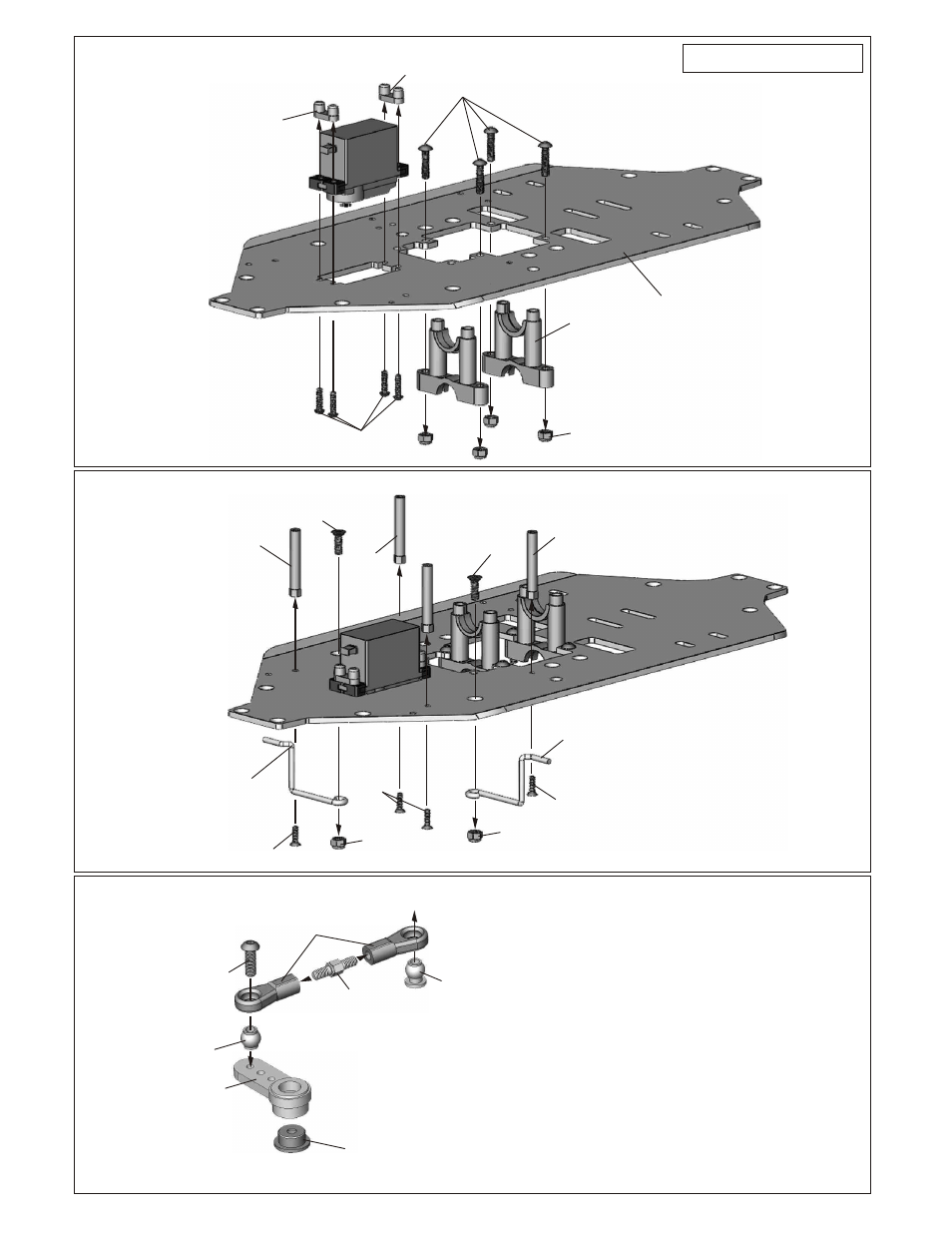

ASSEMBLY OF THE FRONT SERVO
AND CENTER DIFF. MOUNT

3x10mm
Hex Screw

4x16mm
Hex Screw

M4
Nylon Nut

J-27
Servo Mount

M-06
Center
Diff. Mount

4x10
Flat Head
Screw

3x10mm
Flat Head
Tapping
Screw

ML-07
Muffler Stay

ASSEMBLY OF THE MUFFLER STAY

ASSEMBLY OF THE STEERING ROD

3X10mm
Hex Screw

E-21
3x15mm
Turnbuckle

E-37
6mm
Ball & Socket

A-41A
6mm
Ball

#312
Steering
Servo Horn

#154
6mm
Plastic
Ball End

#312
Servo Horn
Adapter

MW-01
Chassis
(For twin engine)

F-12A
Alum. Post

F-12A
Alum.
Post

F-12A
Alum. Post
