Page 17

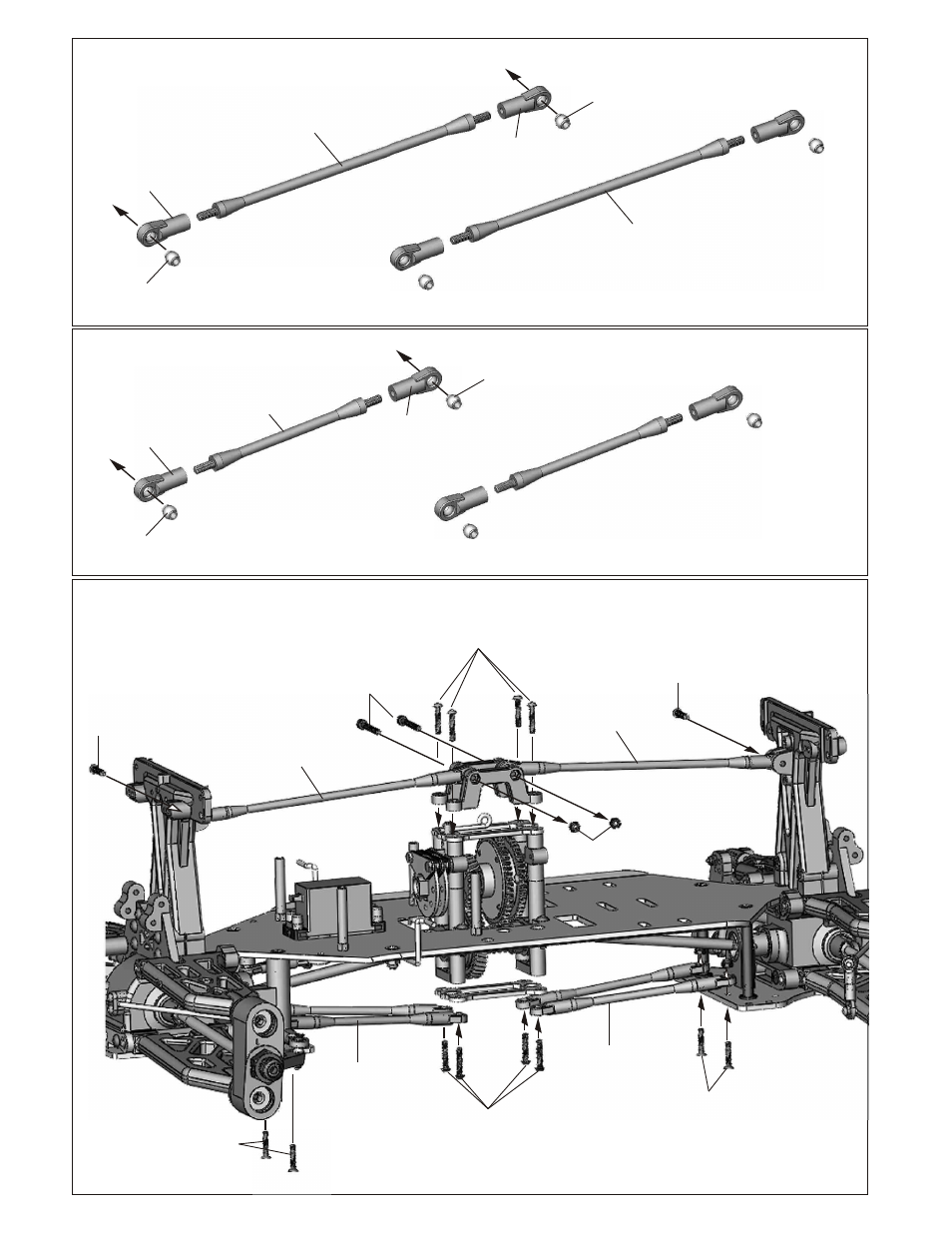

ASSEMBLY OF THE UPPER CHASSIS BRACE

ML-01
170mm
Chassis Stiffener

A-41A
6mm Ball

#152
6mm Plastic
Ball End

* Make two upper stiffener for front and rear.

ASSEMBLY OF THE LOWER CHASSIS STIFFENER

ML-02
74.8mm
Lower Chassis
Stiffener

3x16
Hex Screw

3x15
Flat Head
Hex Screw

3x25
Hex
Cap Screw

M3
Nylon Nut

3x16
Hex Screw

Upper Stiffener
Assembly

Lower
Chassis Stiffener
Assembly

ASSEMBLY OF THE STIFFENER INTO CHASSIS
