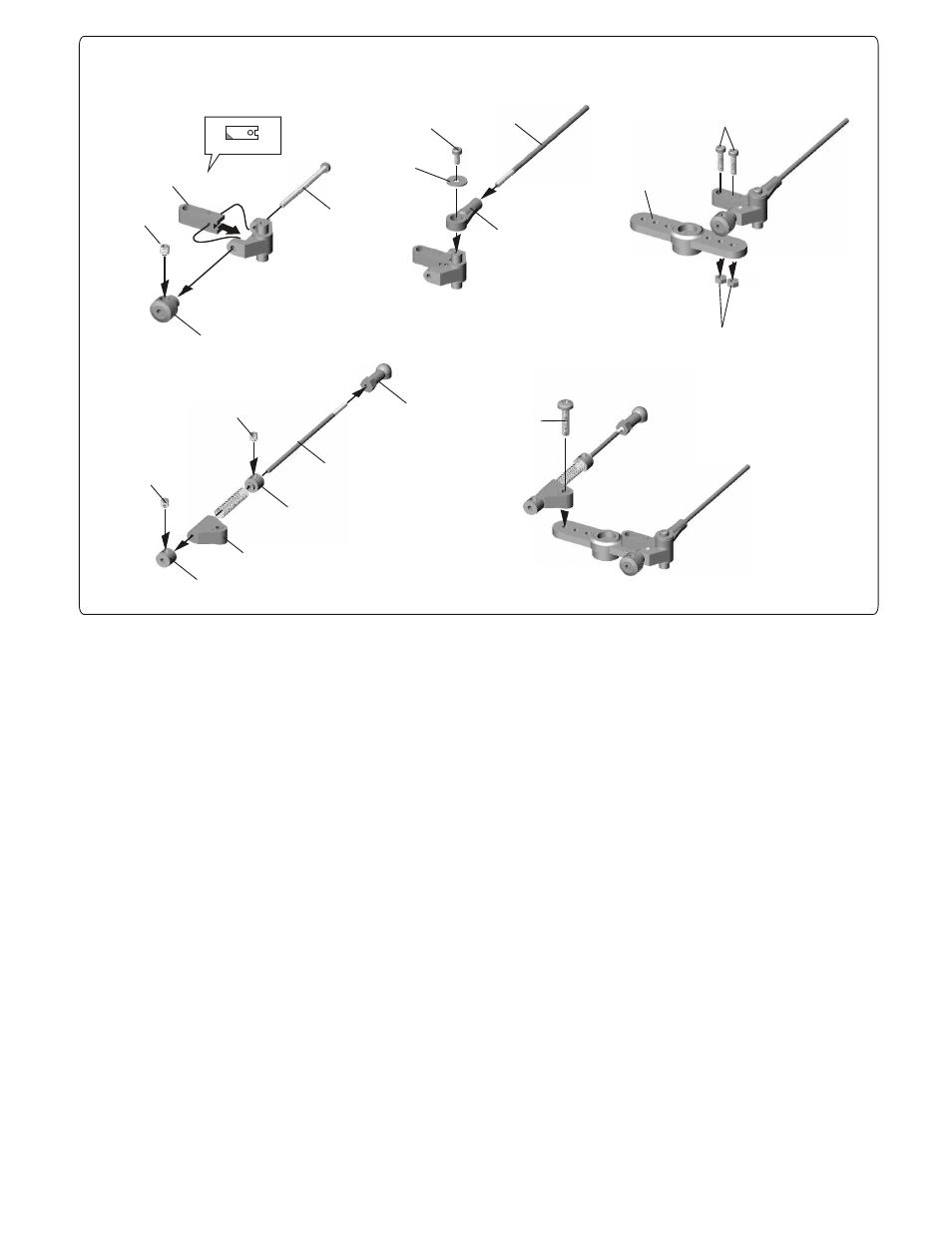

ASSEMBLY OF THE BRAKE LINKAGE
Servo
Mount
* Cut the shaded
area as shown.
3x3mm
Set Screw
3x3mm
Set Screw
3x3mm
Set Screw
36140
2mm
Adjust Mount
3x25mm
Screw
2x4mm
Screw
2x6mm
Washer
2mm
Tie-Rod
End
2mm Rod
2x8mm
Screw
2mm
Nut
Throttle
Slider
2mm
Rod
10300
Alum.
Stopper
10300
Alum.
Stopper
30530
Throttle
Ball End
3x10mm
Screw
10768
Servo Horn
30800 - SERVO LINKAGE KIT, COMPLETE
