OFNA Racing Titan Twin User Manual
Page 23
5x10
Hex Screw
5x10
Hex Screw
ML-03
Alum
Side Plate
4x16mm
Hex Screw

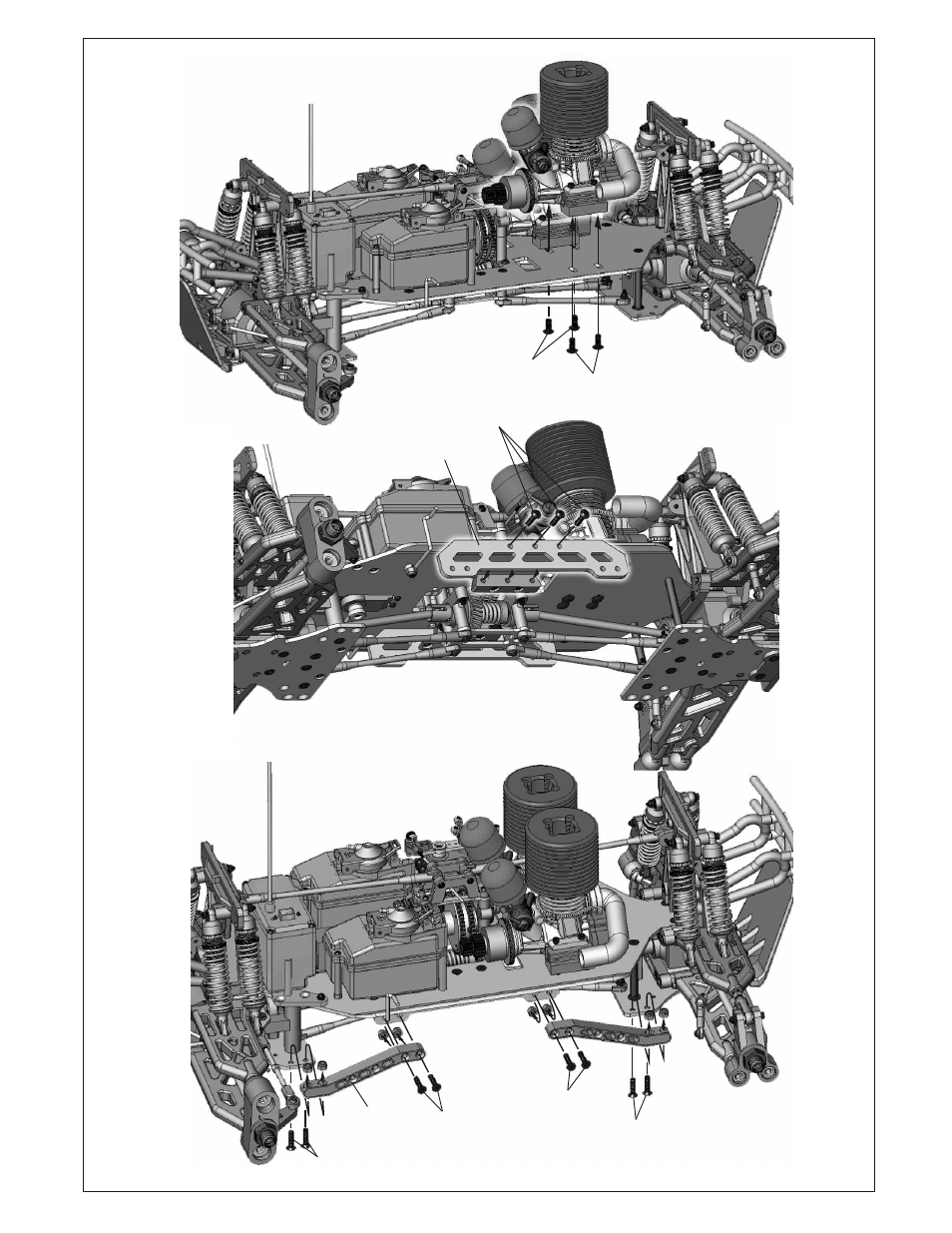

ASSEMBLY OF THE SIDE PLATE
ASSEMBLY OF THE CHASSIS STIFFENER
ASSEMBLY OF THE ENGINE ONTO CHASSIS
4x18mm
Flat Head
Screw
4x18mm
Flat Head
Screw
4x16mm
Flat Head
Hex Screw
4x16mm
Flat Head
Hex Screw
M4
Nylon Nut
M4
Nylon Nut
M4
Nylon Nut
M-06
Plastic Side
Chassis Brace
