Page 11
Assembly of the left and right hand side
are the same.

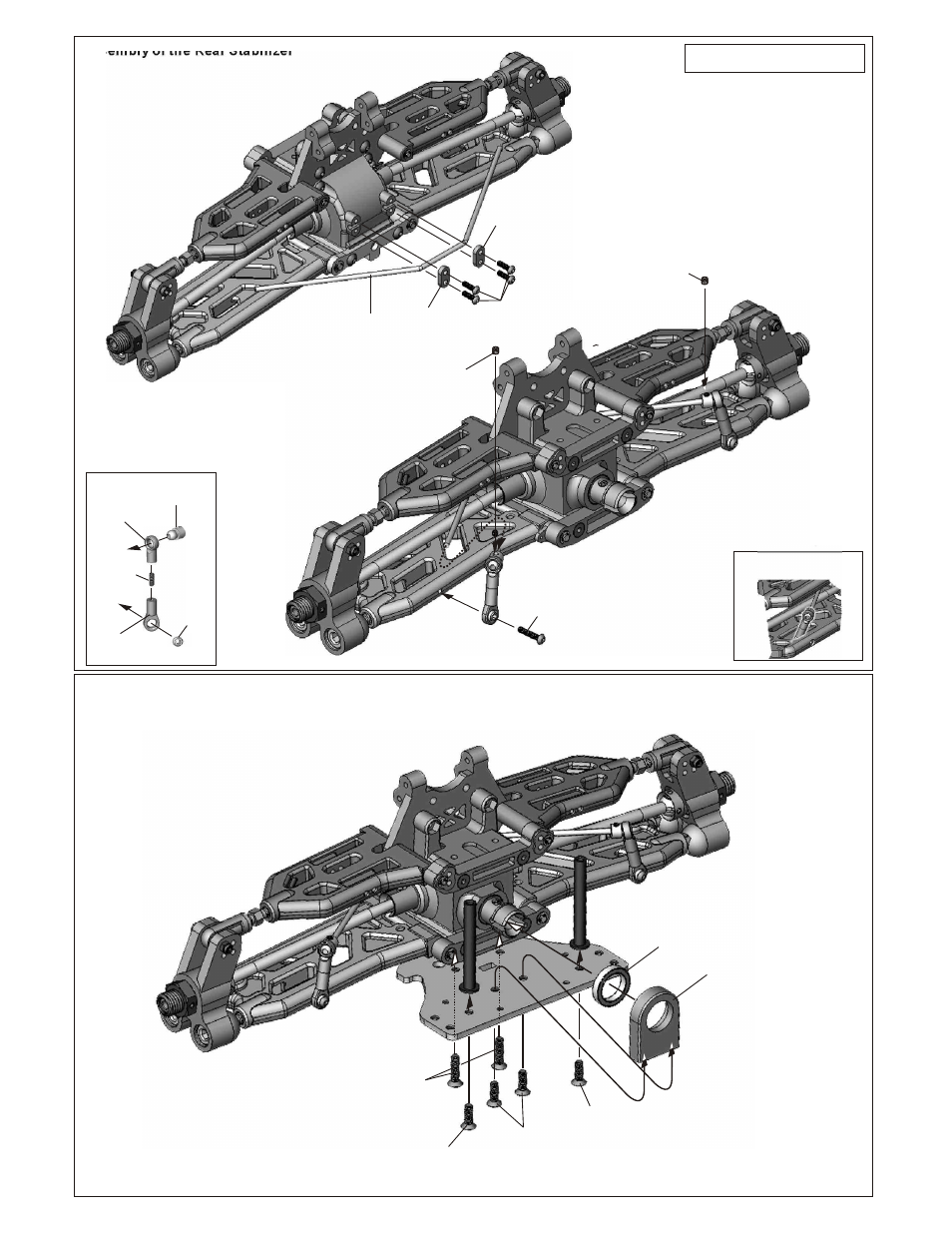

Assembly of the Rear Stabilizer
MP-06
Stabilizer
J-13A
Stabilizer
Holder
J-13A
Stabilizer
Holder
A-34B
StabilizerBall
J-25
Stabilizer
Ball End
A-41
6mm
Ball
M3x8mm
Set Screw
3x3
Set Screw
3x3
Set Screw
Put the stabilizer rod
into lower arm as shown.
3x20mm
Screw
#154
Stabilizer
Ball End(Long)
3x10mm
Hex Screw
ASSEMBLY OF THE CAP JOINT SUPPORT MOUNT
AND POST
4X12mm
Flat Head
Hex Screw
4X12mm
Flat Head
Hex Screw
4X16mm
Flat Head
Hex Screw
4X12mm
Flat Head
Hex Screw
MW-05
15x21x4mm
Ballbearing
MW-03
Cap Joint
Support Mount
